Spectra Class SL-128/80 AA Printhead (80 pL)
- Write a review
$462.00
The Spectra SL-128/80 AA printhead is a high-performance, durable industrial printhead, optimized for solvent, UV, and oil-based ink applications.

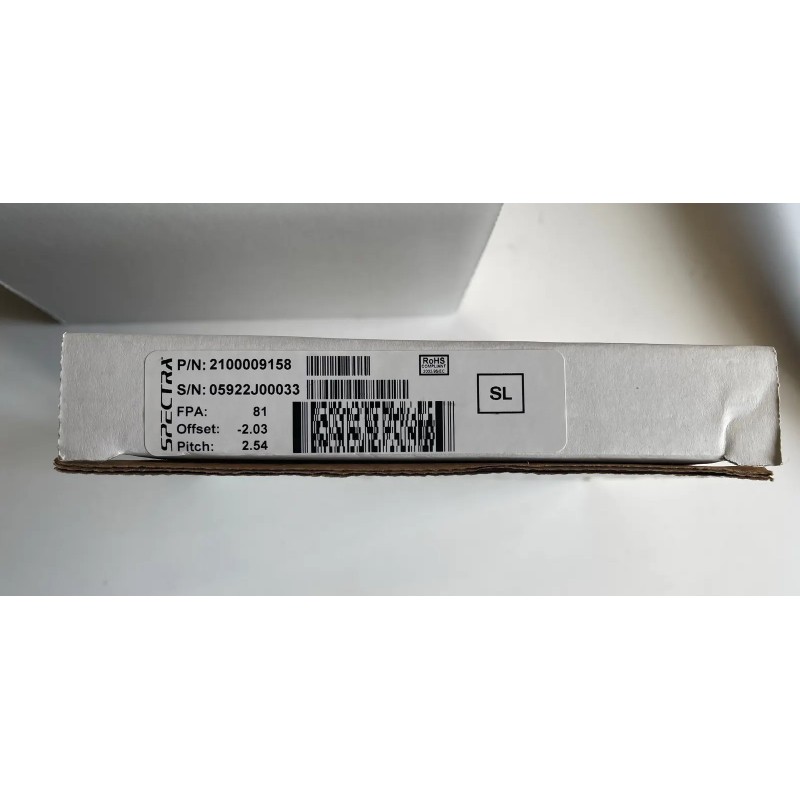

Genuine OEM Spectra SL-128/80 AA Printhead
Fujifilm Dimatix / Spectra • 128 Nozzles • 80 pL • Solvent & UV
Product Overview
The Genuine Spectra SL-128/80 AA is a high-performance, compact piezoelectric drop-on-demand jetting assembly manufactured by Fujifilm Dimatix under the Spectra brand. Designed for industrial and commercial printing applications requiring multiple tightly packed printheads, it delivers reliable performance in wide-format graphics, packaging and high-speed production environments.
Featuring 128 individually addressable inline nozzles arranged in a single line at 508 µm spacing, the SL-128 AA is calibrated for an 80 picoliter native drop size (adjustable range 65–90 pL). It supports continuous operation at frequencies up to 30 kHz and is compatible with organic solvent and UV-curable inks. The lightweight, orientation-independent design makes it ideal for fast-moving multi-head carriage systems.
This genuine OEM printhead is widely used in Agfa Jeti, Infiniti, Keundo and related industrial platforms where durability, channel-to-channel uniformity and long service life are essential.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Spectra SL-128/80 AA Printhead |
| Manufacturer | Fujifilm Dimatix / Spectra |
| Exact Model | SL-128 AA (80 pL) |
| Model Family | Spectra S-Class 128 Series |
| Condition | 100% Genuine OEM Factory New |
| Ink Type | Organic solvents, UV-curable |
| Primary Application | Wide-format graphics, packaging, industrial production |
Technical Specifications
| Parameter | Specification |
|---|---|
| Technology | Piezoelectric Drop-on-Demand |
| Number of Addressable Jets | 128 (two independent 64-channel slices) |
| Nozzle Arrangement | Single line, inline |
| Nozzle Spacing | 508 µm (0.020 in) |
| Nozzle Diameter | 50 µm |
| Calibrated Drop Size | 80 pL |
| Adjustable Drop Range | 65 – 90 pL |
| Nominal Drop Velocity | 8 m/s |
| Maximum Operating Frequency | 30 kHz |
| Maximum Resolution | Up to 450 dpi |
| Operating Temperature Range | Up to 90 °C (194 °F) |
| Fluid Viscosity Range | 8 – 20 cP (at jetting temperature) |
| Ink Compatibility | Organic solvents, UV-curable |
| Dry Weight | Approximately 35 g |
| Design Features | Lightweight, highly stackable, orientation-independent, dual-ported |
S-Class 128 Family Comparison
| Model | Drop Size | Max Resolution | Typical Use |
|---|---|---|---|
| SE-128 AA | 30 pL | Up to 900 dpi | Fine detail / high resolution |
| SM-128 AA | 50 pL | Up to 600 dpi | Balanced speed & quality |
| SL-128 AA (This Product) | 80 pL | Up to 450 dpi | High-speed / high-coverage production |
Technical Precision & Operational Advisory
Installation must be performed by a qualified industrial printer technician following the printer manufacturer’s procedures.
- Power isolation: Completely power down the system and disconnect carriage power before connecting or disconnecting the printhead.
- ESD protection: Always use grounded anti-static wrist straps when handling the printhead.
- Fluid system: Flush and filter ink lines thoroughly before installation to prevent nozzle contamination.
- Ink verification: Confirm solvent or UV-curable ink chemistry matches the printer’s fluid system and the printhead’s approved viscosity range (8–20 cP).
- Non-returnable once exposed: Once installed or primed with ink, the printhead cannot be returned.
Compatible Models & Systems
The Spectra SL-128 AA is used in a range of industrial solvent and UV platforms. Compatibility depends on the original factory configuration of the printer (Agfa Jeti systems in particular may use SE-128, SM-128 or SL-128 variants). Always verify the existing head markings before ordering.
| Manufacturer | Compatible / Commonly Used Models |
|---|---|
| Agfa | Jeti 3300 / 3312 / 3318 / 3324 Solvent RTR Jeti 3324 AquaJet / UV RTR Jeti 3348 HSS / Galaxy / Jetspeed Jeti 5000 / 5024 Solvent & UV Jeti 1224 / 2030 / 3150 / 5048 UV series |
| Infiniti / Challenger | FY-6250SL |
| Keundo | SupraQ 3000 Bio, SupraQ 3300 PRO / DS / S |
| 3M | Virtu 3600 |
| Durst | Rho 700 (selected configurations) |
| Kodak | Versamark DS4350 (selected configurations) |
Note: Some listed platforms historically used different S-Class variants. Confirm the exact model stamped on the existing printhead before purchase.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original Fujifilm Dimatix / Spectra product. Each unit is inspected and sealed before shipment.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation documentation.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility before opening the sealed packaging.
