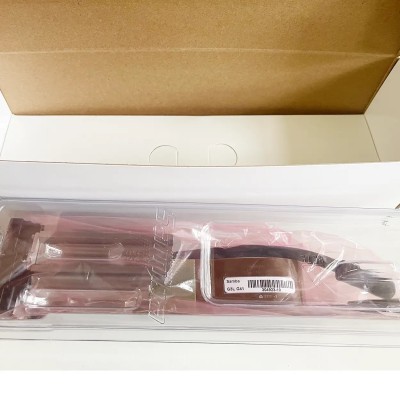

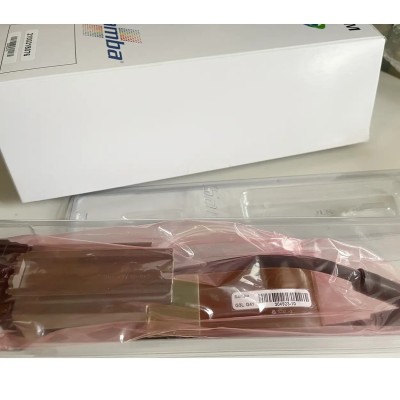

Fujifilm Dimatix Samba G3L Printhead (2100318076)
- Write a review
$2,113.00
The Dimatix Samba G3L Printhead is an advanced high-resolution printhead, engineered for industrial, textile, and commercial printing applications.

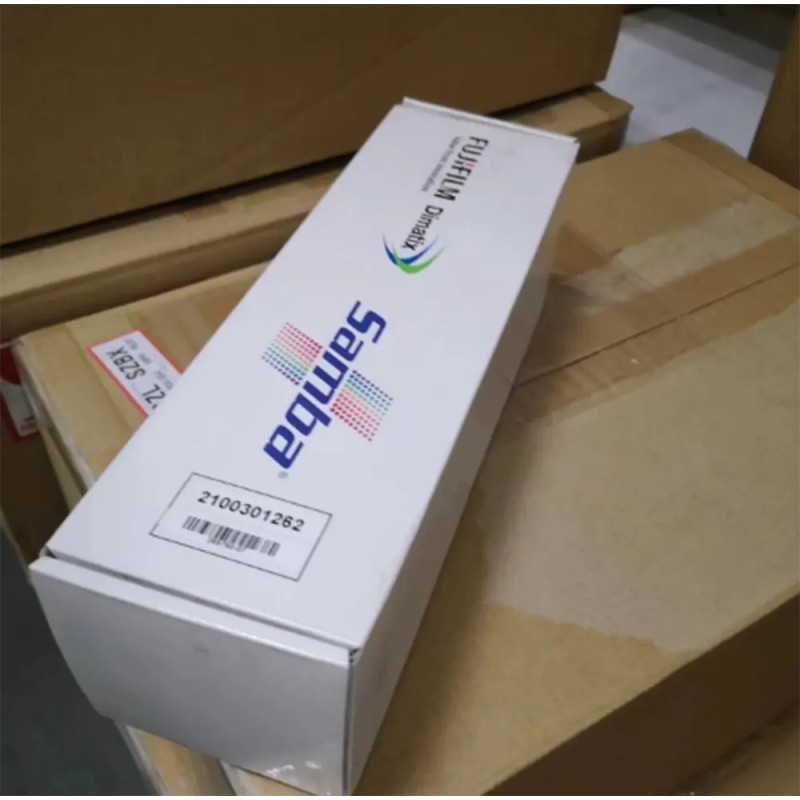

Genuine OEM Fujifilm Dimatix Samba G3L Printhead
Part Number 2100318076 • 2048 Nozzles • 1200 dpi Native • Si-MEMS Grayscale
Product Overview

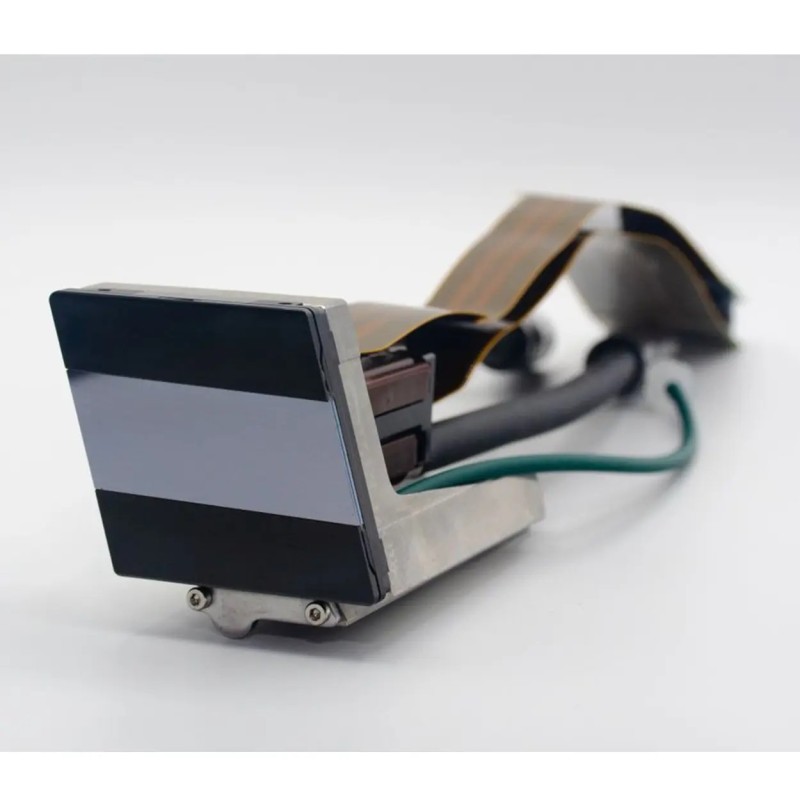

The Genuine Fujifilm Dimatix Samba G3L (Part Number 2100318076) is a high-performance Silicon MEMS (Si-MEMS) piezoelectric printhead designed for single-pass and high-speed industrial inkjet applications. Leveraging advanced silicon micro-electro-mechanical systems fabrication and sputtered PZT actuators, the Samba G3L delivers exceptional drop placement accuracy, uniform ink distribution and outstanding image quality at production speeds.
With 2048 individually addressable nozzles, a native resolution of 1200 dpi (600 dpi in redundant mode) and a native drop size of 2.4 picoliters (extendable via VersaDrop grayscale technology), the G3L is optimized for high-resolution graphics, labels, flexible packaging, textiles and specialty industrial printing. It features REDIJET continuous ink recirculation for reliable jetting and fast system start-up, and supports aqueous, UV-curable, solvent and latex inks.
The parallelogram shape enables compact in-line stitching for scalable printbar configurations, making the Samba G3L a preferred solution for demanding high-throughput environments requiring both speed and fine detail.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Fujifilm Dimatix Samba G3L Printhead |
| Manufacturer | Fujifilm Dimatix |
| Exact Model | Samba G3L |
| OEM Part Number | 2100318076 |
| Condition | 100% Genuine OEM Factory New |
| Technology Platform | Silicon MEMS (Si-MEMS) with sputtered PZT |
| Primary Application | High-resolution industrial, textile, label, packaging and commercial inkjet |
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Addressable Jets | 2048 per module |
| Print Width | 43 mm (1.7 in) per printhead (stitchable for wider arrays) |
| Native Resolution | 1200 dpi (600 dpi in redundant mode) |
| Native Drop Size | 2.4 pL |
| Largest Drop Size (VersaDrop) | Approximately 10–13.2 pL |
| Firing Frequency | Over 100 kHz |
| Nozzle Plate Technology | Silicon MEMS with protective REDIJET coating |
| Ink Recirculation | REDIJET continuous dual recirculation |
| Compatible Fluids | UV-curable, aqueous, latex, organic solvents |
| Viscosity Range (Highest Performance) | 4 – 8 cP |
| Operating Temperature | Up to 60 °C (140 °F) |
| Temperature Control | Fluid thermal transfer with integrated temperature sensor |
| OEM Accessible Memory | 64-byte rewritable non-volatile memory |
Key Technology Features
- Silicon MEMS Architecture — Precision nozzle geometry and sputtered PZT for long actuator life and excellent drop uniformity.
- VersaDrop Grayscale — Multi-level grayscale plus multi-drop capability for smooth gradients and high optical density.
- REDIJET Recirculation — Continuous ink recirculation for reliable jetting, reduced sedimentation and rapid start-up.
- Scalable Design — Parallelogram shape supports compact stitching for narrow to wide single-pass printbars.
Technical Precision & Operational Advisory
Installation and integration must be performed by qualified engineers following Fujifilm Dimatix and printer OEM procedures.
- Power isolation: Completely power down the system before connecting or disconnecting the printhead.
- ESD protection: Use grounded anti-static protection during all handling.
- Fluid system: Ensure clean, filtered ink supply and proper recirculation setup before jetting.
- Ink verification: Confirm viscosity (ideally 4–8 cP) and chemistry compatibility with the Samba G3L nozzle plate and coatings.
- Non-returnable once installed: Once the printhead has been installed or exposed to ink, it cannot be returned.
Compatible Models & Systems
The Samba G3L is used in high-end single-pass and industrial systems designed around Fujifilm Dimatix Samba technology. Compatibility is system-specific and must be verified against the printer’s original configuration and electronics.
| Manufacturer / Platform | Typical Application Areas |
|---|---|
| Fujifilm Dimatix-based systems | OEM single-pass and modular printbar solutions |
| Durst | High-performance label, packaging and industrial presses |
| EFI Reggiani | Advanced digital textile printing systems |
| SPGPrints | High-precision textile and industrial inkjet platforms |
| Kornit Digital | Direct-to-fabric and commercial textile systems (selected configurations) |
Always confirm exact part number, electronics interface and firmware compatibility with the printer manufacturer or authorized service provider before ordering.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original Fujifilm Dimatix product. Each unit is inspected and sealed before shipment.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation documentation performed by a qualified technician.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify full compatibility before opening the sealed packaging.
