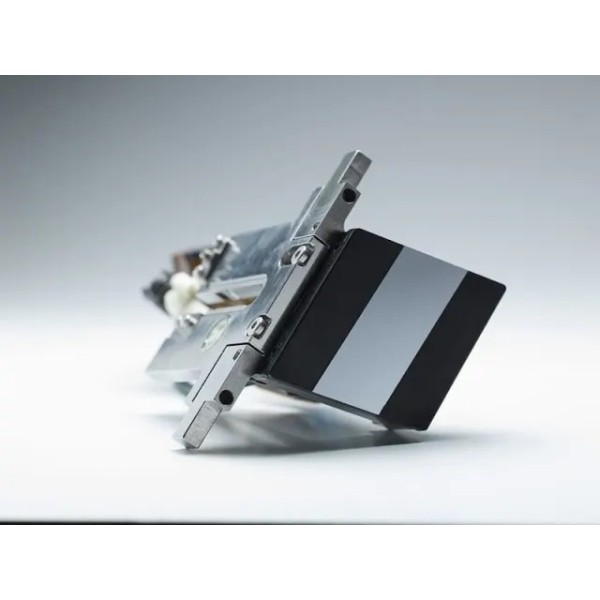

Fujifilm Dimatix Samba GMA 99 High-Viscosity MEMS Printhead
- Write a review
$3,353.00
The Fujifilm Dimatix Samba GMA 99 is a compact low-voltage full silicon MEMS piezoelectric drop-on-demand industrial printhead with 1152 addressable nozzles, native 5 pL drop volume adjustable via VersaDrop up to 18 pL, and continuous RediJet ink recirculation. Designed as the longer scanning variant of the GMA series, it delivers high-precision performance in textile, indoor signage, soft dye-sub signage, and high-quality UV printing using UV-curable, solvent, and aqueous inks, including higher-viscosity formulations.
Product Overview
The Fujifilm Dimatix Samba GMA 99 printhead is a high-performance industrial inkjet component based on advanced silicon micro-electro-mechanical systems (Si-MEMS) manufacturing. This longer scanning-focused variant of the Samba GMA platform features 1152 individually addressable nozzles at a native 300 dpi resolution (approximately three times the nozzle count of the GMA 33). It supports VersaDrop technology for binary and grayscale jetting, enabling adjustable drop sizes from the native 5 pL up to 18 pL without loss of productivity.
Part Information
| Product Name | Fujifilm Dimatix Samba GMA 99 High-Viscosity MEMS Printhead |
| Manufacturer / Brand | Fujifilm Dimatix |
| OEM Part Number / Reference | Samba GMA 99 |
| Condition | 100% Genuine Original, Brand New, Factory Sealed |
| Product Status | Active OEM Production / Grade A Standard |
Technical Specifications
| Parameter | Technical Value / Specification |
|---|---|
| Printhead Technology | Drop-on-Demand Piezoelectric - Full Silicon MEMS - RediJet Continuous Recirculation - VersaDrop Binary and Grayscale |
| Active / Total Nozzles | 1152 individually addressable nozzles |
| Native Drop Volume | 5 pL native to 18 pL VersaDrop adjustable |
| Maximum Firing Frequency | High-speed operation suitable for scanning systems (exact maximum frequency application-dependent) |
| Technical Details & Notes | Native Resolution: 300 dpi |
Master Comparison Matrix
| Model Variant | OEM Reference | Technology | Primary Application | Status |
|---|---|---|---|---|
| Fujifilm Dimatix Samba GMA 99 High-Viscosity MEMS Printhead (CURRENT PRODUCT) | Samba GMA 99 | Drop-on-Demand Piezoelectric - Full Silicon MEMS - RediJet Continuous Recirculation - VersaDrop Binary and Grayscale | Industrial Digital Printing | Active Genuine |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap during handling. Static charges can irreparably damage sensitive internal piezo actuators and driver circuitry.
- Power Isolation Protocols: Complete electrical power-down and discharge must be verified prior to disconnecting or reconnecting head ribbon cables. Never hot-plug printhead connections.
- Fluid & Meniscus Management: Ensure sub-atmospheric meniscus pressure and ink filtration levels meet exact OEM manufacturer tolerances prior to introducing ink to avoid flooding or starvation.
- Certified Technician Requirement: Physical mounting, head alignment, and voltage drive tuning must be conducted exclusively by trained industrial inkjet service engineers.
Compatible Models & Systems
| Manufacturer / Brand | Verified Compatible Models & Systems |
|---|---|
| Fujifilm Dimatix | Scanning industrial printers for textile applications requiring wider coverage |
Terms, Warranty & Customer Protection:
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
