Fujifilm Dimatix Spectra Polaris PQ-512/15 AAA Printhead (15 pL)
- Write a review
$781.00
The Genuine New Spectra Polaris PQ-512/15 AAA Printhead is an authentic 512-channel piezoelectric drop-on-demand assembly featuring a fine 15 pL calibrated native drop size (adjustable up to 30 pL via VersaDrop™), maximum resolutions up to 1000 dpi, and high-frequency 40 kHz firing for high-precision wide-format printing.

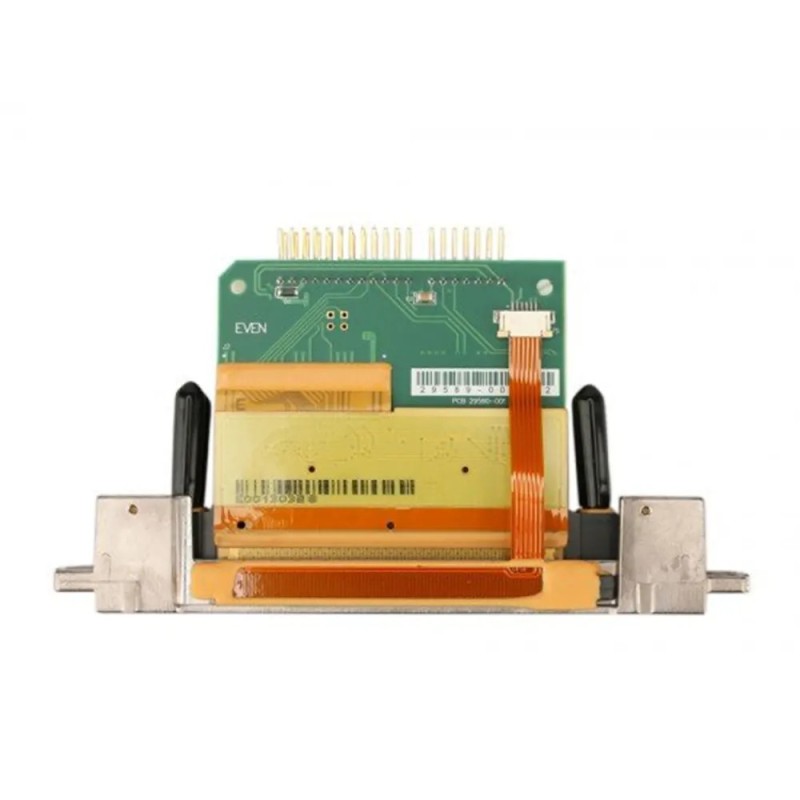

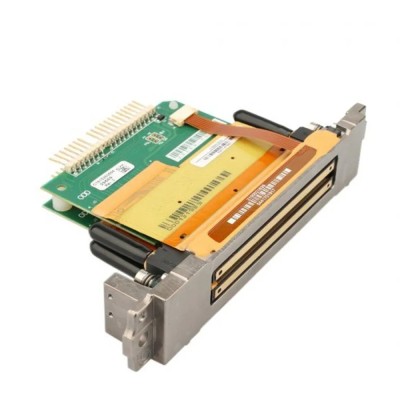

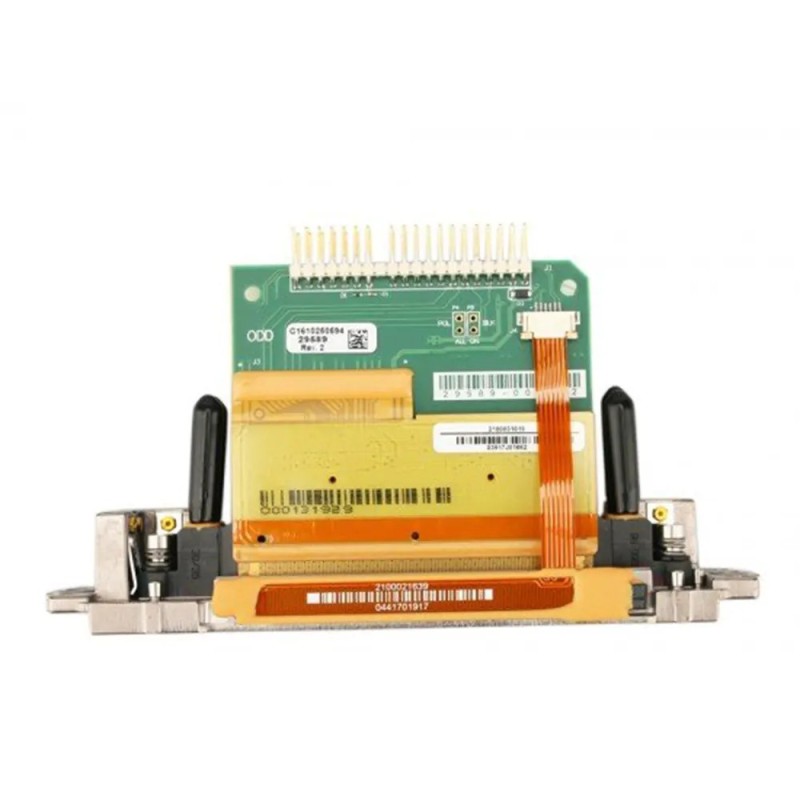

Genuine OEM Spectra Polaris PQ-512/15 AAA Printhead
Fujifilm Dimatix / Spectra • 512 Channels • 15 pL Native • VersaDrop™ • Up to 1000 dpi
Product Overview
The Genuine New Spectra Polaris PQ-512/15 AAA is an authentic factory-original industrial piezoelectric drop-on-demand (DoD) inkjet printhead manufactured by Fujifilm Dimatix under the Spectra brand. Built on the proven reliability of the Spectra Nova and Galaxy platforms and the Q-Class architecture, the Polaris PQ-512 AAA family employs field-proven materials and a repairable modular design to deliver long service life, high throughput, and exceptional drop placement accuracy.
Engineered for ultra-fine detail and high-definition output, the PQ-512/15 AAA features 512 independent addressable channels arranged in multiple rows. It supports single-color operation at 200 dpi nozzle spacing (127 µm) or two-color operation at 100 dpi spacing (254 µm), achieving maximum resolutions up to 1000 dpi. Utilizing Fujifilm Dimatix’s proprietary VersaDrop™ binary jetting technology, it delivers a calibrated native drop size of 15 picoliters (15 pL) at a nominal velocity of 8 m/s, with adjustable binary operation capable of producing droplet sizes up to 30 picoliters. Maximum firing frequency is 40 kHz for 15 pL drops and 25 kHz for 30 pL drops. The printhead supports fluid viscosities of 8–20 centipoise and operating temperatures up to 60 °C, accommodating UV-curable, organic solvent, and aqueous ink chemistries.
Key operational advantages include configurable 1-color or 2-color modes, field-replaceable 256-channel modules without special tools or recalibration, dual-ported fluid interfaces for priming, flushing and recirculation, integral mounting bezel with precision registration points, and built-in heaters with temperature sensors for precise viscosity control. These characteristics make the PQ-512/15 AAA the preferred genuine OEM replacement for high-resolution wide-format, UV flatbed and industrial printers requiring the finest detail and photorealistic image quality within the Polaris PQ-512 family.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Spectra Polaris PQ-512/15 AAA Printhead |
| Manufacturer | Fujifilm Dimatix / Spectra |
| Exact Model | PQ-512/15 AAA |
| Model Family | Polaris PQ-512 AAA Series (Q-Class) |
| OEM Part Number | PQ-512/15 AAA |
| Known Alias / Reference | Spectra Polaris 512/15, PQ-512/15pl, Polaris 512 15pl |
| Ink Type | UV-curable, organic solvent, aqueous |
| Product Status | Current production (genuine OEM) |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | USA (Fujifilm Dimatix manufacturing) |
| Industrial Application | High-resolution wide-format, UV flatbed, grand-format graphics, packaging and industrial printing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Technology | Piezoelectric Drop-on-Demand (DoD) |
| Jetting Technology | VersaDrop™ binary (multi-pulse adjustable) |
| Total Active Channels / Nozzles | 512 independent addressable nozzles |
| Module Construction | Two field-replaceable 256-channel modules |
| Color Modes | 1-color (200 dpi) or 2-color (100 dpi) |
| Nozzle Spacing (Single Color) | 127 µm (0.005 in) – 200 dpi |
| Nozzle Spacing (Two Color) | 254 µm (0.010 in) – 100 dpi |
| Native / Calibrated Drop Size | 15 pL (15 ng calibrated drop mass) |
| Adjustable Drop Range (VersaDrop™) | 15 pL – 30 pL |
| Nominal Jetting Velocity | 8 m/s |
| Maximum Firing Frequency | 40 kHz (15 pL) / 25 kHz (30 pL) |
| Maximum Resolution | Up to 1000 dpi |
| Jet Straightness (1 sigma, typical) | 2.0 mrad (0.11°) |
| Print Width | 64.897 mm (2.555 in) |
| Fluid Viscosity at Jetting | 8 – 20 centipoise |
| Operating Temperature Range | Up to 60 °C (140 °F) |
| Ink Compatibility | UV-curable, organic solvents, aqueous |
| Ink Recirculation Support | Yes – dual-ported per 256-channel module |
| Thermal Control | Built-in heaters and temperature sensors |
| Electrical Interface | Two 20-pin connectors (8 serial data lines) |
| Physical Dimensions (approx.) | 150.25 mm × 29.5 mm (length × width) |
| Dry Weight | 160 grams |
| Fluid Interface | Four barb fittings, 3 mm OD ink inlets |
| Mounting | Integral mounting bezel with precision registration points |
| Field Repair | 256-channel modules replaceable without special tools or recalibration |
Master Comparison Matrix – Polaris PQ-512 AAA Family
Verified variants within the same physical platform. Current product highlighted.
| Model | Native Drop | VersaDrop Range | Max Frequency | Max Resolution | Primary Use |
|---|---|---|---|---|---|
| PQ-512/15 AAA (This Product) | 15 pL | 15 – 30 pL | 40 kHz (15 pL) / 25 kHz (30 pL) | Up to 1000 dpi | Fine detail / highest resolution |
| PQ-512/35 AAA | 35 pL | 35 – 80 pL | 30 kHz (35 pL) / 13 kHz (80 pL) | Up to 800 dpi | Balanced quality & production speed |
| PQ-512/85 AAA (or /80) | 80–85 pL | 80 – 150 pL | Approx. 20 kHz / 10 kHz | Coverage oriented | High coverage / throughput |
All family members share 512 nozzles, identical physical envelope, dual-ported recirculation capability, and the same ink chemistry support. Suffix “AAA” indicates aqueous-compatible formulation.
Technical Precision & Operational Advisory
Installation must be performed by a qualified field service technician following the printer and printhead manufacturer’s procedures.
- Electrical power isolation: Completely power down the printing system and disconnect carriage driver power before attaching or removing electrical connectors to prevent damage to the printhead or mainboard.
- ESD protection: Service personnel must wear grounded anti-static wrist straps. The piezo actuators and logic circuits are sensitive to electrostatic discharge.
- Fluid system preparation: Thoroughly flush ink supply lines with approved cleaning fluid and replace inline filters before connecting the new printhead. Contaminated ink or debris will immediately clog channels.
- Ink compatibility verification: Confirm the ink chemistry (UV, solvent or aqueous) matches the printer’s fluid system and the printhead’s approved range (8–20 cP). Incorrect viscosity or chemistry will cause jetting failure or permanent damage.
- Meniscus / sub-atmospheric pressure: Maintain correct fluid pressure and recirculation settings as specified by the printer OEM. Improper meniscus control leads to nozzle dropout or flooding.
- Orientation & mounting: Use the integral precision registration points on the mounting bezel. Do not force alignment. Carriage slant and voltage waveform must be set according to the printer service documentation.
- Nozzle protection: Keep the nozzle plate protected until the printhead is installed and ready for priming. Never wipe the nozzle plate with unapproved materials.

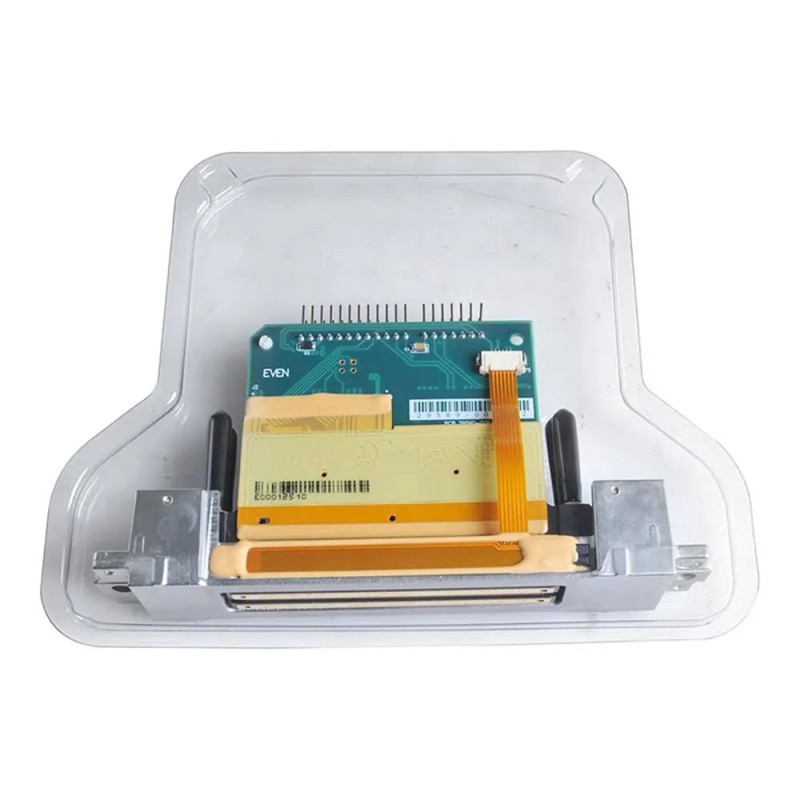

- Non-returnable once exposed: Once the factory seal is broken or the printhead has been exposed to ink, it is considered used and cannot be returned.
Compatible Models & Systems
The following printer models have been verified through multiple industrial supplier and service sources as using the exact Spectra Polaris PQ-512/15 AAA printhead. Compatibility should always be confirmed against the specific machine serial number and service documentation before ordering.
| Manufacturer | Compatible Printer Models |
|---|---|
| Anhui Liyu | Innova PS, PS3204-S512, PS3208-S512 |
| CET Color | X-Press 500, X-Press X500, X-Press X500h, X-Press X1000, X-Press X1000hl |
| Dilli | Neo UV-LED Flatbed |
| Eurotech | Aslan, Leo, Lion |
| Flora | LJ3204P, LJ3208P, LJ320P |
| Gongzheng | GZCK 3212 AK, Polaris PQ-512/15 |
| Infiniti | Fina250Q, Fina320Q |
| Lynx | 320PQ |
| Rodin | P9320-B (4H / 8H configurations) |
| Teckwin | TeckStorm TS300, TeckStorm TS600, TeckUV 3200SR |
| Truepress (Screen) | Jet W3200UV |
| Wit-Color | Ultra 4000-3304, Ultra 4000-3308 |
Note: Some earlier or regional machine designations may list the printhead simply as “Polaris 512/15”. Always cross-check the exact part number PQ-512/15 AAA against the printer’s service manual.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
