Fujifilm Dimatix StarFire SG1024/SC Printhead
- Write a review
$845.00
The Genuine New Dimatix StarFire SG1024/SC Printhead is a heavy-duty 1024-nozzle industrial piezo drop-on-demand unit featuring RediJet™ continuous ink recirculation, VersaDrop™ grayscale technology (30pL to 80pL), removable coated metal nozzle plate, and compatibility with solvent, UV, and aqueous inks.
Genuine OEM Fujifilm Dimatix StarFire SG1024/SC Printhead
C-Series • Ceramic / Industrial • 1024 Nozzles • 12–33 pL • 400 dpi
Product Overview
The Genuine New Fujifilm Dimatix StarFire SG1024/SC is a robust industrial piezoelectric drop-on-demand printhead from the C-Series, purpose-built for high-performance scanning and single-pass systems, particularly in ceramics decoration and industrial applications requiring abrasion resistance.
It features 1024 independent channels arranged in eight rows on a single replaceable coated metal nozzle plate. REDIJET continuous ink recirculation keeps fluid moving at the nozzle level to maximize open time and reduce clogging with pigmented or demanding inks. VersaDrop technology supports adjustable drop sizes (typically 12–33 pL for the SC variant) and grayscale operation at high frequencies.
The repairable design, durable metal nozzle plate and broad operational latitude make the SG1024/SC suitable for harsh industrial environments where reliability and serviceability are critical.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Genuine New Dimatix StarFire SG1024/SC Printhead |
| Manufacturer | Fujifilm Dimatix |
| Series | StarFire SG1024 C-Series |
| Exact Model | SG1024/SC |
| Condition | Original Brand New |
| Nozzle Plate | Collar-mounted coated metal (removable/replaceable) |
| Primary Application | Ceramics decoration, industrial scanning & single-pass systems |
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Active Nozzles | 1024 (typically 8 rows) |
| Print Width | 64.96 mm (2.55 in) |
| Native Resolution | Up to 400 dpi (single-color configuration) |
| Nozzle Spacing | 0.0635 mm (0.0025 in) |
| Native / Nominal Drop Size | 12 pL (SC variant) |
| Adjustable Drop Range (VersaDrop) | 12 – 33 pL |
| Maximum Firing Frequency | Up to 50 kHz (12 pL) / 18 kHz (33 pL) |
| Recirculation System | REDIJET continuous ink recirculation |
| Operating Temperature | Up to 50–55 °C (internal heater / thermistor) |
| Viscosity Range | 8 – 20 cP (optimized for ceramic / industrial fluids) |

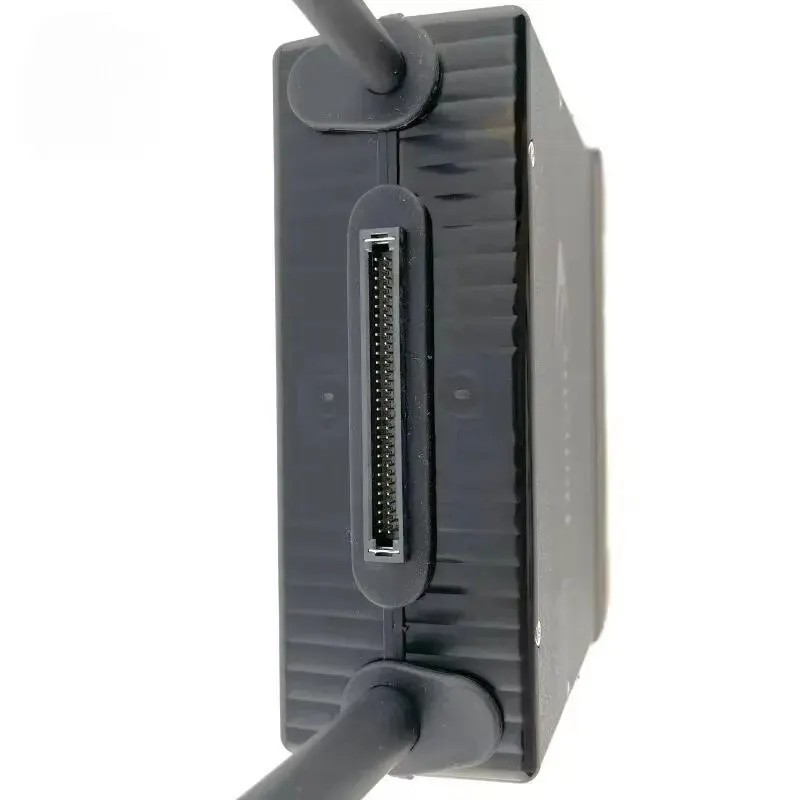

| Electrical Interface | Topside 60-pin connector |
| Fluid Interface | Luer fittings |
| Ink / Fluid Support | Oil-based ceramic inks, UV-curable, organic solvents, aqueous (variant dependent) |
Key Features & Operational Advantages
- 100% Genuine Fujifilm Dimatix OEM — Authentic factory-new unit for full compatibility and reliability.
- REDIJET Continuous Recirculation — Prevents sedimentation and drying, reduces purge cycles and ink waste.
- VersaDrop Grayscale Flexibility — Adjustable drop sizes and grayscale capability without productivity loss.
- Repairable Construction — Replaceable coated metal nozzle plate resists abrasion and supports extended service life.
- Industrial Durability — Designed for high-duty ceramics and industrial environments with precise thermal control.
Technical Precision & Operational Advisory
Installation must be performed by a qualified service engineer.
- Power isolation: Completely disconnect carriage power before connecting or disconnecting the 60-pin ribbon cable.
- ESD protection: Always use grounded anti-static wrist straps during handling.
- Fluid system preparation: Thoroughly flush lines with approved cleaning solution and replace inline filters before connection.
- Alignment & calibration: Perform precise mechanical registration and waveform setup according to OEM procedures.
- Non-returnable once installed: Installed, unsealed or ink-primed printheads cannot be returned due to contamination and electronic safety regulations.
Compatible Models & Systems
The StarFire SG1024/SC is designed for high-speed industrial systems utilizing Fujifilm Dimatix StarFire C-Series architecture, particularly ceramics decoration and related single-pass or scanning platforms. Always verify exact bracket geometry, firmware and fluid fittings prior to installation.
| Application Area | Notes |
|---|---|
| Ceramics & Tile Decoration | Primary target for SG1024/SC with oil-based ceramic inks |
| Industrial Scanning / Single-Pass | Systems designed for StarFire SG1024 C-Series architecture |
Confirm the exact model stamped on the existing printhead and consult the printer manufacturer before ordering.
Terms, Warranty & Customer Protection
Authentic OEM Guarantee: Guaranteed 100% original authentic Fujifilm Dimatix manufactured component.
Delivery Inspection Guarantee: Inspect outer packaging immediately upon arrival. Refuse shipment if physical package damage is evident.
Unopened Return Notice: Returns accepted strictly for unopened, uninstalled items in original factory-sealed packaging. Once installed or exposed to ink, the printhead is non-returnable.
