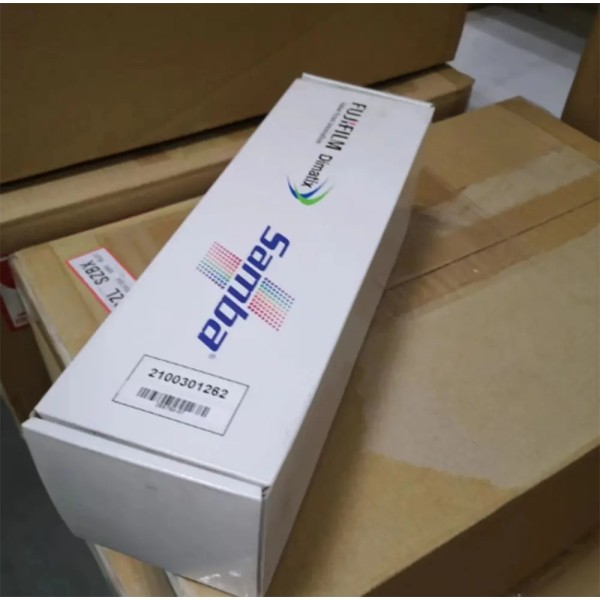

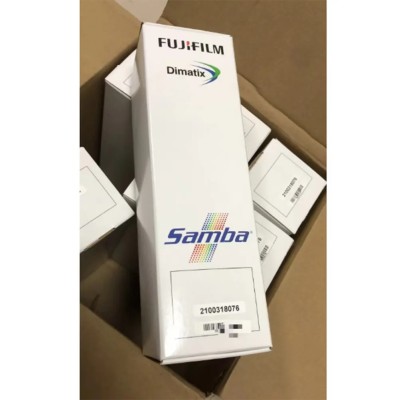

Fujifilm Dimatix Samba G3L W Aqueous Printhead 2048 Nozzles
- Write a review
$2,430.00
The Fujifilm Dimatix Samba G3L W is a high-performance silicon MEMS piezoelectric drop-on-demand industrial printhead with 2048 addressable nozzles, native 2.4 pL drop volume adjustable via VersaDrop up to 10 pL, and continuous RediJet ink recirculation. Designed for single-pass applications at 1200 dpi, it delivers exceptional image quality and productivity in commercial print, labels, packaging, and textiles using aqueous, UV-curable, latex, and solvent inks.
Product Overview
The Fujifilm Dimatix Samba G3L W printhead represents advanced silicon MEMS (Si-MEMS) technology optimized for high-speed single-pass industrial printing, with particular suitability for aqueous ink systems. Featuring 2048 individually addressable nozzles in a unique parallelogram configuration, it provides a 43 mm (1.7 in) print width at native 1200 dpi resolution (600 dpi in redundant mode). VersaDrop technology enables binary and multi-level grayscale jetting with drop sizes from the native 2.4 pL up to 10 pL without productivity loss.
Part Information
| Product Name | Fujifilm Dimatix Samba G3L W Aqueous Printhead 2048 Nozzles |
| Manufacturer / Brand | Fujifilm Dimatix |
| OEM Part Number / Reference | Samba G3L W |
| Condition | 100% Genuine Original, Brand New, Factory Sealed |
| Product Status | Active OEM Production / Grade A Standard |
Technical Specifications
| Parameter | Technical Value / Specification |
|---|---|
| Printhead Technology | Drop-on-Demand Piezoelectric - Full Silicon MEMS - RediJet Continuous Recirculation - VersaDrop Binary and Grayscale |
| Active / Total Nozzles | 2048 addressable nozzles per module |
| Native Drop Volume | 2.4 pL native to 10 pL VersaDrop adjustable |
| Maximum Firing Frequency | Over 100 kHz |
| Technical Details & Notes | Native Resolution: 1200 dpi (600 dpi redundant mode) |
Master Comparison Matrix
| Model Variant | OEM Reference | Technology | Primary Application | Status |
|---|---|---|---|---|
| Fujifilm Dimatix Samba G3L W Aqueous Printhead 2048 Nozzles (CURRENT PRODUCT) | Samba G3L W | Drop-on-Demand Piezoelectric - Full Silicon MEMS - RediJet Continuous Recirculation - VersaDrop Binary and Grayscale | Industrial Digital Printing | Active Genuine |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap during handling. Static charges can irreparably damage sensitive internal piezo actuators and driver circuitry.
- Power Isolation Protocols: Complete electrical power-down and discharge must be verified prior to disconnecting or reconnecting head ribbon cables. Never hot-plug printhead connections.
- Fluid & Meniscus Management: Ensure sub-atmospheric meniscus pressure and ink filtration levels meet exact OEM manufacturer tolerances prior to introducing ink to avoid flooding or starvation.
- Certified Technician Requirement: Physical mounting, head alignment, and voltage drive tuning must be conducted exclusively by trained industrial inkjet service engineers.
Compatible Models & Systems
| Manufacturer / Brand | Verified Compatible Models & Systems |
|---|---|
| Fujifilm Dimatix | High-speed single-pass commercial printing presses |
