Konica Minolta KM1024aLHE 30pl Large Drop Analogue Waveform Industrial Inkjet Printhead
- Write a review
$1,650.00
The Konica Minolta KM1024aLHE is a high-coverage 1024-nozzle piezo printhead featuring analogue waveform drive for superior drop control and heavy laydown. With a native 30 pl large drop volume, independent nozzle architecture and compatibility with UV, solvent and oil-based inks, it delivers strong opacity, reliable productivity and precise fluid tuning for industrial single-pass systems.
Product Overview

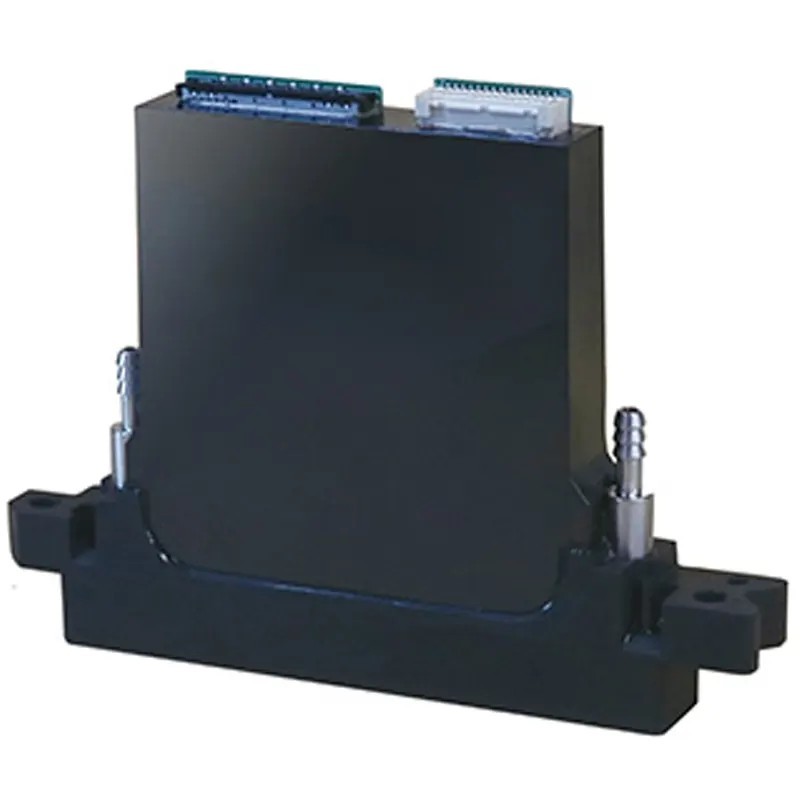

The Konica Minolta KM1024aLHE is an industrial inkjet printhead designed for high-speed single-pass and multi-pass systems that require analogue waveform flexibility and large native drop volume for heavy ink coverage. Built on the KM1024a independent drive platform with a precise multi-row nozzle architecture, it supports 1024 nozzles across a 72 mm print width. The native 30 pl large drop volume combined with multi-drop greyscale capability and analogue waveform control enables excellent opacity, solid coverage and high productivity. An integrated heater supports stable jetting with UV-curable, solvent and oil-based inks, making this model suitable for industrial applications requiring reliable heavy-laydown performance and precise fluid tuning.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (Independent Drive, Analogue Waveform)
- Ink Type Compatibility: UV-curable, Solvent, Oil-based
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Native Resolution | 360 npi |
| Number of Nozzles | 1024 |
| Native Drop Volume | 30 pl (large drop) |
| Regular Jetting Frequency | Typical industrial range for large-drop analogue operation (confirm with OEM waveform) |
| Print Width | 72 mm |
| Greyscale Levels | Up to 8 levels |
| Drive / Waveform | Independent drive with Analogue waveform |
| Internal Heater | Yes (integrated) |
| Jetting Temperature Range | Typically RT – 55 °C (confirm OEM specification) |
| Dimensions (W × D × H) | Approx. 131.2 mm × 17.6 mm × 97 mm |
| Weight | Approx. 150–170 g |
| Compatible Ink Types | UV-curable, Solvent, Oil-based |
Technical Precision & Operational Advisory
- Strict ESD protection is mandatory during handling and installation. Always use grounded wrist straps, anti-static work surfaces and proper packaging procedures.
- Ensure complete power isolation of the printer and drive electronics before installing or removing the printhead.
- Replace all ink supply tubes, filters, dampers and connectors when installing a new head to prevent contamination and maintain optimal flow, especially with higher-viscosity or large-drop fluids.
- Prepare fluids correctly: filter ink to the manufacturer-recommended micron rating and follow any required degassing or conditioning procedures for the specific ink chemistry.
- Maintain stable operating temperature using the integrated heater and external system controls. Avoid rapid temperature changes that can affect large-drop jetting stability.
- Use only the exact analogue waveform, voltage and meniscus pressure settings specified by the printer OEM or drive electronics supplier. Analogue waveform flexibility requires precise tuning for optimal large-drop formation.
- Adhere strictly to the machine’s cleaning, capping and maintenance schedule. Never leave the nozzle plate exposed or dry for extended periods.
Compatible Equipment & Applications
| Compatible Printer Brands / Models | Industrial single-pass and multi-pass systems designed or configured for KM1024a-series analogue-waveform architecture with large-drop capability (confirm exact compatibility with machine documentation and drive electronics) |
| Primary Applications | High-coverage single-pass UV, solvent and oil-based printing, industrial decoration, packaging, ceramic/glass applications, product marking and continuous production environments requiring heavy ink laydown, strong opacity and analogue waveform flexibility |
| Typical Use Case | OEM replacement or system upgrade for production printers needing 30 pl native drop volume, analogue waveform capability, 360 npi resolution and reliable large-drop UV/solvent/oil performance |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved inks voids all warranty.
