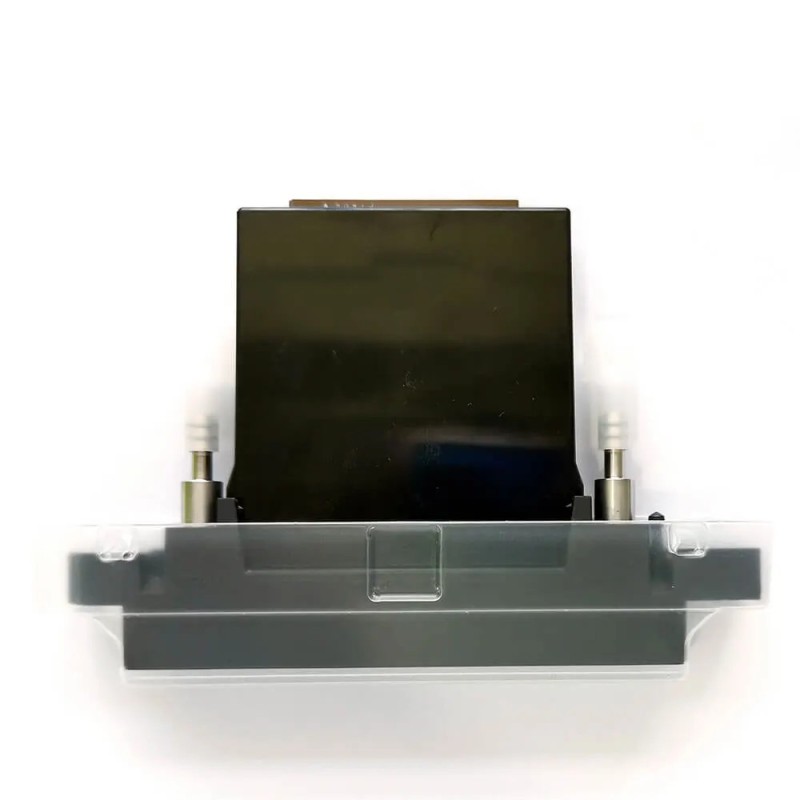

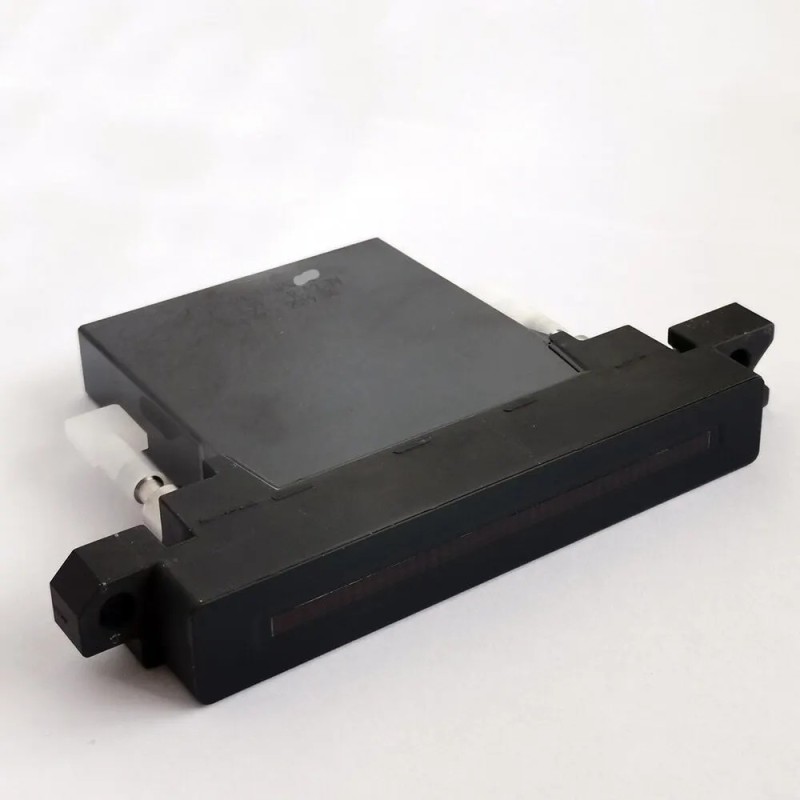

Konica Minolta KM1024iLHE-C 30pl Large Drop Industrial Inkjet Printhead (UV Compatible)

Konica Minolta KM1024iLHE-C 30pl Large Drop Industrial Inkjet Printhead (UV Compatible)

Write a review

$1,350.00

The Konica Minolta KM1024iLHE-C is a high-coverage 1024-nozzle piezo printhead engineered for industrial single-pass systems requiring heavy ink laydown and strong opacity. With a native 30 pl drop volume, independent nozzle drive up to 27 kHz and full UV, solvent and oil compatibility, it delivers reliable performance for demanding large-drop production applications.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Konica Minolta KM1024iLHE-C is a robust industrial inkjet printhead designed for high-speed single-pass and multi-pass printing applications that demand large native drop volume and excellent ink coverage. Featuring an independent drive system and a precise 4-row nozzle architecture (256 nozzles × 4), it enables simultaneous firing of all 1024 nozzles at frequencies up to 27 kHz. The 30 pl calibrated drop size provides superior opacity, solid coverage and high productivity, making it ideal for UV flatbed, hybrid, industrial decoration and packaging systems. An integrated heater ensures stable jetting performance across UV-curable, solvent and oil-based inks, while the compact mechanical design supports reliable long-term operation in continuous production environments.

Part Information

Brand: Konica Minolta
Product Type: Industrial Inkjet Printhead
Technology: Piezoelectric Drop-on-Demand (Independent Drive System)
Ink Type Compatibility: UV-curable, Solvent, Oil-based
Condition: 100% Genuine Original, Brand New
Country of Origin: Japan

Technical Specifications

Native Resolution	360 npi (90 npi × 4 lines)
Number of Nozzles	1024 (256 nozzles × 4 rows)
Native Drop Volume	30 pl
Maximum Firing Frequency	27 kHz
Print Width	72 mm
Greyscale Levels	Up to 8 levels
Drive System	Independent channel drive (simultaneous all-nozzle firing)
Internal Heater	Yes (integrated)
Dimensions (W × D × H)	131 mm × 18 mm × 94 mm
Weight	Approx. 150 g
Compatible Ink Types	UV-curable, Solvent, Oil-based

Technical Precision & Operational Advisory

Strict ESD protection is mandatory during handling and installation. Always use grounded wrist straps, anti-static work surfaces and proper packaging procedures.
Ensure complete power isolation of the printer and drive electronics before installing or removing the printhead.
Replace all ink supply tubes, filters, dampers and connectors when installing a new head to prevent contamination and maintain optimal flow.
Prepare fluids correctly: filter ink to the manufacturer-recommended micron rating and follow any required degassing procedures for the specific ink chemistry.
Maintain stable operating temperature using the integrated heater and external system controls (typically ambient to 55 °C). Avoid rapid temperature changes.
Use only the exact waveform, voltage and meniscus pressure settings specified by the printer OEM. Incorrect drive parameters will reduce print quality and service life.
Adhere strictly to the machine’s cleaning, capping and maintenance schedule. Never leave the nozzle plate exposed or dry for extended periods.

Compatible Equipment & Applications

Compatible Printer Brands / Models	Agfa Anapurna series; Allwin UV series; Docan; Flora; JHF Vista; Skyjet; Taimes; Yicong and other single-pass / hybrid industrial systems designed for the KM1024iLHE architecture (confirm exact compatibility with machine documentation)
Primary Applications	High-coverage single-pass UV flatbed and hybrid printing, industrial decoration, packaging, ceramic and glass applications, product marking and continuous production environments requiring heavy ink laydown and strong opacity
Typical Use Case	OEM replacement or system upgrade for production printers needing 30 pl native drop volume, 360 npi resolution and reliable large-drop performance for high-opacity industrial printing

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved inks voids all warranty.

Reference KM1024iLHE-C

In stock 4454 Items
