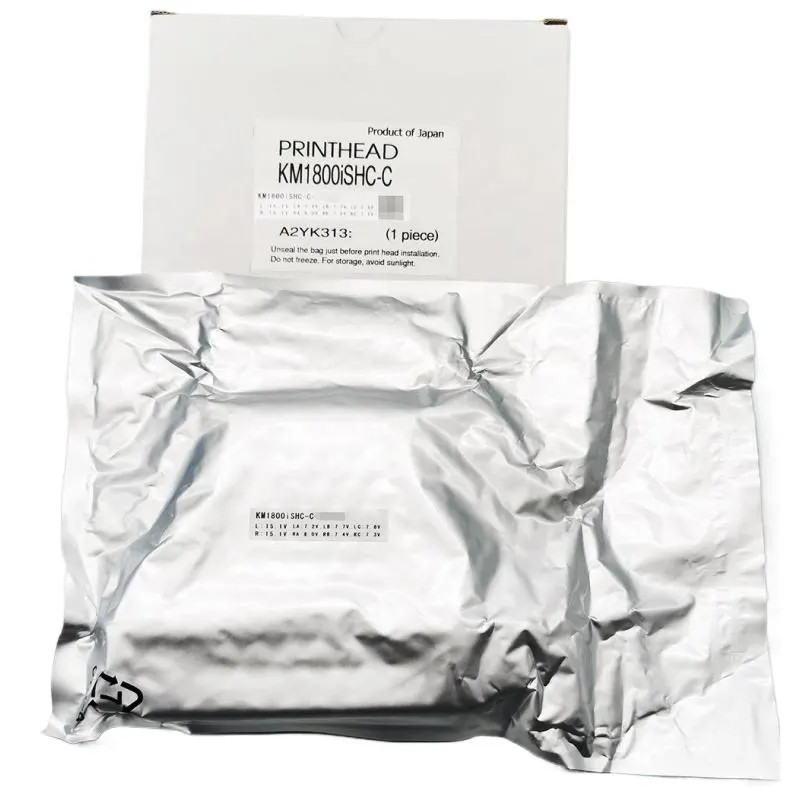

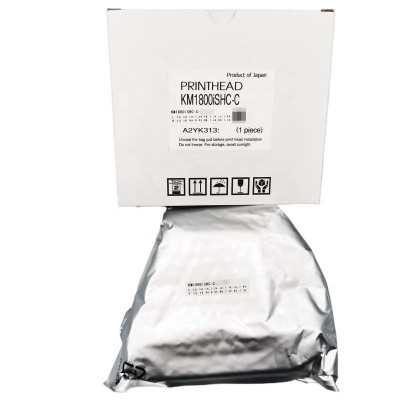

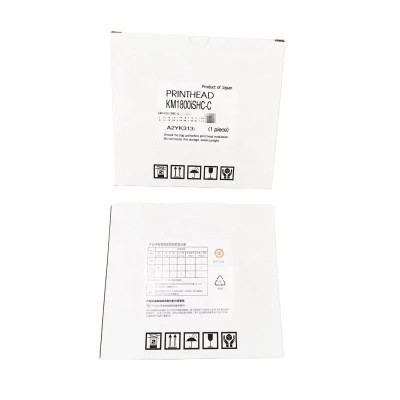

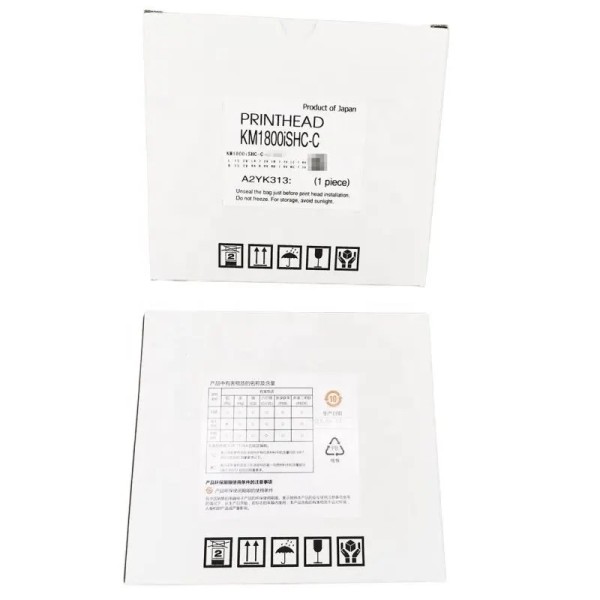

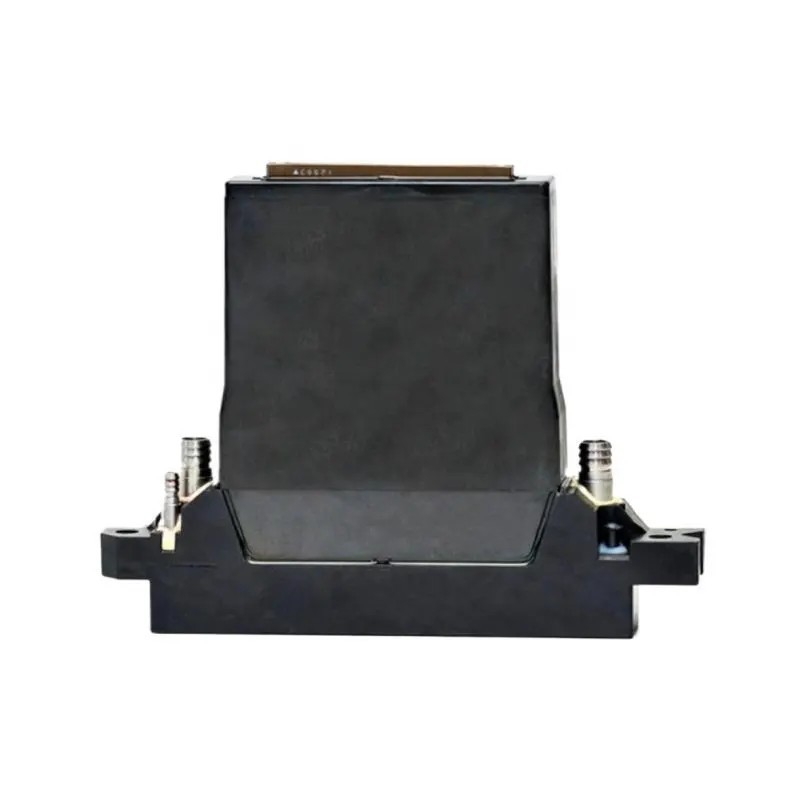

Genuine Konica Minolta KM1800iSHC-C-2 High-Speed 600 npi Industrial Printhead
- Write a review
$1,890.00
Original Konica Minolta KM1800iSHC-C-2 piezo printhead with 1,776 nozzles and native 600 npi resolution. Delivers precise 3.7 pL droplets at up to 62 kHz. Compact design optimized for high-speed single-pass UV, solvent and oil-based industrial printing.
Product Overview
The Genuine Konica Minolta KM1800iSHC-C-2 is a high-density, high-speed industrial inkjet printhead from the KM1800i series, engineered for demanding single-pass production. Featuring 1,776 nozzles arranged in six rows (296 nozzles × 6 lines) at a native 600 npi resolution, it provides a 75 mm print width in a compact form factor. Independent drive piezo technology enables precise 3.7 pL droplet control with a maximum firing frequency of 62 kHz. Built-in heater support and robust fluid compatibility make it suitable for UV, solvent and oil-based inks. Greyscale capability (up to 16 levels) delivers smooth tonal reproduction, while the narrow body design simplifies multi-head array integration. Ideal for high-productivity applications including packaging, coding, plastic card decoration, security printing, electronics and industrial graphics requiring reliable high-frequency performance.
Part Information
- Brand: Konica Minolta
- Product Type: High-Speed Industrial Inkjet Printhead
- Technology: Piezo Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: UV / Solvent / Oil
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan

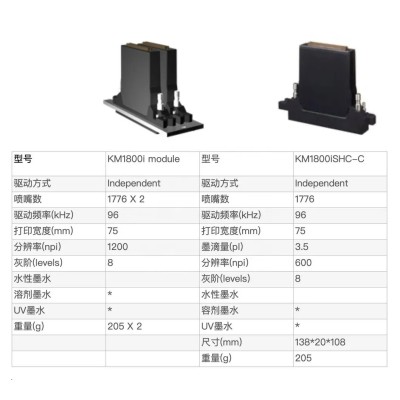

Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Konica Minolta, Japan |
| Native Resolution | 600 npi (100 npi × 6 lines) |
| Nozzle Count | 1,776 nozzles (296 × 6 lines) |
| Max Drive Frequency | 62 kHz |
| Droplet Volume | 3.7 pL |
| Effective Print Width | 75 mm |
| Greyscale Levels | Up to 16 levels |
| Dimensions (W × D × H) | 138 × 20 × 108 mm |
| Weight | Approx. 200 g |
| Key Features | Independent drive system, built-in heater, compact design, high-speed single-pass capability, UV/Solvent/Oil compatibility |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine cable when installing a new printhead to ensure reliable high-frequency signal transmission.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or oil) before first use. Confirm viscosity and formulation compatibility.
- Temperature Control: Utilize the built-in heater to maintain optimal ink temperature and viscosity for consistent high-frequency jetting performance at up to 62 kHz.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | High-speed single-pass industrial systems designed for Konica Minolta KM1800iSHC-C-2 printheads, including packaging, coding, plastic card, security, electronics and custom OEM platforms. Confirm exact model compatibility with your system documentation. |
| Primary Applications | High-speed single-pass packaging, coding & marking, plastic card decoration, security printing, electronics patterning, industrial graphics and other applications requiring compact 600 npi performance at up to 62 kHz with UV, solvent or oil inks. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original Konica Minolta product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
