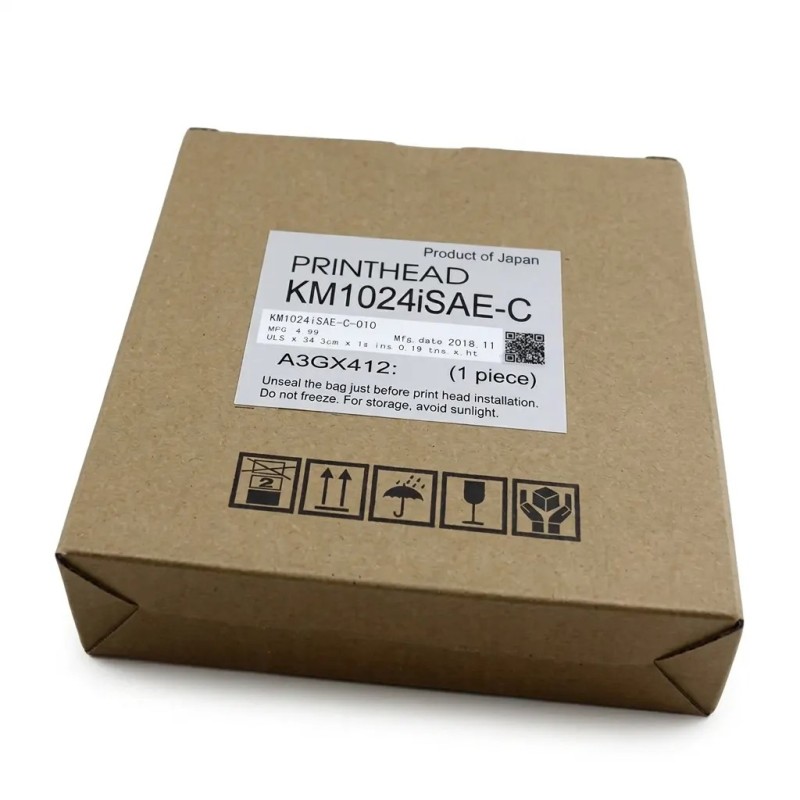

Konica Minolta KM1024iSAE-C 6pl Water-Based Industrial Inkjet Printhead
- Write a review
$1,190.00
The Konica Minolta KM1024iSAE-C is a high-resolution 1024-nozzle piezo printhead specifically engineered for water-based ink systems. With a native 6 pl drop volume, independent nozzle drive up to 43 kHz and optimized aqueous fluid compatibility, it delivers precise detail and reliable performance for industrial single-pass applications using water-based inks.
Product Overview
The Konica Minolta KM1024iSAE-C is a specialized industrial inkjet printhead designed exclusively for water-based ink formulations in high-speed single-pass and multi-pass systems. Featuring an independent drive system and a precise 4-row nozzle architecture (256 nozzles × 4), it enables simultaneous firing of all 1024 nozzles at frequencies up to 43 kHz. The native 6 pl drop volume combined with 8-level greyscale capability provides excellent image quality and smooth tonal transitions for aqueous applications. An integrated heater supports stable jetting performance with water-based inks, while the compact, robust construction ensures reliable long-term operation in continuous industrial production environments.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: Water-based (Aqueous)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Native Resolution | 360 npi (90 npi × 4 lines) |
| Number of Nozzles | 1024 (256 nozzles × 4 rows) |
| Native Drop Volume | 6 pl |
| Maximum Firing Frequency | 43 kHz |
| Print Width | 72 mm |
| Greyscale Levels | Up to 8 levels |
| Drive System | Independent channel drive (simultaneous all-nozzle firing) |
| Internal Heater | Yes (integrated) |
| Dimensions (W × D × H) | 131 mm × 18 mm × 94 mm |
| Weight | Approx. 150 g |
| Compatible Ink Types | Water-based (Aqueous) only |
Technical Precision & Operational Advisory
- Strict ESD protection is mandatory during handling and installation. Always use grounded wrist straps, anti-static work surfaces and proper packaging procedures.
- Ensure complete power isolation of the printer and drive electronics before installing or removing the printhead.
- Replace all ink supply tubes, filters, dampers and connectors when installing a new head to prevent contamination and maintain optimal flow with aqueous fluids.
- Prepare fluids correctly: filter water-based ink to the manufacturer-recommended micron rating and follow any required degassing or conditioning procedures for aqueous chemistry.
- Maintain stable operating temperature using the integrated heater and external system controls. Avoid rapid temperature changes that can affect water-based ink viscosity and jetting stability.
- Use only the exact waveform, voltage and meniscus pressure settings specified by the printer OEM for water-based operation. Incorrect parameters will reduce print quality and service life.
- Adhere strictly to the machine’s cleaning, capping and maintenance schedule. Water-based inks require careful nozzle plate care to prevent drying or residue buildup.
Compatible Equipment & Applications
| Compatible Printer Brands / Models | Industrial single-pass and multi-pass systems specifically designed or configured for KM1024iSAE-C water-based architecture (confirm exact compatibility with machine documentation and ink system) |
| Primary Applications | High-resolution single-pass printing with water-based inks, textile and soft-signage production, packaging decoration, product marking and continuous industrial applications requiring aqueous fluid compatibility and fine detail |
| Typical Use Case | OEM replacement or system upgrade for production printers needing 6 pl native drop volume, 360 npi resolution and dedicated water-based ink performance |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved (non-water-based) inks voids all warranty.
