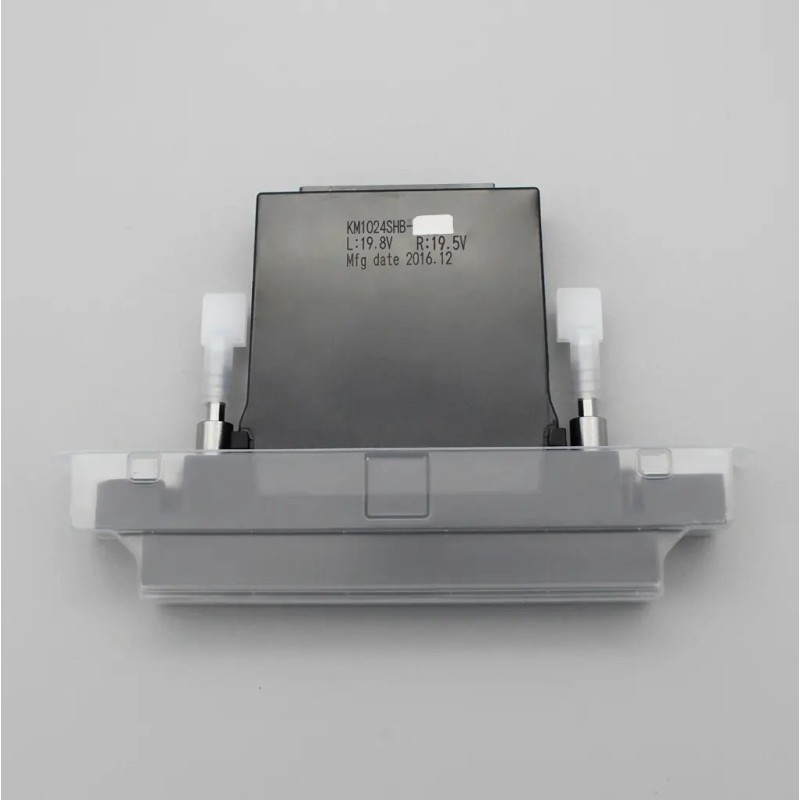

Konica Minolta KM1024SHB Printhead (6pL - Small Drop / Built-in Heater)
- Write a review
$980.00
The Konica Minolta KM1024SHB is a high-resolution small-drop shared-wall piezo printhead delivering 6 pL drops at 360 dpi across a 72 mm print width. Equipped with a built-in heater, it supports both solvent and UV inks with excellent fine-detail performance. Ideal for high-quality industrial graphics and applications requiring precise small-drop jetting with temperature control.
Product Overview
The Konica Minolta KM1024SHB is the small-drop heated version of the proven KM1024 series industrial inkjet printhead. Featuring 1024 nozzles at a native 360 dpi resolution and a wide 72 mm print width, it delivers precise 6 picoliter drops using efficient shared-wall 3-cycle piezoelectric technology. The integrated heater allows stable jetting of both solvent and UV inks by controlling viscosity, making it suitable for a broader range of industrial applications than the non-heated SNB variant. With greyscale capability up to 8 levels and a maximum firing frequency of 30 kHz, the KM1024SHB provides sharp detail, smooth tonal reproduction and reliable performance in high-quality graphics, packaging and industrial printing systems.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead (Small Drop with Built-in Heater)
- Technology: Piezo Drop-on-Demand (Shared Wall 3-Cycle)
- Ink Type Compatibility: Solvent, UV
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Konica Minolta |
| Native Resolution | 360 dpi (180 dpi × 2 lines) |
| Nozzle Count | 1024 nozzles (512 nozzles × 2 lines) |
| Max Drive Frequency | 30 kHz |
| Droplet Volume | 6 pL |
| Print Width | 72 mm |
| Grey Scale Levels | Up to 8 levels |
| Internal Heater | Yes (Built-in) |
| Dimensions (W × D × H) | Approximately 131 mm × 18 mm × 89 mm |
| Weight | Approximately 150 g |
| Nozzle Pitch | 70.5 μm (141 μm × 2 lines) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always handle the printhead in a fully ESD-protected environment. Wear a properly grounded wrist strap and use anti-static work surfaces. Never touch the nozzle plate or electrical contacts with bare hands.
- Power Isolation Warning: Completely power down the printer and disconnect all drive electronics before installing or removing the printhead. Confirm zero residual voltage on the interface.
- Cable Replacement Protocol: It is strongly recommended to replace the FFC ribbon cable and connectors with new ones during every printhead installation to prevent contact resistance and signal issues.
- Heater & Fluid Management: Utilize the built-in heater to maintain optimal ink viscosity, especially for UV inks. Use only thoroughly filtered and degassed inks. Allow proper warm-up time before production.
- Greyscale & Small Drop Operation: Supports up to 8 grey levels. Ensure drive electronics and waveform are correctly configured for 6 pL small-drop performance at up to 30 kHz.
- Maintenance: Perform regular purge and cleaning cycles using approved fluids. Never allow the nozzle plate to dry out. Follow manufacturer guidelines for heater operation.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Industrial systems designed for KM1024 series (shared-wall) printheads; verify exact model and chassis compatibility before installation |
| Primary Applications | High-resolution solvent and UV graphics, fine-detail industrial printing, packaging, and applications requiring small-drop precision with temperature control |
| Key Advantages | 6 pL small drop for fine detail, built-in heater for UV/solvent flexibility, 72 mm wide format, 8-level greyscale, high 30 kHz frequency, compact shared-wall design |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Sealed and never installed or exposed to any fluid.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects, subject to submission of complete unboxing video and professional installation video by qualified technicians.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in any equipment, the sale is final. No returns or exchanges will be accepted.
