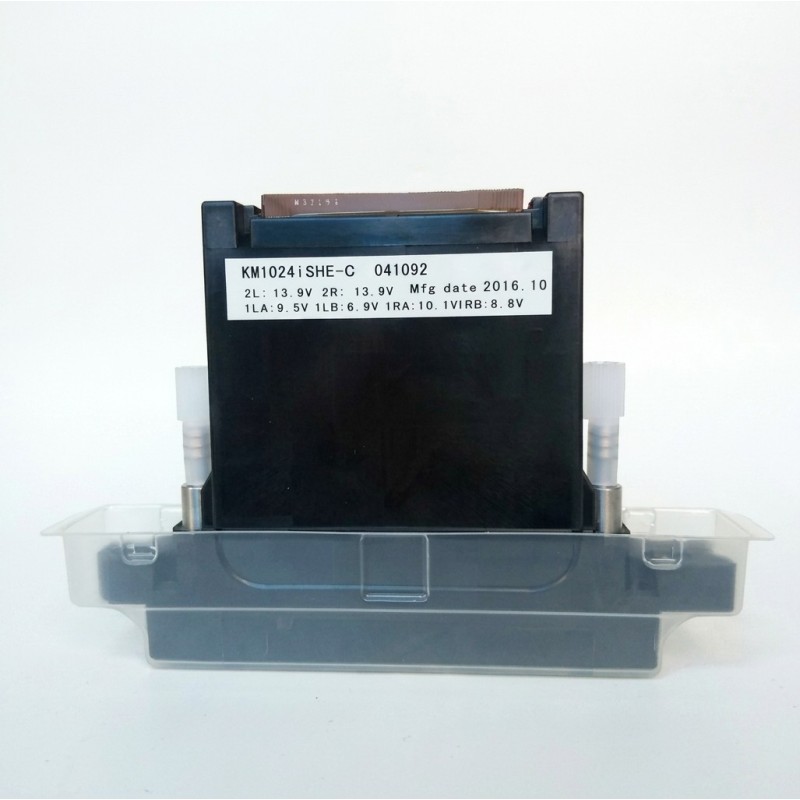

Konica Minolta KM1024iSHE-C 6pl High-Resolution Industrial Inkjet Printhead (UV & Solvent)
- Write a review
$1,040.00
The Konica Minolta KM1024iSHE-C is a high-speed 1024-nozzle piezo printhead optimized for precision single-pass industrial printing with UV-curable and solvent inks. Delivering a native 6 pl drop size, 360 npi resolution and up to 56 kHz independent nozzle drive, it provides exceptional detail, smooth greyscale and high productivity for demanding production environments.
Product Overview
The Konica Minolta KM1024iSHE-C is a high-performance industrial inkjet printhead engineered for high-resolution, high-speed single-pass and multi-pass systems using UV-curable and solvent-based inks. Built on Konica Minolta’s independent drive architecture with four precisely aligned rows of 256 nozzles, it enables simultaneous firing of all 1024 nozzles at frequencies up to 56 kHz. The native 6 pl drop volume combined with 8-level greyscale capability delivers outstanding image quality and smooth tonal transitions, while the integrated heater ensures stable jetting performance across a wide range of industrial ink formulations. Its compact, robust design makes it ideal for continuous high-volume production in signage, industrial decoration and packaging applications.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: UV-curable, Solvent, Oil-based
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Native Resolution | 360 npi (90 npi × 4 lines) |
| Number of Nozzles | 1024 (256 nozzles × 4 rows) |
| Native Drop Volume | 6 pl |
| Maximum Firing Frequency | 56 kHz |
| Print Width | 72 mm |
| Greyscale Levels | Up to 8 levels |
| Drive System | Independent channel drive (simultaneous all-nozzle firing) |
| Internal Heater | Yes (integrated) |
| Dimensions (W × D × H) | 131 mm × 18 mm × 94 mm |
| Weight | Approx. 150 g |
| Compatible Ink Types | UV-curable, Solvent, Oil-based |
Technical Precision & Operational Advisory
- Strict ESD protection is mandatory. Always use grounded wrist straps, anti-static mats and proper handling procedures when installing or servicing the printhead.
- Complete power isolation of the printer and drive electronics is required before any installation, removal or maintenance work.
- Replace all ink supply lines, filters, dampers and connectors during installation to eliminate contamination risk and ensure optimal performance.
- Prepare fluids correctly: filter ink to the OEM-recommended micron rating and follow degassing procedures if specified for the ink chemistry in use.
- Maintain stable operating temperature using the integrated heater and external system controls (typically ambient to 55 °C). Avoid thermal shock.
- Use only the exact waveform, voltage and meniscus pressure settings provided by the printer manufacturer. Incorrect parameters will reduce print quality and head life.
- Follow the machine’s prescribed cleaning, capping and maintenance schedule rigorously. Never allow the nozzle plate to dry out for extended periods.
Compatible Equipment & Applications
| Compatible Printer Brands / Models | Agfa Anapurna series (100, H2500i LED, M2050i, M2500i, M3200i); Allwin (S320UV, S500UV, UVT 2030, UVT 2512, UVT+ series); Docan H1000; Flora HJ 5000UV; JHF Vista (R3300, R6000, V300UV, V500UV); Skyjet (FT2512i, FT3020i); IIJ ColourPrint-72; Optimum Digital KR Hybrid UV; Taimes T50UV; Yicong YD2512-KD; Human Digital Technology M-JET and other single-pass / hybrid UV & solvent systems based on KM1024iSHE architecture |
| Primary Applications | High-resolution single-pass UV flatbed and hybrid printing, industrial signage & display, packaging decoration, high-detail graphics production, and continuous industrial printing requiring fine drop size and greyscale capability |
| Typical Use Case | OEM replacement or system upgrade for production printers needing 6 pl native drop volume, 360 npi resolution and high firing frequency for maximum productivity and image quality |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved inks voids all warranty.
