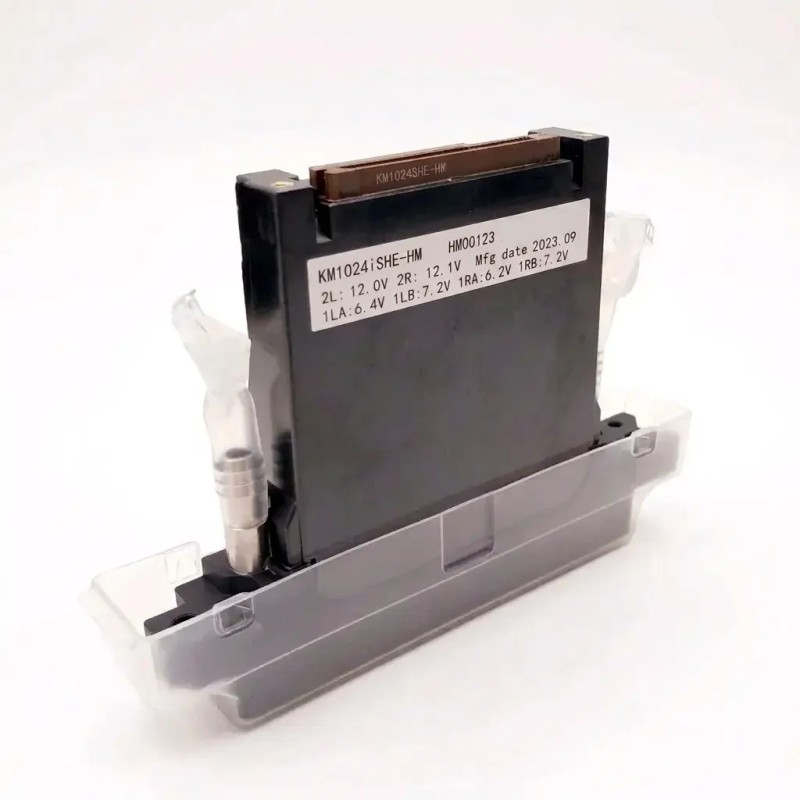

Konica Minolta KM1024iSHE-HM 6pl High-Viscosity Industrial Inkjet Printhead
- Write a review
$1,450.00
The Konica Minolta KM1024iSHE-HM is a high-speed 1024-nozzle piezo printhead optimized for higher-viscosity UV and solvent inks. With a native 6 pl drop size, independent nozzle drive up to 56 kHz and integrated heater, it delivers precise detail, stable jetting and reliable performance for demanding industrial single-pass applications requiring elevated ink viscosity.
Product Overview
The Konica Minolta KM1024iSHE-HM is an advanced industrial inkjet printhead engineered for high-speed single-pass systems using higher-viscosity UV-curable and solvent inks. Featuring an independent drive system and a precise 4-row nozzle architecture (256 nozzles × 4), it enables simultaneous firing of all 1024 nozzles at frequencies up to 56 kHz (typical 40 kHz). The native 6 pl drop volume combined with 8-level greyscale capability provides excellent image quality and smooth tonal transitions. The integrated heater and optimized fluid path support stable jetting with ink viscosities in the 7–12 mPa·s range, making this model ideal for industrial applications that require elevated viscosity formulations while maintaining high productivity and fine detail.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: UV-curable, Solvent
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Native Resolution | 360 npi (90 npi × 4 lines) |
| Number of Nozzles | 1024 (256 nozzles × 4 rows) |
| Native Drop Volume | 6 pl |
| Maximum Firing Frequency | 56 kHz (Max.) / 40 kHz (Typical) |
| Print Width | 72 mm |
| Greyscale Levels | Up to 8 levels |
| Drive System | Independent channel drive (simultaneous all-nozzle firing) |
| Internal Heater | Yes (integrated) |
| Recommended Ink Viscosity | 7–12 mPa·s |
| Dimensions (W × D × H) | 131 mm × 18 mm × 94 mm |
| Weight | Approx. 150 g |
| Compatible Ink Types | UV-curable, Solvent |
Technical Precision & Operational Advisory
- Strict ESD protection is mandatory during handling and installation. Always use grounded wrist straps, anti-static work surfaces and proper packaging procedures.
- Ensure complete power isolation of the printer and drive electronics before installing or removing the printhead.
- Replace all ink supply tubes, filters, dampers and connectors when installing a new head to prevent contamination and maintain optimal flow with higher-viscosity fluids.
- Prepare fluids correctly: filter ink to the manufacturer-recommended micron rating and follow any required degassing or conditioning procedures for the specific high-viscosity chemistry.
- Maintain stable operating temperature using the integrated heater and external system controls. Higher-viscosity inks are more sensitive to temperature variations that affect jetting stability.
- Use only the exact waveform, voltage and meniscus pressure settings specified by the printer OEM. Incorrect parameters will reduce print quality and service life, especially with elevated viscosity inks.
- Adhere strictly to the machine’s cleaning, capping and maintenance schedule. Higher-viscosity fluids require careful nozzle plate care to prevent residue buildup or clogging.
Compatible Equipment & Applications
| Compatible Printer Brands / Models | Industrial single-pass and multi-pass systems designed or configured for the KM1024iSHE-HM architecture (confirm exact compatibility with machine documentation and ink system) |
| Primary Applications | High-resolution single-pass UV and solvent printing requiring elevated ink viscosity, industrial decoration, packaging, display coatings, advanced functional printing and continuous production environments needing stable jetting with higher-viscosity formulations |
| Typical Use Case | OEM replacement or system upgrade for production printers needing 6 pl native drop volume, 360 npi resolution and dedicated high-viscosity UV/solvent performance |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved inks voids all warranty.
