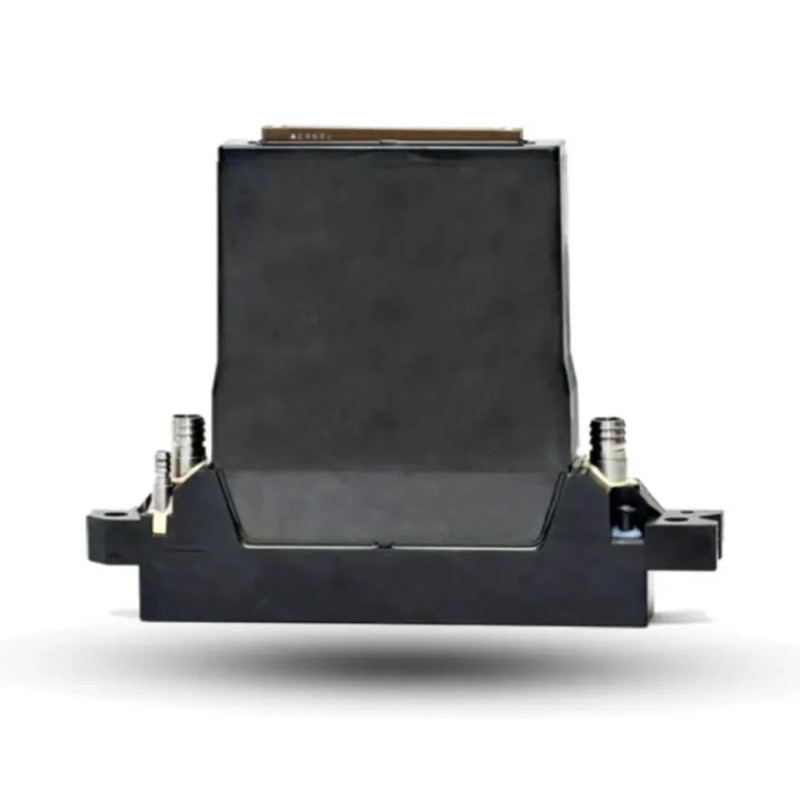

Genuine Konica Minolta KM1280iMHH High-Productivity 450 npi Industrial Printhead
- Write a review
$3,650.00
Original Konica Minolta KM1280iMHH piezo printhead with 1,280 nozzles and native 450 npi resolution. Delivers precise 10 pL droplets at up to 45 kHz (typical 40 kHz). Compact design ideal for upgrading from KM1024i series, supporting high-speed single-pass UV, solvent and oil-based industrial printing with excellent reliability and quality.
Product Overview
The Genuine Konica Minolta KM1280iMHH is a high-productivity industrial inkjet printhead from the KM1280i series, specifically designed to deliver higher resolution while maintaining the compact form factor of the proven KM1024i series. Featuring 1,280 nozzles arranged in four rows (320 nozzles × 4 lines) at a native 450 npi resolution, it provides a 72 mm print width. Independent drive piezo technology enables precise 10 pL droplet control with a maximum firing frequency of 45 kHz (typical 40 kHz). Built-in heater support and robust chemical resistance make it fully compatible with UV, solvent and oil-based inks. Greyscale capability of up to 16 levels ensures smooth tonal reproduction. The silicon nozzle plate improves drop placement accuracy even at high speeds and larger print gaps. Supporting recirculating ink systems, multi-orientation mounting and easy retrofit into existing KM1024i platforms (with minor modifications), the KM1280iMHH offers an outstanding balance of resolution, productivity and reliability. Ideal for variable data printing, fine text, coding & marking, packaging, direct-to-shape, white/spot varnish, security applications and industrial graphics.
Part Information
- Brand: Konica Minolta
- Product Type: High-Productivity Industrial Inkjet Printhead
- Technology: Piezo Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: UV / Solvent / Oil
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Konica Minolta, Japan |
| Native Resolution | 450 npi (112.5 npi × 4 lines) |
| Nozzle Count | 1,280 nozzles (320 × 4 lines) |
| Max Drive Frequency | 45 kHz (Max) / 40 kHz (Typical) |
| Droplet Volume | 10 pL |
| Effective Print Width | 72 mm |
| Greyscale Levels | Up to 16 levels |
| Dimensions (W × D × H) | 131 × 18 × 105 mm |
| Weight | Approx. 185 g |
| Key Features | Independent drive system, built-in heater, silicon nozzle plate for high accuracy, recirculation compatible, same slim footprint as KM1024i (easy retrofit), multi-orientation support, UV/Solvent/Oil compatibility |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine cable when installing a new printhead to ensure reliable high-frequency signal transmission.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or oil) before first use. Confirm viscosity (typically 7–12 mPa·s) and formulation compatibility. Recirculation systems are supported for white, metallic or sediment-prone inks.
- Temperature Control: Utilize the built-in heater to maintain optimal ink temperature and viscosity for consistent jetting performance at up to 45 kHz.
- Retrofit Note: Designed with the same thickness/footprint as the KM1024i series for relatively straightforward upgrades with minor system modifications.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | High-speed single-pass and scanning industrial systems designed for Konica Minolta KM1280iMHH printheads. Particularly suitable for upgrading existing KM1024i-based platforms with higher resolution. Confirm exact model compatibility and required drive electronics/modifications. |
| Primary Applications | Variable data printing (VDP), fine text & barcodes, coding & marking, packaging, direct-to-shape printing, white & spot varnish, security printing, plastic card decoration, industrial graphics, and other applications requiring the optimal balance of 450 npi resolution, 10 pL drop size, high speed and larger print gap tolerance with UV, solvent or oil inks. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original Konica Minolta product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
