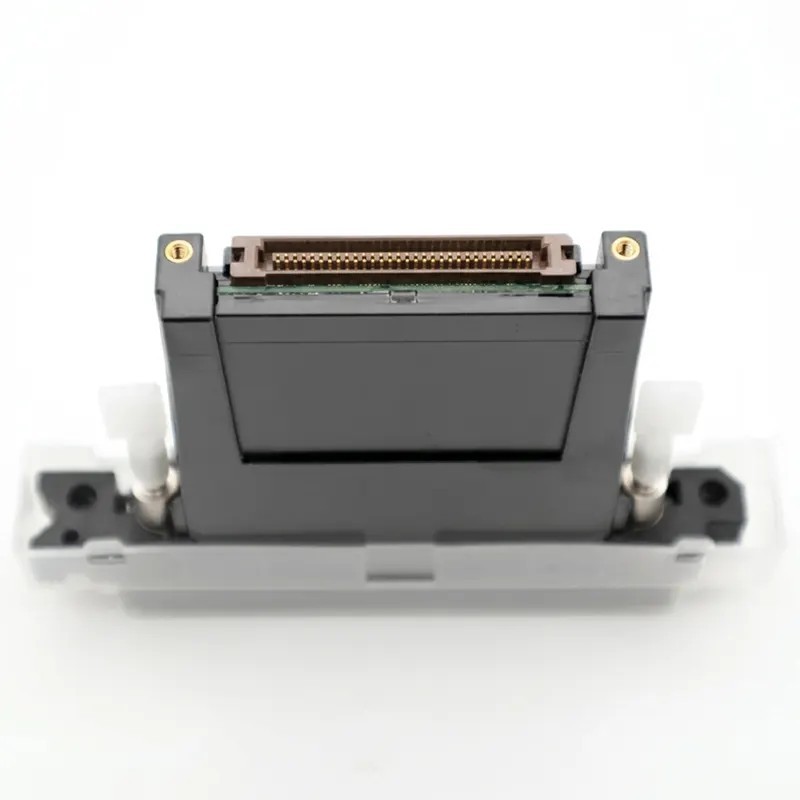

Konica Minolta KM1024iMHE-C 13pl Medium Drop Industrial Inkjet Printhead (UV & Solvent)
- Write a review
$1,250.00
The Konica Minolta KM1024iMHE-C is a high-productivity 1024-nozzle piezo printhead engineered for industrial single-pass systems requiring balanced coverage and speed. With a native 13 pl drop volume, independent nozzle drive up to 45 kHz and full compatibility with UV-curable and solvent inks, it delivers reliable performance and excellent laydown for medium-detail production printing.
Product Overview
The Konica Minolta KM1024iMHE-C is a robust industrial inkjet printhead designed for high-speed single-pass and multi-pass printing applications that require a medium native drop volume. Featuring an independent drive system and a precise 4-row nozzle architecture (256 nozzles × 4), it enables simultaneous firing of all 1024 nozzles at frequencies up to 45 kHz. The 13 pl calibrated drop size provides an optimal balance between image quality, ink coverage and productivity, making it ideal for UV flatbed, hybrid and industrial decoration systems using UV-curable or solvent-based inks. An integrated heater ensures stable jetting performance, while the compact mechanical design supports reliable long-term operation in continuous production environments.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (Independent Drive System)
- Ink Type Compatibility: UV-curable, Solvent, Oil-based
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Native Resolution | 360 npi (90 npi × 4 lines) |
| Number of Nozzles | 1024 (256 nozzles × 4 rows) |
| Native Drop Volume | 13 pl |
| Maximum Firing Frequency | 45 kHz |
| Print Width | 72 mm |
| Greyscale Levels | Up to 8 levels |
| Drive System | Independent channel drive (simultaneous all-nozzle firing) |
| Internal Heater | Yes (integrated) |
| Dimensions (W × D × H) | 131 mm × 18 mm × 94 mm |
| Weight | Approx. 150 g |
| Compatible Ink Types | UV-curable, Solvent, Oil-based |
Technical Precision & Operational Advisory
- Strict ESD protection is mandatory during handling and installation. Always use grounded wrist straps, anti-static work surfaces and proper packaging procedures.
- Ensure complete power isolation of the printer and drive electronics before installing or removing the printhead.
- Replace all ink supply tubes, filters, dampers and connectors when installing a new head to prevent contamination and maintain optimal flow.
- Prepare fluids correctly: filter ink to the manufacturer-recommended micron rating and follow any required degassing procedures for the specific ink chemistry.
- Maintain stable operating temperature using the integrated heater and external system controls (typically ambient to 55 °C). Avoid rapid temperature changes.
- Use only the exact waveform, voltage and meniscus pressure settings specified by the printer OEM. Incorrect drive parameters will reduce print quality and service life.
- Adhere strictly to the machine’s cleaning, capping and maintenance schedule. Never leave the nozzle plate exposed or dry for extended periods.
Compatible Equipment & Applications
| Compatible Printer Brands / Models | Agfa Anapurna series (100, H2500i LED, M2050i, M2500i, M3200i); Allwin (S320UV, S500UV, UVT 2030, UVT 2512, UVT+ series); Docan H1000; Flora HJ 5000UV; JHF Vista (R3300, R6000, V300UV, V500UV); Skyjet (FT2512i, FT3020i); IIJ ColourPrint-72; Optimum Digital KR Hybrid UV; Taimes T50UV; Yicong YD2512-KD; Human Digital Technology M-JET; SwissQprint Nyala 2 and other single-pass / hybrid systems designed for the KM1024iMHE architecture |
| Primary Applications | Medium-detail single-pass UV flatbed and hybrid printing, industrial signage, packaging decoration, product marking and continuous production environments requiring balanced coverage and speed with UV or solvent inks |
| Typical Use Case | OEM replacement or system upgrade for production printers needing 13 pl native drop volume, 360 npi resolution and 45 kHz performance for reliable medium-laydown industrial printing |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed prior to shipment. Visual and electrical verification available upon request before installation.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects under correct installation and operation according to OEM guidelines. Proof of proper handling and system parameters may be required.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in a printer, it is considered used and non-returnable except in cases of verified manufacturing defect. Incorrect installation, contamination, ESD damage or use with non-approved inks voids all warranty.
