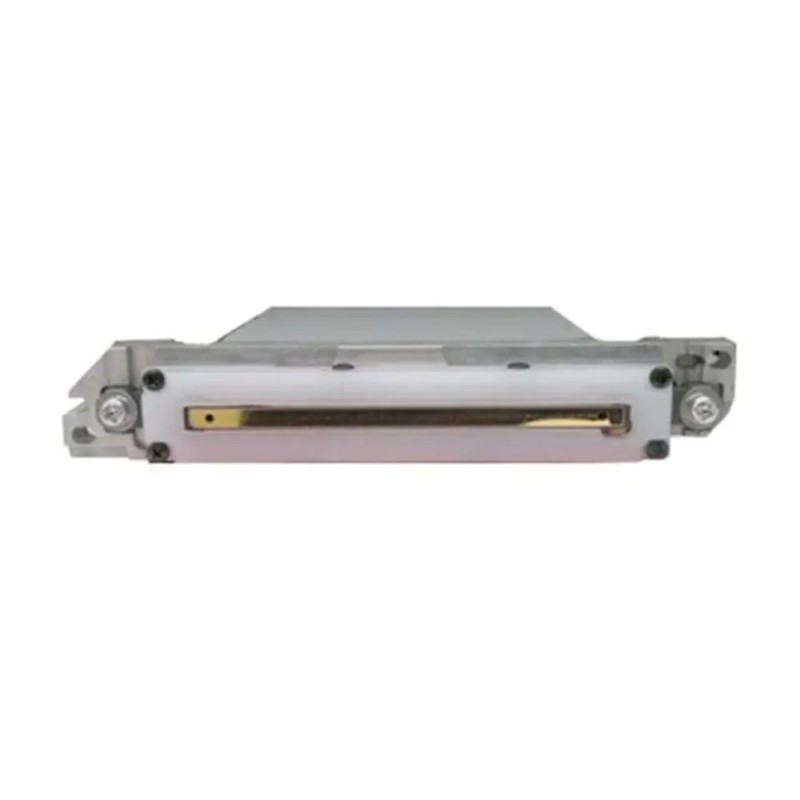

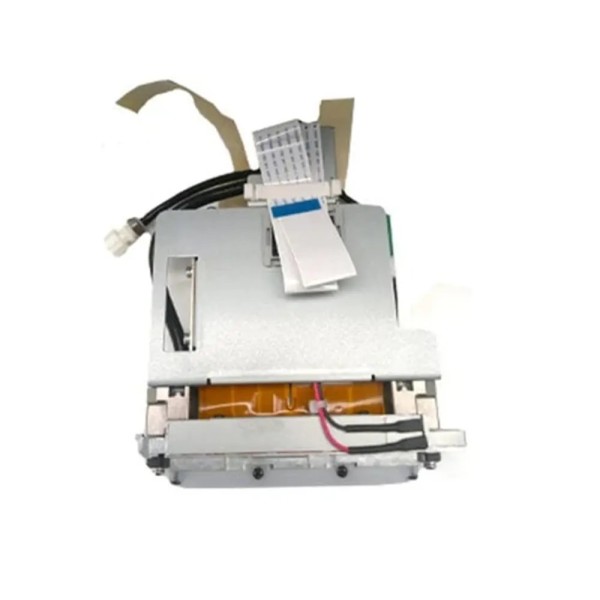

Fujifilm Dimatix Spectra Emerald QE-30/30 AAA Printhead (30 pL)
- Write a review
$945.00
The Genuine NEW Dimatix Emerald QE30 Printhead is an authentic Fujifilm Dimatix 256-channel Q-Class industrial piezo drop-on-demand assembly featuring a nominal 30 pL drop volume, VersaDrop™ grayscale technology, high-speed jetting, and robust construction for UV, solvent, and aqueous printing systems.
Genuine OEM Fujifilm Dimatix Emerald QE-256/30 AAA Printhead
Emerald QE30 • 256 Nozzles • 30 pL • Q-Class • UV / Solvent / Aqueous
Product Overview
The Genuine NEW Fujifilm Dimatix Emerald QE-256/30 AAA (commonly referred to as Emerald QE30) is an authentic factory-original Q-Class industrial piezoelectric drop-on-demand printhead. Designed for high-speed scanning printer architectures, it combines precise drop placement accuracy, excellent channel-to-channel uniformity and low crosstalk in a compact, lightweight form factor.
Featuring 256 individually addressable nozzles arranged in a single row at 100 dpi native spacing, the Emerald QE-30 utilizes VersaDrop™ technology to deliver a 30 picoliter native drop size with multi-drop grayscale capability (up to 80 pL in binary mode). Constructed with a durable field-proven metal nozzle plate and chemical-resistant fluid paths, it supports UV-curable, organic solvent and aqueous ink chemistries, making it suitable for wide-format graphics, textile and industrial decorating applications.
The thin-profile design, dual-ported fluid interface and integral temperature sensor facilitate easy integration and reliable long-term performance in multi-shift industrial environments.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Genuine NEW Dimatix Emerald QE-256/30 AAA Printhead |
| Manufacturer | Fujifilm Dimatix |
| Series / Architecture | Emerald Series (Q-Class) |
| Exact Model | QE-256/30 AAA (QE-30) |
| Condition | Original Brand New |
| Active Nozzles | 256 (single row) |
| Nominal Drop Volume | 30 pL |
| Jetting Technology | VersaDrop™ Binary & Grayscale |
| Ink Compatibility | UV-curable, organic solvent, aqueous |
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Addressable Jets | 256 (single inline row) |
| Native Nozzle Spacing / Resolution | 100 dpi (approx. 254 µm) |
| Print Width | Approximately 64.8 mm |
| Native Drop Size | 30 pL |
| Largest Drop Size (VersaDrop Binary) | Up to 80 pL |
| Maximum Firing Frequency | 33 kHz (30 pL operation) |
| Nominal Drop Velocity | 8 m/s |
| Maximum Resolution | Up to 900 dpi |
| Fluid Viscosity Range | 8 – 20 cP (10 – 14 cP recommended) |
| Operating Temperature | Up to 90 °C |
| Nozzle Plate Technology | Field-proven metal |
| Fluid Interface | Dual-ported, minimal wetted surface area |
| Additional Features | Integral temperature sensor, OEM accessible non-volatile memory |
Key Features & Operational Advantages
- 100% Genuine Fujifilm Dimatix OEM — Factory-original unit ensuring full drive signal compatibility and production reliability.
- VersaDrop™ Technology — Supports variable binary drop sizing and grayscale jetting for dense solids and smooth gradients.
- High-Frequency Scanning Performance — Optimized for high-speed linear carriage systems with low crosstalk.
- Durable Q-Class Construction — Robust metal nozzle plate and chemical-resistant design for multi-shift industrial use.
- Broad Ink Compatibility — Operates reliably with UV-curable, solvent and aqueous formulations.
Technical Precision & Operational Advisory
Installation must be performed by a qualified wide-format field service technician.
- Power isolation: Completely power off the printer and disconnect main board power before attaching or removing cables.
- ESD protection: Always wear grounded anti-static wrist straps when handling the printhead.
- Fluidic preparation: Thoroughly flush ink lines with approved cleaning fluid and replace inline filters before connection.
- Calibration: Perform head alignment, slant calibration and waveform setup according to the printer manufacturer’s procedures.
- Non-returnable once installed: Installed, unsealed or ink-primed printheads cannot be returned due to contamination and electronic safety risks.
Compatible Models & Systems
The Emerald QE-256/30 AAA is designed for wide-format graphics, textile and industrial scanning inkjet systems that utilize Fujifilm Dimatix Q-Class Emerald architecture. Known compatibility includes selected Fujifilm Acuity LED series printers. Always verify carriage mounting, connector type and firmware compatibility before installation.
| Manufacturer | Compatible / Common Models |
|---|---|
| Fujifilm | Acuity LED 1600, Acuity LED 1600 II (selected configurations) |
| Other platforms | Wide-format and industrial scanning systems designed for Emerald Q-Class / QE-256 series |
Printer compatibility can vary by exact configuration. Confirm the existing printhead model and consult the printer service documentation prior to ordering.
Terms, Warranty & Customer Protection
Authentic OEM Guarantee: Guaranteed 100% original authentic Fujifilm Dimatix manufactured component.
Delivery Inspection: Inspect outer packaging immediately upon arrival. Refuse shipment if physical damage to the outer box is observed.
Unopened Return Policy: Returns accepted strictly for unopened, uninstalled items in original factory-sealed packaging. Once installed or exposed to ink, the printhead is non-returnable.
