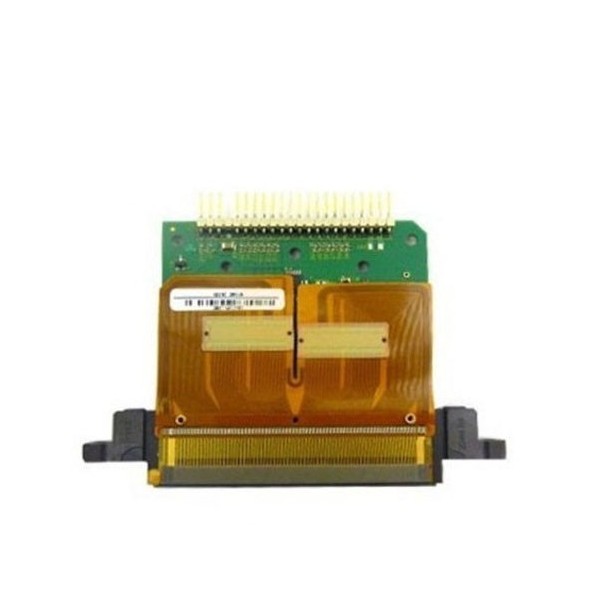

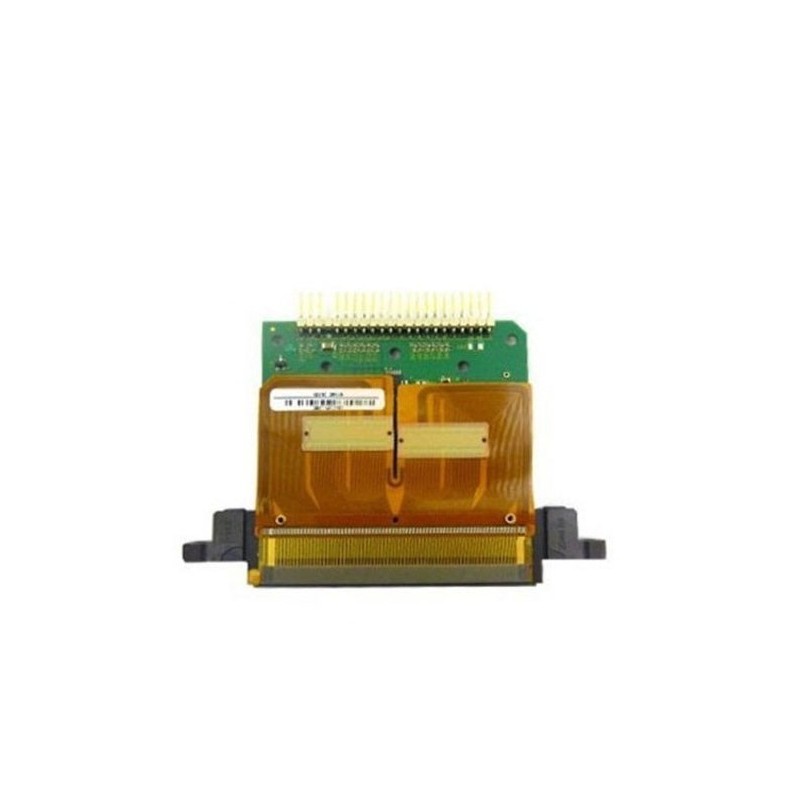

Genuine New Emerald QE-256/80 AAA

Product Overview

The Genuine New Emerald QE-256/80 AAA printhead is a high-performance, original industrial piezoelectric drop-on-demand (DoD) jetting assembly manufactured by Fujifilm Dimatix / Spectra. Engineered for heavy-duty commercial and industrial inkjet applications, the Emerald QE-256/80 AAA combines proven jetting reliability with advanced flexibility to produce consistent print quality across wide-format graphics and industrial fluid deposition systems.

Featuring 256 individually addressable inline nozzles arranged in a single row at 100 dots-per-inch (dpi) spacing, the Emerald QE-256/80 AAA supports resolutions up to 450 dpi. The assembly operates using an 80 picoliter (80 pL) nominal drop size with nominal drop velocities of 8 meters per second when jetting fluids in the 10 to 14 centipoise (cP) viscosity range. Powered by VersaDrop™ jetting technology, it offers unparalleled versatility with both binary drop adjustment (80 pL to 200 pL) and multi-level grayscale modes.

Built with a field-proven metal nozzle plate, the printhead ensures precise drop placement accuracy and physical durability. Its low wetted surface area, dual-ported manifold design, integrated temperature sensor, and OEM-accessible non-volatile memory make it an optimal drop-in replacement for high-demand production environments.

Part Information

• Product Name: Genuine New Emerald QE-256/80 AAA
• Brand / Manufacturer: Spectra / Fujifilm Dimatix
• Series: Emerald Series
• Product Model: QE-256/80 AAA
• Component Type: Industrial Piezoelectric Drop-On-Demand Printhead
• Condition: Original / Brand New
• Active Nozzles / Channels: 256 individually addressable, inline nozzles (1 single row)
• Native Nozzle Pitch: 100 dpi
• Maximum Resolution: Up to 450 dpi
• Nominal Drop Size: 80 picoliters (80 pL)
• Adjustable Binary Drop Range: 80 pL to 200 pL
• Jetting Modes: VersaDrop™ Binary and Grayscale modes
• Nominal Drop Velocity: 8 m/s
• Viscosity Range: 10 to 14 centipoise (cP)
• Fluidic Interface: Dual-ported manifold with minimal wetted surface area
• Thermal Control: Integrated temperature sensor
• Memory: OEM-accessible non-volatile memory area for usage/parameter tracking
• Ink Compatibility: UV-Curable, Solvent-Based, and Aqueous-Based Inks

Key Features & Operational Advantages

• 100% Genuine Spectra OEM: Authentic factory-new component guaranteeing precise internal piezo responsiveness and structural longevity.
• VersaDrop™ Binary & Grayscale Jetting: Delivers flexible operation from 80 pL fundamental drop size up to 200 pL drops for intense color density, solid fills, or smooth grayscale transitions.
• Durable Metal Nozzle Plate: Robust, field-proven construction resists physical wear and maintains straight jet trajectories over extended production lifespans.
• Dual-Ported Manifold Design: Minimizes fluid volume inside the head to allow rapid ink flushing, fast color changes, and bubble elimination.
• Precise Drop-In Replacement Alignment: Built-in reference points facilitate accurate mechanical registration during installation.
• Integrated Diagnostics & Monitoring: Built-in thermal sensor and non-volatile memory track operating conditions and head parameters.

Technical Specifications

Operational Advisory & Installation Guidelines

• Trained Service Technician Required: Mounting, mechanical alignment, voltage calibration, and fluid line connections must strictly be completed by qualified printer technicians.
• Electrical Power Isolation: Always turn off system main power and disconnect carriage driver electronics before attaching or removing ribbon cables to prevent mainboard shorting.
• Electrostatic ESD Protection: Wear grounded anti-static ESD wrist straps during handling to shield internal piezo actuators and logic circuits from static discharge.
• System Priming & Filtration: Thoroughly flush ink supply lines with approved cleaning fluid and replace inline filters prior to connecting the new printhead to avoid immediate channel contamination.
• Non-Returnable Electronic Item Policy: Installed, unsealed, or ink-primed printheads cannot be returned or refunded due to chemical contamination risks and strict electronic safety regulations.

Compatible Printers or Equipment

Designed for wide-format, grand-format, and specialized industrial printing platforms utilizing the Fujifilm Dimatix Emerald QE-256/80 platform. (Please verify mechanical carriage brackets, driver board voltage capability, and printer firmware level prior to installation.)

Packaging and Delivery

• Packaging: Factory-sealed inside anti-static ESD shielding bags with shock-absorbing protective foam inside a heavy-duty packaging box.
• Order Processing: Dispatched rapidly following strict industrial packaging standards.
• Worldwide Shipping: Express international air freight options available worldwide.

Warranty and Customer Protection

• Authentic OEM Guarantee: Guaranteed 100% original authentic Spectra / Fujifilm Dimatix manufactured component.
• Delivery Inspection Guarantee: Inspect packaging upon arrival. Refuse shipment if physical damage to the outer box is observed.
• Unopened Return Policy: Returns accepted strictly for unopened, uninstalled items in original factory-sealed packaging.
