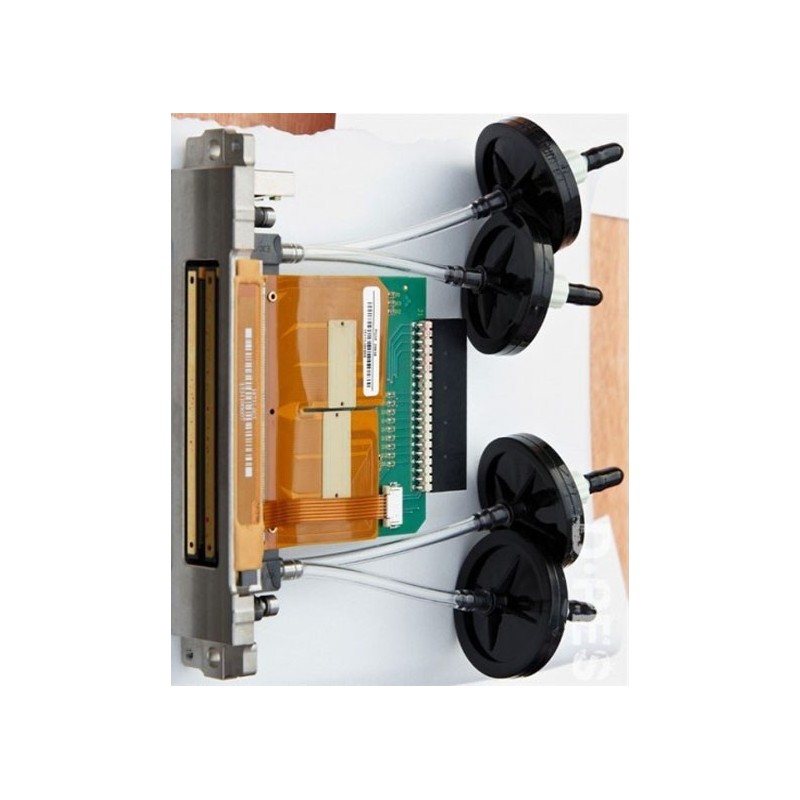

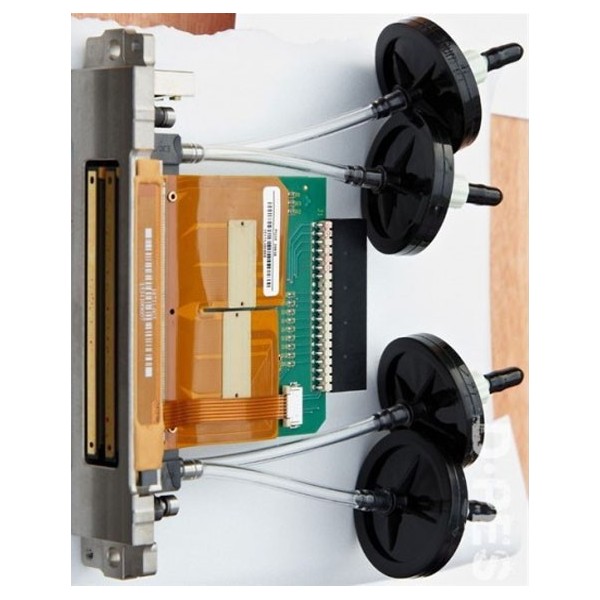

Genuine New Sapphire QS-256/10 AAA Print Head

Product Overview

The Genuine New Sapphire QS-256/10 AAA Print Head (Digital Print Part reference PPHFU13757) is an authentic, factory-original Performa™ Q-Class industrial piezoelectric drop-on-demand (DoD) printhead manufactured by Fujifilm Dimatix. Engineered for high-speed scanning architectures and demanding industrial print systems, this lightweight, thin-profile printhead delivers superior dot placement accuracy, minimal channel-to-channel crosstalk, and exceptional nozzle uniformity across a 64.77 mm (2.55 inches) print width.

The Sapphire QS-256/10 AAA features 256 independent ink channels arranged in a single nozzle row at 100 dots-per-inch (254 microns) spacing. Built with an inert, durable silicon nozzle plate and double-buffered driver chips, it supports rapid firing frequencies up to 50 kHz (16 kHz for maximum 30 picoliter drops) with a nominal drop velocity of 8 m/s. Powered by Fujifilm Dimatix’s proprietary VersaDrop™ jetting technology, the printhead dynamically generates an adjustable 10 pL to 30 pL drop volume in binary mode or a 10 pL fundamental drop in multi-drop grayscale mode. Equipped with precise mechanical registration points (accurate to within a few microns) and a dual-ported fluid interface, it enables close-nesting printhead arrays and supports continuous ink recirculation or fast flushing across UV-curable, organic solvent, and aqueous ink formulations.

Part Information

• Product Name: Genuine New Sapphire QS-256/10 AAA Print Head
• Brand / Manufacturer: Fujifilm Dimatix (Fujifilm)
• Series: Performa™ Q-Class Sapphire
• Product Model: QS-256/10 AAA
• Digital Print Part Code: PPHFU13757
• Product Type: Industrial Piezo Drop-on-Demand (DoD) Inkjet Printhead
• Condition: Original / Brand New
• Active Nozzles / Channels: 256 independent nozzles (1 row of 256)
• Print Width: 64.77 mm (2.55 in.)
• Nozzle Spacing: 254 microns (100 dpi single row)
• Jetting Technology: VersaDrop™ Binary & Grayscale Jetting
• Fundamental / Nominal Drop Size: 10 picoliters (10 pL)
• Variable Drop Range: 10 pL to 30 pL (Grayscale / Adjustable Binary)
• Nominal Drop Velocity: 8 meters per second (m/s)
• Maximum Firing Frequency: Up to 50 kHz (16 kHz for 30 pL drops)
• Operating Viscosity Range: 10 to 14 centipoise (cP)
• Thermal Management: Integrated internal temperature sensor (Operating up to 90°C)
• Fluidic Interface: Configurable dual-ported interface (O-ring face mounts or barbed fittings)
• Nozzle Plate Surface: Inert Silicon Nozzle Plate
• Ink Compatibility: UV-Curable, Organic Solvents, Aqueous Inks, and Maintenance Fluids

Key Features & Operational Advantages

• 100% Genuine Fujifilm Dimatix OEM: Authentic Q-Class factory-new unit (Part PPHFU13757) ensuring total waveform compatibility, superior dot placement, and production reliability.
• VersaDrop™ Jetting Technology: Enables flexible binary drop adjustment and multi-drop grayscale control from 10 pL to 30 pL without productivity bottlenecks.
• High 50 kHz Jetting Speed: High-frequency firing paired with double-buffered driver chips maximizes carriage travel speed and square-meter output.
• Micron-Level Precision Registration: Built-in mechanical reference points allow tight nesting densities for multi-head print bar configurations.
• Integrated Fluid & Thermal Controls: Built-in temperature sensor supports operation up to 90°C, while dual-ported fluid connections facilitate rapid flushing or continuous recirculation.
• Broad Ink Compatibility: Chemical-resistant silicon nozzle plate supports aggressive solvent, UV, and aqueous chemistry.

Technical Specifications

Operational Advisory & Installation Guidelines

• Qualified Field Service Technician Required: Mounting, head slant calibration, waveform parameter loading, and fluidic line connection must strictly be performed by certified wide-format technicians.
• Power Isolation Safety: Completely power off the main printing unit and disconnect main board supply prior to attaching or disconnecting ribbon cables to avoid driver chip damage.
• Electrostatic ESD Protection: Always wear grounded anti-static wrist straps during handling to protect internal logic circuits and piezo elements from static discharge.
• Fluidic Priming & Maintenance: Thoroughly flush ink lines with approved cleaning fluid and replace inline filters before connecting the printhead to prevent immediate contamination.
• Electronic Part Non-Returnable Notice: Installed, unsealed, or ink-primed printheads cannot be returned or refunded due to chemical contamination risks and electronic safety regulations.

Compatible Printers or Equipment

(Please verify carriage bracket design, fluid fitting types, and printer firmware level prior to installation.)

Packaging and Delivery

• Packaging: Factory-sealed inside anti-static ESD shielding bags with shock-absorbing protective foam inside a heavy-duty packaging box.
• Order Processing: Handled rapidly under strict industrial electronics packaging protocols.
• Worldwide Shipping: Express international air freight options available worldwide.

Warranty and Customer Protection

• Authentic OEM Guarantee: Guaranteed 100% original authentic Fujifilm Dimatix manufactured component.
• Delivery Inspection Guarantee: Inspect outer packaging immediately upon arrival. Refuse shipment if physical package damage is evident.
• Unopened Return Notice: Returns accepted strictly for unopened, uninstalled items in original factory-sealed packaging.
