Xaar 1003 GS40 Original OEM Printhead 40pL Greyscale
- Write a review
$1,100.00
Genuine Xaar factory-original 1003 GS40 piezo printhead with 1000 nozzles and 40 pL native drop. High-laydown greyscale head with TF Technology for special effects, textured finishes and intense colour.
Product Overview
The Xaar 1003 GS40 is the ultimate High Deposit industrial piezoelectric printhead engineered for applications requiring heavy ink laydown and high-viscosity fluid coverage. Featuring 1000 Optimised Geometry nozzles spanning a 70.5 mm print swathe at 360 npi native resolution, it supports dynamic greyscale operation with native 40 pL drops (up to 5 grey levels, effective volumes 40–160 pL). Powered by TF Technology® (continuous ink recirculation) and enhanced with XaarGuard™ nozzle plate protection, the GS40 excels at jetting heavily pigmented inks, glazes, tactile effects, and thick coatings without clogging or particle settling. Fully backward compatible with earlier 1001 GS40 and 1002 GS40 series. Factory-sealed original units deliver exceptional coverage uniformity and drop placement accuracy.
Part Information
- Brand: Xaar plc
- Product Name: Xaar 1003 GS40 Original OEM Printhead 40pL Greyscale
- Part Number / Reference: Xaar 1003 GS40
- Specific Variant: GS40 (Native 40 pL High Deposit Greyscale)
- Technology: Hybrid Side Shooter Piezoelectric Drop-on-Demand (DoD)
- Recirculation Mode: TF Technology™ (Continuous Ink Recirculation) & XaarGuard™ Protection
- Category: Xaar Printheads / 1003 Series High Laydown
- Ink Type Compatibility: Heavy Solvent, Oil-based, Ceramic Glazes, High-Viscosity Fluids, and UV-curable Inks

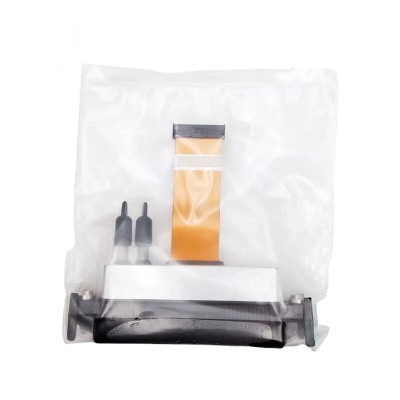

- Condition: 100% Genuine Original, Brand New, Factory Sealed
- Country of Origin: United Kingdom (UK)
Technical Specifications
| Specification Parameter | Details / Technical Values |
|---|---|
| Brand Manufacturer | Xaar plc |
| Active Nozzles & Rows | 1000 active nozzles (2 parallel rows of 500) |
| Print Swathe Width & Pitch | 70.5 mm swathe width | Nozzle pitch (interleaved): 70.5 μm |
| Nozzle Density & Geometry | 360 npi (nozzles per inch) | High-Deposit Optimised Geometry Nozzles |
| Native Drop Volume & Greyscale | 40 pL native (up to 5 grey levels, effective range 40–160 pL) |
| Drop Velocity & Firing Frequency | 6.0 m/s drop velocity | 6.0–12.0 kHz typical firing frequency |
| Physical Dimensions & Dry Weight | 125 x 30 x 60 mm (W x D x H) | Weight: 144 g (dry) |
| Ink Chemistry Compatibility | Heavy Solvent-based, Oil-based, Ceramic Inks, and UV-curable fluids |
| Continuous Recirculation (TF Technology) | Yes (Integrated Through-Flow continuous ink recirculation + XaarGuard™) |
Master Comparison Matrix (Xaar 100x Series)
| Product Name | Reference Model | Drop Mode | Drop Volume | Ink / Application Focus |
|---|---|---|---|---|
| Xaar 1001 GS12 Original OEM Printhead 12pL Greyscale | Xaar 1001 GS12 | Greyscale (8 Level) | 12 pL (12–84 pL) | Solvent, Oil, UV (Industrial Print) |
| Xaar 1001 GS6 Original OEM Printhead 6pL Greyscale | Xaar 1001 GS6 | Greyscale (8 Level) | 6 pL (6–42 pL) | Solvent, Oil (Fine Detail, Labels) |
| Xaar 1002 GS6 Original OEM Printhead 6pL Greyscale | Xaar 1002 GS6 | Greyscale (8 Level) | 6 pL (6–42 pL) | Solvent, Oil, UV (High Precision) |
| Xaar 1002 GS12 Original OEM Printhead 12pL Greyscale | Xaar 1002 GS12 | Greyscale (8 Level) | 12 pL (12–84 pL) | Solvent, Oil, UV (Versatile Industrial) |
| Xaar 1002 AMp Original OEM Printhead AMp Binary | Xaar 1002 AMp | Binary / Small Drop | 1.5–3 pL (Ultra-Fine) | Aqueous Fluids, Micro-manufacturing |
| Xaar 1002 GS40 Original OEM Printhead 40pL Greyscale | Xaar 1002 GS40 | Greyscale High Deposit | 40 pL (40–160 pL) | Heavy Coverage, Ceramics, Coatings |
| Xaar 1003 GS6 Original OEM Printhead 6pL Greyscale | Xaar 1003 GS6 | Greyscale + XaarGuard | 6 pL (6–42 pL) | Solvent, Oil (Flagship High Precision) |
| Xaar 1003 GS12 Original OEM Printhead 12pL Greyscale | Xaar 1003 GS12 | Greyscale (8 Level) | 12 pL (12–84 pL) | Solvent, Oil, UV (High Performance Universal Standard) |
| Xaar 1003 AMp Original OEM Printhead AMp | Xaar 1003 AMp | Advanced Manufacturing | 1.5–3 pL (Pico-drop) | Optoelectronics, Semiconductors, Aqueous Fluids |
| Xaar 1003 AMx Original OEM Printhead AMx | Xaar 1003 AMx | Advanced Manufacturing (6 Grey Levels) | 6–42 pL (Modulated) | Display, PCB, Semiconductor, Solar & Functional Fluids |
| Xaar 1003 GS6U Original OEM Printhead 6pL Greyscale UV | Xaar 1003 GS6U | Greyscale UV Specific | 6 pL (6–42 pL) | UV-Curable Inks (Fine Text, Labels) |
| Xaar 1003 GS12U Original OEM Printhead 12pL Greyscale UV | Xaar 1003 GS12U | Greyscale UV Specific | 12 pL (12–84 pL) | UV-Curable Inks (Standard Industrial) |
| ★ Xaar 1003 GS40 Original OEM Printhead 40pL Greyscale (This Product) | Xaar 1003 GS40 | Greyscale High Deposit | 40 pL (40–160 pL) | Heavy Coverage, Ceramics, Tactile Varnishes, High-Viscosity Coatings |
| Xaar 1003 GS12C Original OEM Printhead 12pL Greyscale Ceramics | Xaar 1003 GS12C | Greyscale Ceramic Specific | 12 pL (12–84 pL) | Ceramic Inks / Highly Abrasive Media |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting cables.
- Backward Compatibility Handling: Fully backward compatible with systems using Xaar 1001 GS40 or 1002 GS40. Ensure proper drive voltage waveforms and fluid heating parameters are correctly loaded into system drivers.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models |
|---|---|
| Xaar Systems & Upgrades | Industrial inkjet systems designed for Xaar 1003 GS40; systems previously using Xaar 1001 GS40 or 1002 GS40 (EFI Cretaprint, System, Kerajet, Hope, Barberan, KBA-Kammann, and custom single-pass machinery); heavy-coat packaging, ceramic tile glazes, glass decoration, and textured UV varnish printers. |
Terms, Warranty & Customer Protection
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.
Xaar 1003 GS40
233 Items
