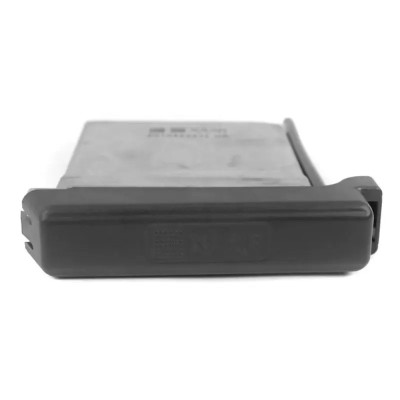

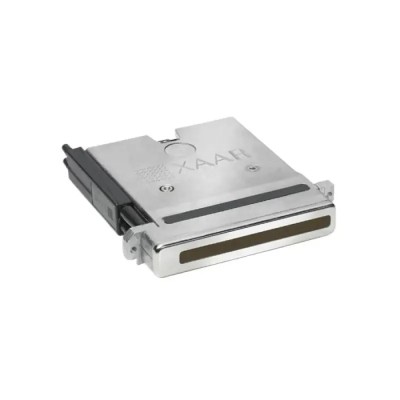

Xaar 501 GS8 UR Printhead UV-Curable Recirculation
- Write a review
$870.00
Genuine original Xaar 501 GS8 UR piezoelectric printhead with TF Technology recirculation optimised for UV-curable inks delivering maximum reliability in industrial wide-format graphics and coding production.
Product Overview

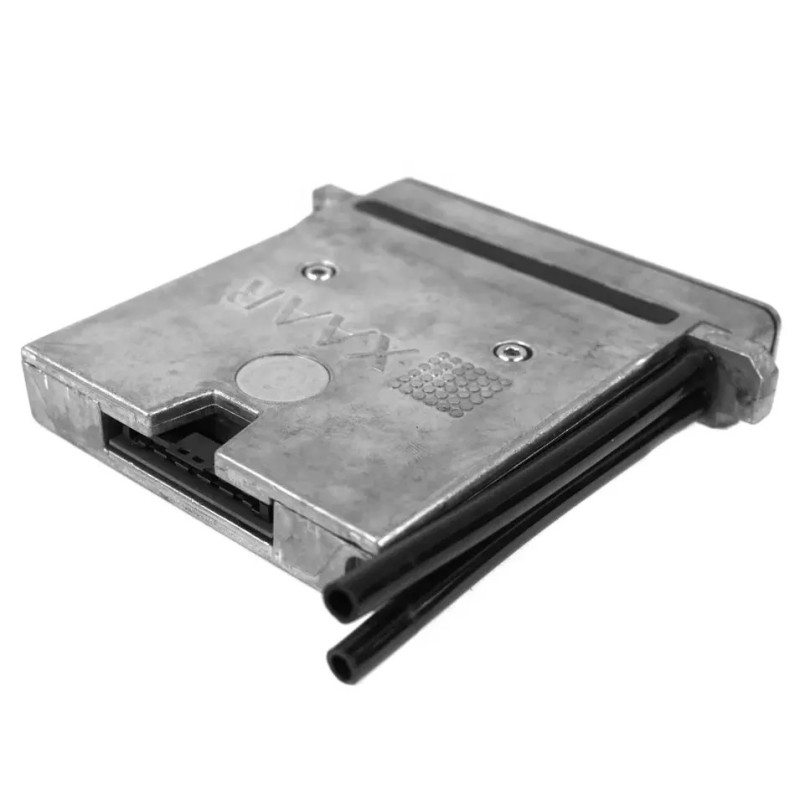

The Genuine Xaar 501 GS8 UR Printhead is a high-performance piezoelectric drop-on-demand printhead specifically engineered for UV-Curable ink applications with Ink Recirculation (TF Technology). Built upon Xaar’s PrecisionPlus actuator architecture and featuring High Flow TF Technology along with Ultra High Viscosity Technology, it enables continuous ink recirculation directly behind the nozzle plate. This prevents pigment sedimentation, eliminates micro-bubbles, ensures instant priming, and maintains optimal nozzle temperature and health in demanding continuous UV production settings. Featuring 500 active nozzles in a single-row layout at 180 npi native density across a 70.5 mm print swathe, it supports greyscale firing modes from 8 to 40 pL drop volumes across 6 grey levels. Constructed with UV-resistant materials and equipped with a WFG Nozzle Guard, it delivers maximum operational uptime and exceptional image detail in industrial UV inkjet platforms.
Part Information
- Brand: Xaar
- Product Name: Xaar 501 GS8 UR Printhead UV-Curable Recirculation
- Part Number / Reference: XP501 GS8 UR
- Specific Variant: GS8 Fine Drop (8–40 pL) / UV-Curable Recirculation (UR / UVR)
- Technology: Piezoelectric Drop-on-Demand (PrecisionPlus)
- Recirculation Technology: TF Technology (High Flow) & Ultra High Viscosity Technology
- Category: Xaar Printheads
- Ink Type Compatibility: UV-Curable Inks
- Condition: 100% Genuine Original, Brand New, Factory Sealed
- Country of Origin: United Kingdom
Technical Specifications
| Specification Parameter | Details / Technical Values (GS8 UR Specific) |
|---|---|
| Brand Manufacturer | Xaar plc |
| SKU / Reference | XP501 GS8 UR |
| Active Nozzles & Density | 500 active nozzles; 180 npi native resolution (1 row) |
| Print Swathe Width & Pitch | 70.5 mm swathe; Nozzle pitch: 141.1 µm |
| Ink & Fluid Configuration | UV-curable ink (Recirculating / High Flow TF) |
| Drop Volume & Velocity | 8 to 40 pL (6 Grey levels); Drop velocity: 5 m/s |
| Maximum Firing Frequency | Up to 8 kHz (Greyscale) / Up to 27 kHz (Binary) |
| In-line Filter | No (Requires external fluid line filtration) |
| Advanced Technologies | PrecisionPlus, TF Technology (High Flow), Ultra High Viscosity, WFG Nozzle Guard, AcuChp |
| Dimensions & Dry Weight | 104 x 17 x 100 mm; Approx. 205 g |
Xaar 501 Variant Matrix (Current Product Highlighted)
| Ink & Recirculation Type | GS8 Variant (8 - 40 pL) | GS15 Variant (15 - 75 pL) |
|---|---|---|
| Oil-Based Standard (O) | 501 GS8 O | 501 GS15 O |
| Oil-Based + Recirculation (OR) | 501 GS8 OR | 501 GS15 OR |
| Solvent-Based Standard (S) | 501 GS8 S | 501 GS15 S |
| Solvent-Based + Recirculation (SR) | 501 GS8 SR | 501 GS15 SR |
| UV-Curable Standard (U / UV) | 501 GS8 U / UV | 501 GS15 U / UV |
| UV-Curable + Recirculation (UR / UVR) | ★ 501 GS8 UR (This Product) | 501 GS15 UR / UVR |
Drop Size Specification Comparison (GS8 vs GS15)
| Specification Parameter | GS8 - Fine Precision (This Product) | GS15 - Standard Industrial |
|---|---|---|
| Native Base Drop Size | 8 pL | 15 pL |
| Greyscale Volume Range | 8 pL – 40 pL | 15 pL – 75 pL |
| Greyscale Levels | Up to 6 Levels | Up to 6 Levels |
| Max Firing Frequency | Up to 8 kHz (Greyscale) / 27 kHz (Binary) | Up to 10 kHz (Greyscale) / 24 kHz (Binary) |
| Print Quality & Focus | High-resolution UV graphics, continuous smooth tones, sharp text, and micro-details. | Heavy UV ink laydown, fast solid coverage, and robust industrial marking. |
| Primary Applications | Continuous UV inkjet production, high-end packaging printing, UV coding. | Heavy industrial UV coding, corrugated box printing, primary packaging. |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are highly sensitive to static discharge.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting flexible flat cables (FFC).
- Cable Replacement Protocol: It is strongly recommended to replace flexible flat cables (FFC) and related connectors with new genuine parts during every printhead installation to ensure reliable signal integrity.
- Recirculation Fluid System Setup & Light Shielding: Ensure proper loop connections for High Flow TF Technology recirculation. Verify external ink filtration before the inlet, as this model lacks an internal in-line filter. Protect nozzles from ambient light and stray UV curing radiation to avoid premature curing inside the printhead.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models & Systems |
|---|---|
| Xaar OEM Platforms | Industrial OEM systems designed for Xaar 501 GS8 UR UV recirculating series including UV-curable wide-format graphics printers, coding and marking systems, packaging line printers, and continuous industrial inkjet platforms utilizing Xaar 501 GS8 UR architecture. |
| Target Fluid Circuit | UV-Curable Inks (Continuous Recirculating Fluid System via High Flow TF Technology). |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician following Xaar recommended procedures.
- Final Sale Conditions: Once installed or exposed to operational fluids/ink, items are non-returnable. Please confirm model compatibility prior to opening.
XP501 GS8 UR
118 Items
