Xaar 128/80 Original OEM Printhead 80pL Binary
- Write a review
$150.00
Genuine Xaar factory-original 128/80 piezo printhead with 128 nozzles delivering 80 pL drops. Lightweight binary workhorse for coding, marking and wide-format graphics with oil and solvent inks.
Product Overview

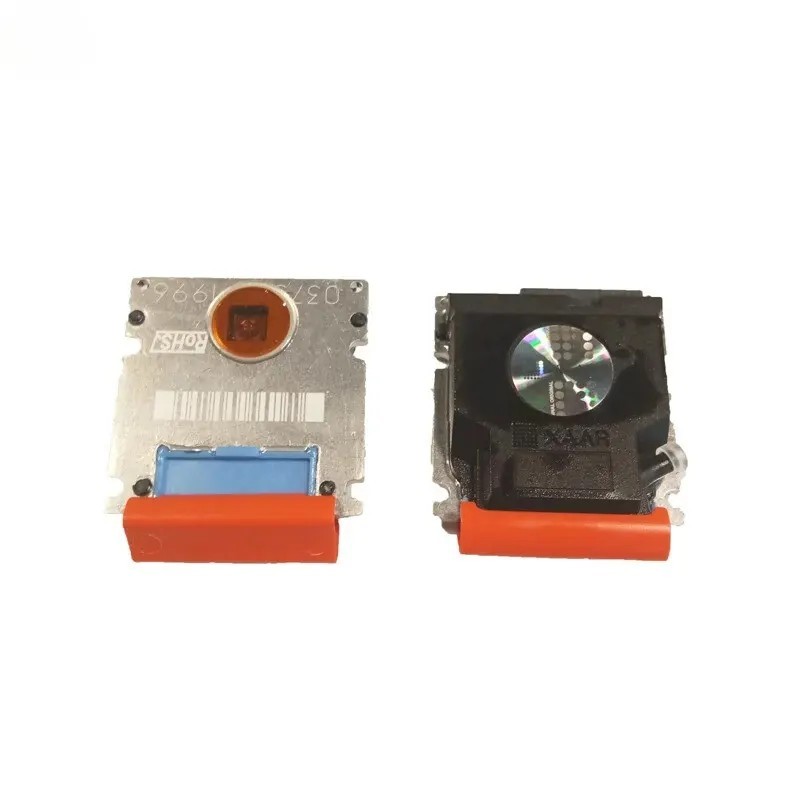

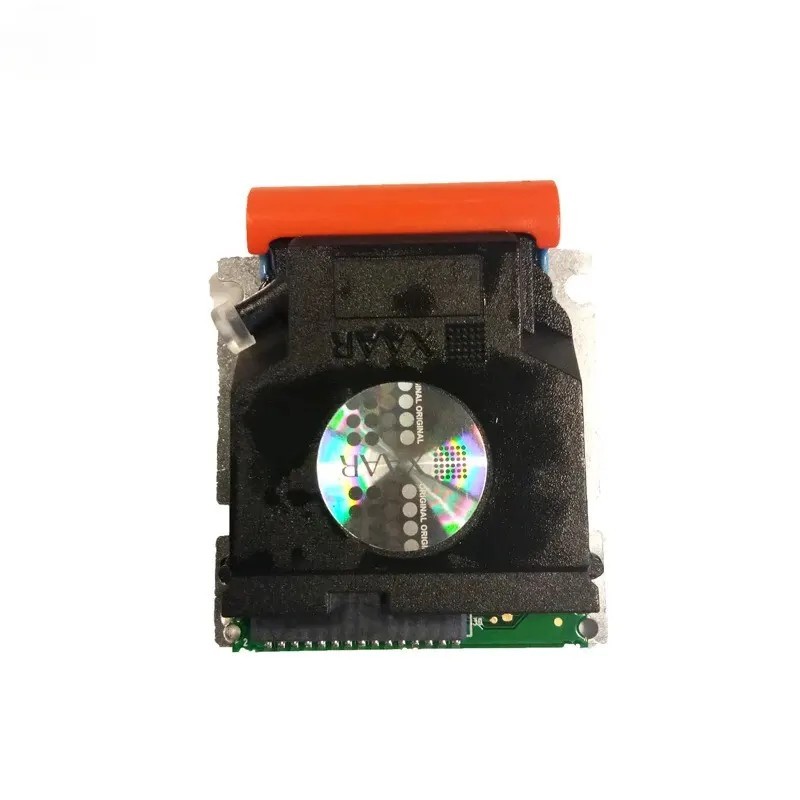

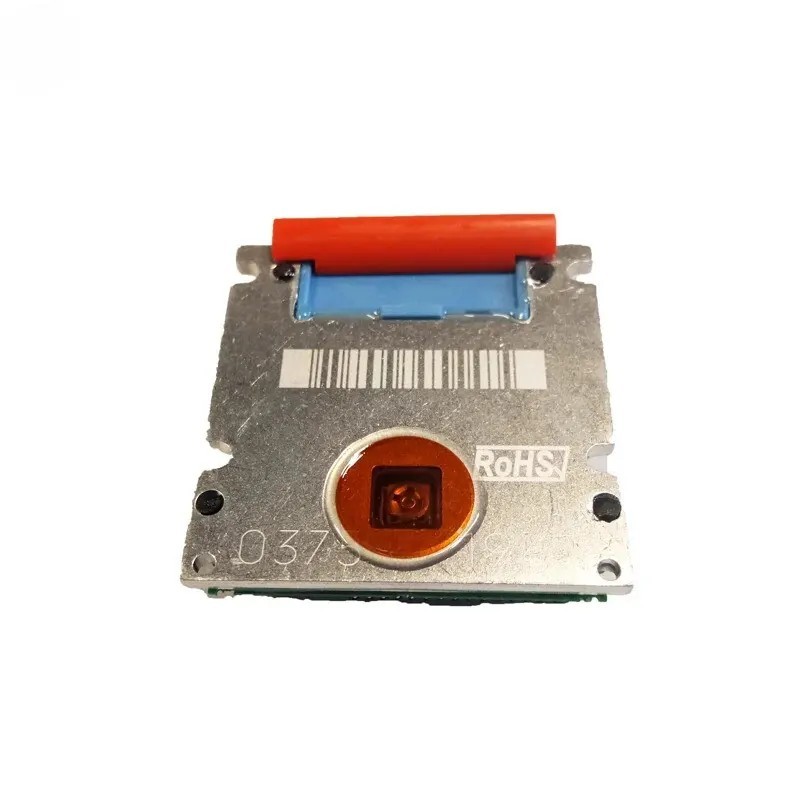

The Xaar 128/80 is a compact piezoelectric drop-on-demand printhead with 128 active nozzles spanning 17.4 mm at 185 npi. It produces a consistent 80 pL drop volume at typical frequencies of 4.25–5.5 kHz. Weighing only 15.5 g, it is ideal for weight-critical designs. Compatible with approved oil-based and solvent inks. Factory-sealed original units provide proven reliability in coding & marking and wide-format applications.
Part Information
- Brand: Xaar
- Product Name: Xaar 128/80 Original OEM Printhead 80pL Binary
- Part Number / Reference: XJ128/80
- Category: Xaar Printheads
- Condition: 100% Genuine Original, Brand New, Factory Sealed
Technical Specifications
| Specification Parameter | Details / Technical Values |
|---|---|
| Brand Manufacturer | Xaar |
| SKU / Reference | XJ128/80 |
| Active Nozzles | 128 active nozzles |
| Print Swathe Width | 17.4 mm |
| Nozzle Pitch & Density | 137.1–137.3 μm | 185 npi |
| Drop Volume & Velocity | 80 pL | 5 m/s |
| Firing Frequency & Mode | Typical 4.25–5.5 kHz | Binary |
| Dry Weight & Dimensions | 15.5 g | 38 x 12 x 41 mm (W x D x H) |
| Ink Compatibility | Oil-based, solvent |
Master Comparison Matrix (Xaar 126 & 128 Series)
| Product Name | Reference Model | Drop Mode | Drop Volume | Ink / Feature Focus |
|---|---|---|---|---|
| Xaar 126/35 Original OEM Printhead 35pL Binary | XJ126/35 | Binary | 35 pL | Solvent, Oil (Fine Detail Graphics) |
| Xaar 126/50 Original OEM Printhead 50pL Binary | XJ126/50 | Binary | 50 pL | Solvent, Oil (Standard Wide Format) |
| Xaar 126/80 Original OEM Printhead 80pL Binary | XJ126/80 | Binary | 80 pL | Solvent, Oil (Heavy Coverage / Outdoor) |
| Xaar 128/40 Original OEM Printhead 40pL Binary | XJ128/40 | Binary | 40 pL | Solvent, Oil, Dye-Sub (Standard Detail) |
| Xaar 128/40W Original OEM Printhead 40pL Binary Wetting | XJ128/40W | Binary (Wetting) | 40 pL | Solvent, Oil, UV (Enhanced Wetting internal fluid handling) |
| ★ Xaar 128/80 Original OEM Printhead 80pL Binary (This Product) | XJ128/80 | Binary | 80 pL | Solvent, Oil (High Speed Outdoor Signage) |
| Xaar 128/80W Original OEM Printhead 80pL Binary Wetting | XJ128/80W | Binary (Wetting) | 80 pL | Solvent, Oil (Enhanced Internal Wetting / Coding & Marking) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting cables.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models |
|---|---|
| Xaar | Coding and marking systems; wide-format graphics printers; industrial printers designed for Xaar 128/80; general solvent and oil-based platforms supporting Xaar 128 series |
Terms, Warranty & Customer Protection
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.
