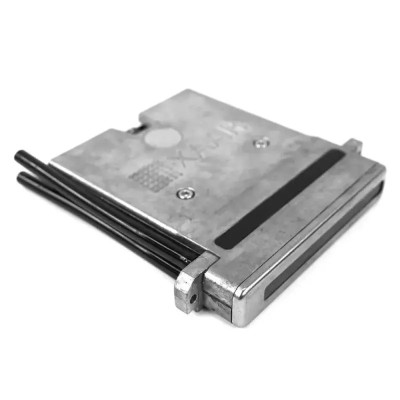

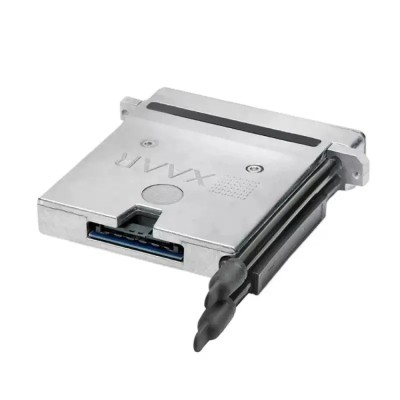

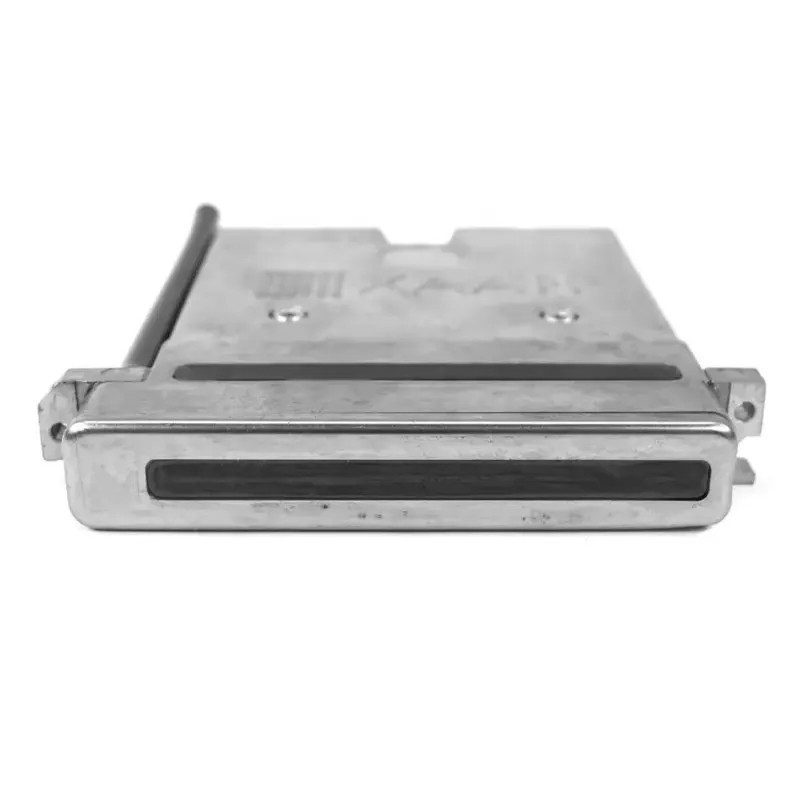

Xaar 501 GS15 S Original OEM Printhead Solvent-Based Standard GS15 (15–75 pL)

Xaar 501 GS15 S Original OEM Printhead Solvent-Based Standard GS15 (15–75 pL)

Write a review

$820.00

Genuine Xaar factory-original 501 GS15 S piezo printhead optimised for solvent-based inks with PrecisionPlus architecture. Delivers flexible 15–75 pL greyscale drops for high-quality graphics, text and coding on industrial solvent inkjet systems.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Genuine Xaar 501 GS15 S Printhead is a robust bulk piezoelectric drop-on-demand printhead built on Xaar’s PrecisionPlus Hybrid Side Shooter architecture. Engineered specifically for solvent-based ink applications in standard vacuum/gravity-fed systems, it features 500 individually lasered nozzles spanning a 70.5 mm print swathe at native 180 npi density. Supporting greyscale operation with drop volumes from 15 to 75 pL across 6 grey levels, it delivers optimal drop formation, precise placement, and long throw distance for high-speed solvent graphics and industrial marking. Equipped with a solvent-resistant WFG nozzle guard, an integrated last-chance filter, pulsed TF Technology for on-demand priming during idle periods, and AcuChp technology, this unit guarantees high operational reliability and long service life in demanding solvent production environments.

Part Information

Brand: Xaar
Product Name: Xaar 501 GS15 S Original OEM Printhead Solvent-Based Standard GS15 (15–75 pL)
Part Number / Reference: XP501GS15S
Specific Variant: GS15 Industrial Drop (15–75 pL) / Solvent-Based Standard (S)
Technology: Piezoelectric Drop-on-Demand (PrecisionPlus Hybrid Side Shooter)
Recirculation Technology: TF Technology (Pulsed Mode)
Category: Xaar Printheads
Ink Type Compatibility: Solvent-Based Inks
Condition: 100% Genuine Original, Brand New, Factory Sealed
Country of Origin: United Kingdom

Technical Specifications

Specification Parameter	Details / Technical Values (GS15 S Specific)
Brand Manufacturer	Xaar plc
SKU / Reference	XP501GS15S
Active Nozzles & Density	500 active nozzles; 180 npi native resolution (1 row)
Print Swathe Width & Pitch	70.5 mm swathe; Nozzle pitch: 141.1 µm; Nozzle stagger: 47 µm
Ink & Fluid Configuration	Solvent-based inks (Standard Vacuum/Gravity Fed; Pulsed TF Mode)
Drop Volume & Velocity	15 to 75 pL (Up to 6 Grey levels); Drop velocity: approx. 5–7 m/s
Firing Frequency	Typical 7.0 kHz (Max DPD)
In-line Filter & Fittings	Yes (Integrated last-chance filter); Standard hose-barb fittings
Advanced Features	PrecisionPlus, Pulsed TF Technology, WFG Nozzle Guard, AcuChp, ICM option
Dimensions & Dry Weight	104 x 17 x 113 mm; Approx. 208 g

Xaar 501 Variant Matrix (Current Product Highlighted)

Ink & Recirculation Type	GS8 Variant (8 - 40 pL)	GS15 Variant (15 - 75 pL)
Oil-Based Standard (O)	501 GS8 O	501 GS15 O
Oil-Based + Recirculation (OR)	501 GS8 OR	501 GS15 OR
Solvent-Based Standard (S)	501 GS8 S	★ 501 GS15 S (This Product)
Solvent-Based + Recirculation (SR)	501 GS8 SR	501 GS15 SR
UV-Curable Standard (U / UV)	501 GS8 U / UV	501 GS15 U / UV
UV-Curable + Recirculation (UR / UVR)	501 GS8 UR	501 GS15 UR / UVR

Drop Size Specification Comparison (GS15 vs GS8)

Specification Parameter	GS15 - Heavy Industrial (This Product)	GS8 - Fine Precision
Native Base Drop Size	15 pL	8 pL
Greyscale Volume Range	15 pL – 75 pL	8 pL – 40 pL
Greyscale Levels	Up to 6 Levels	Up to 6 Levels
Drop Velocity	5–7 m/s (Long Throw Distance)	5 m/s
Print Focus & Performance	High coverage, solid color fills, dark text, sharp barcodes, and high-speed outdoor graphics.	High-resolution graphics, smooth gradients, micro-text, and fine graphic details.
Primary Applications	Continuous solvent graphics, outdoor signage, industrial solvent coding/marking systems.	High-resolution solvent graphics, indoor banner printing, fine packaging details.

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are highly vulnerable to static damage.
Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting standard electrical cables.
Fluid Compatibility Strict Warning: This head is configured for Solvent-Based inks ONLY. Do not flush or introduce oil-based, water-based, or UV-curable inks into this unit, as doing so will permanently damage internal seals.
Integrated Last-Chance Filter: Built-in filter safeguards nozzles from micro-particulates; ensure primary line filters in the printer system are maintained to prolong head life.
Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols.

Compatible Models & Systems

Brand / Integration	Compatible Models & Systems
Wit-Color	Ultra 2000 and compatible solvent printer platforms.
Legacy Upgrades	Printers upgraded from discontinued Xaar Proton 35pl platforms via ICM interface module.
General OEM Platforms	General wide-format graphics and industrial solvent coding/marking printers designed for Xaar 501 S series configurations.

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician following Xaar recommended procedures.
Final Sale Conditions: Once installed or exposed to operational fluids/ink, items are non-returnable. Please confirm model compatibility prior to opening.

Reference XP501GS15S
