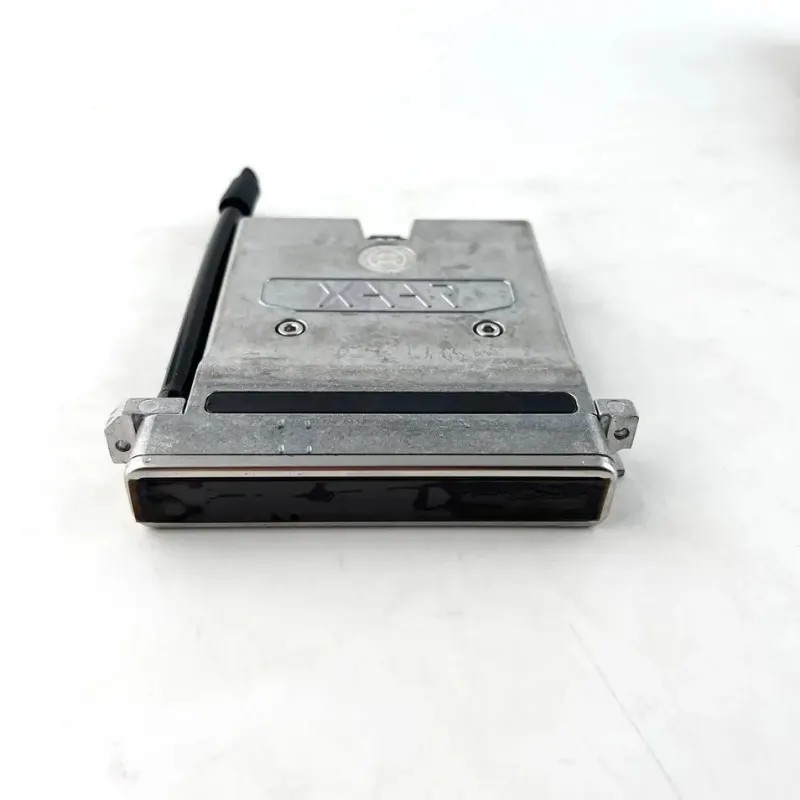

Xaar 502 GS8 O Printhead Oil-Based Standard
- Write a review
$945.00
Genuine original Xaar 502 GS8 O piezoelectric printhead engineered for reliable high-quality industrial printing with oil-based inks in coding, marking, packaging and graphics applications.
Product Overview
The Genuine Xaar 502 GS8 O is a high-precision greyscale piezoelectric drop-on-demand printhead engineered for industrial coding, marking, and product printing applications using oil-based inks. Featuring a native base drop size of 8 pL (greyscale range 8–40 pL across up to 6 levels), the GS8 variant excels at producing high-contrast fine text, crisp 1D/2D barcodes, and detailed graphics on porous and semi-porous packaging substrates. With 500 active nozzles delivering a native 180 npi resolution across a wide 70.5 mm print swathe, it reduces printhead stitching requirements and maximises line throughput. Built on Xaar’s PrecisionPlus actuator architecture, the Xaar 502 GS8 O ensures exceptional drop placement accuracy, uniform drop formation, and robust performance in demanding production environments.
Part Information
- Brand: Xaar
- Model / Variant: 502 GS8 O
- Product Type: Industrial Piezoelectric Inkjet Printhead
- Technology: Piezoelectric Drop-on-Demand (PrecisionPlus Architecture)
- Ink Compatibility: Oil-Based Inks
- Recirculation Type: Standard (Non-Recirculating)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: United Kingdom
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Xaar plc |
| Active Nozzles | 500 |
| Native Base Drop Size | 8 pL |
| Greyscale Drop Range | 8 pL – 40 pL (Up to 6 levels) |
| Native Resolution / Nozzle Density | 180 npi |
| Print Swathe Width | 70.5 mm |
| Maximum Firing Frequency | Up to 9.5 kHz |
| Drop Velocity | Approx. 5–7 m/s (ink dependent) |
| Dimensions (W × D × H) | 104 × 17 × 100 mm |
| Dry Weight | Approx. 205 g |
| Key Features | PrecisionPlus Actuator, XaarGuard Nozzle Protection, AcuChp, Integrated Filter |
Xaar 502 Complete Variant Matrix (All Drop Sizes & Ink Configurations)
| Ink & Recirculation Type | GS8 Variant (8 - 40 pL) | GS15 Variant (15 - 75 pL) | GS40 Variant (40 - 200 pL) |
|---|---|---|---|
| Oil-Based Standard (O) | 502 GS8 O (This Product) | 502 GS15 O | 502 GS40 O |
| Oil-Based + Recirculation (OR) | 502 GS8 OR | 502 GS15 OR | 502 GS40 OR |
| Solvent-Based Standard (S) | 502 GS8 S | 502 GS15 S | 502 GS40 S |
| Solvent-Based + Recirculation (SR) | 502 GS8 SR | 502 GS15 SR | 502 GS40 SR |
| UV-Curable Standard (UV) | 502 GS8 UV | 502 GS15 UV | 502 GS40 UV |
| UV-Curable + Recirculation (UVR) | 502 GS8 UVR | 502 GS15 UVR | 502 GS40 UVR |
Xaar 502 Drop Size Specification Comparison (GS8 vs GS15 vs GS40)
| Specification Parameter | GS8 (Fine Precision) | GS15 (Standard Coding) | GS40 (High Coverage) |
|---|---|---|---|
| Native Base Drop Size | 8 pL | 15 pL | 40 pL |
| Greyscale Volume Range | 8 pL – 40 pL | 15 pL – 75 pL | 40 pL – 200 pL |
| Greyscale Levels | Up to 6 Levels | Up to 6 Levels | Up to 6 Levels |
| Max Firing Frequency | Up to 9.5 kHz | Up to 9.0 kHz | Up to 7.0 kHz |
| Print Resolution & Quality | Highest resolution for fine text, 2D barcodes, sharp graphics. | Balanced density and speed for general packaging and outer cartons. | High opacity, dark substrate coverage, and heavy ink laydown. |
| Primary Applications | Small character coding, sharp logos, high-density 1D/2D barcodes, labels. | Large character marking, secondary corrugated box printing, product coding. | Porous outer cases, heavy ink laydown, dark background printing, wood/laminates. |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe mat when handling the printhead. Piezo actuators are highly sensitive to static voltage spikes.
- Power Isolation Warning: Fully disconnect printer power before attaching or removing FFC ribbon cables or fluid connections.
- Cable Replacement Protocol: Always install brand-new flexible flat cables (FFC) when replacing the printhead to maintain signal integrity and avoid electrical short circuits.
- Fluid Compatibility: Use only approved oil-based industrial inks. Ensure proper fluid filtration and viscosity control prior to priming.
- Orientation Flexibility: Supports horizontal, vertical, and angled mounting configurations depending on packaging line requirements.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Compatible with industrial coding & marking systems, secondary packaging printers, and OEM coding platforms integrated with Xaar 502/50X drivers (e.g., MapleJet and equivalent industrial coding systems). |
| Primary Applications | High-resolution barcode printing (1D/2D), fine text, logos, batch codes, and late-stage product identification on porous cardboard boxes and outer cartons. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-sealed original product. Verified for authenticity and condition before dispatch.
- Store Warranty Policy: 30 working days warranty covering factory manufacturing defects. Claims require a full unboxing video and a professional installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to ink, the unit is non-returnable. Please verify product variant and printer system compatibility before unsealing.
