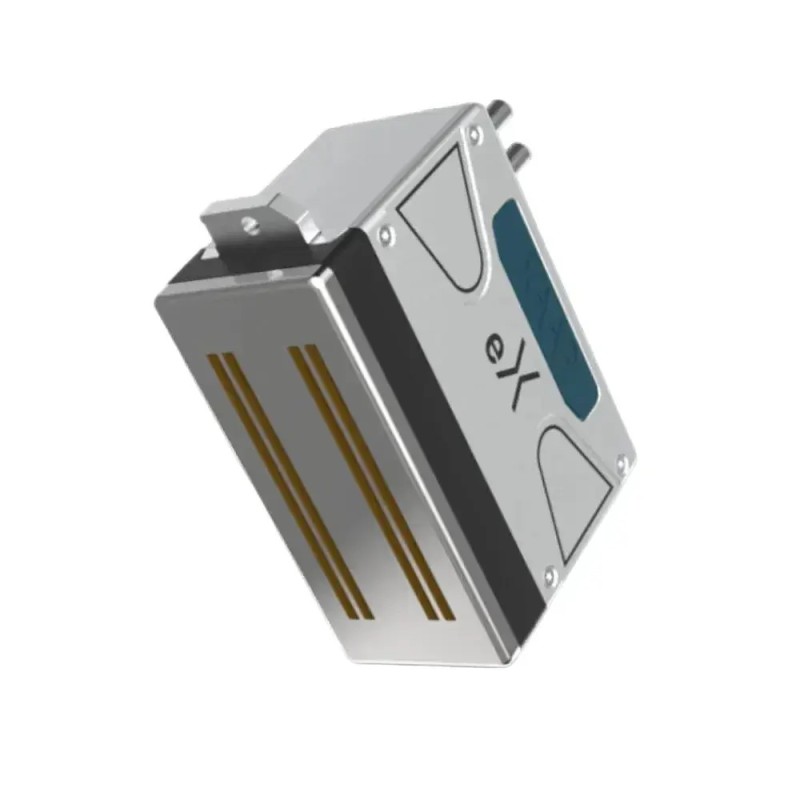

Xaar eX Original OEM Printhead
The Xaar eX is a high-performance industrial piezoelectric inkjet printhead engineered specifically for advanced UV coating applications on next-generation batteries, particularly prismatic and rectangular cells. With 2,000 active nozzles at 720 npi and a 70.52 mm print swathe, it delivers superior throughput and uniform coating thickness in demanding production environments.
Featuring Xaar’s complete technology suite — TF Technology® continuous ink recirculation, Ultra High Viscosity Technology (up to 100 cP at jetting temperature), High Laydown Technology, AcuChp Technology and SureFlow self-cleaning — the Xaar eX enables precise, high-volume deposition of high-viscosity functional fluids while maintaining exceptional reliability and print uniformity.
This genuine OEM factory-sealed unit is optimised for high-speed single-pass coating of prismatic batteries, offering significantly higher laydown capability compared to the Nitrox eX variant.
Part Information
| Product Name |
Xaar eX Original OEM Printhead |
| Brand |
Xaar plc (United Kingdom) |
| Category |
Industrial Piezoelectric Inkjet Printhead – Functional Coatings (Battery) |
| Condition |
100% Genuine Original OEM – Factory Sealed, Brand New, Never Used or Refurbished |
| Country of Origin |
United Kingdom |
| Ink / Fluid Type |
UV battery coatings and high-viscosity functional fluids (up to 100 cP) |
| Drop Mode |
Greyscale (up to 8 levels) – 12 pL or 40 pL |
| Key Technologies |
TF Technology®, Ultra High Viscosity, High Laydown, AcuChp, SureFlow |
Technical Specifications
| Parameter |
Specification |
| Active Nozzles |
2,000 |
| Print Swathe Width |
70.52 mm |
| Nozzle Density |
720 npi |
| Number of Fluid Paths |
Up to 2 |
| Drop Sizes |
12 pL or 40 pL |
| Grey Levels |
Up to 8 |
| Maximum Firing Frequency |
36 kHz (12 pL) / 24 kHz (40 pL) |
| Maximum Productivity |
44 g/m² (12 pL) / 85 g/m² (40 pL) @ 1.3 g/cm³ |
| High Laydown Capability |
Up to 240 g/m² |
| Maximum Viscosity at Jetting Temperature |
100 cP |
| Maximum Operating Temperature |
65 °C |
| Key Technologies |
TF Technology®, Ultra High Viscosity Technology, High Laydown Technology, AcuChp, SureFlow, In-line filter |
* All technical data are derived from official Xaar documentation. Actual performance depends on fluid chemistry, waveform and system integration.
Xaar eX Series Comparison
| Model |
Active Nozzles |
Resolution |
Primary Application Focus |
| Xaar Nitrox eX |
1,000 |
360 npi |
Cylindrical battery coatings – compact & orientation-flexible |
| Xaar eX ★ |
2,000 |
720 npi |
Prismatic / rectangular battery coatings – higher throughput & laydown |
★ Highlighted row indicates the current product. Both models feature Ultra High Viscosity Technology (up to 100 cP) and are optimised for UV battery coating fluids. The Xaar eX offers significantly higher productivity and laydown capability.
Technical Precision & Operational Advisory
CRITICAL SAFETY & HANDLING WARNINGS
- ESD Protection: The printhead is extremely sensitive to electrostatic discharge. Always use a properly grounded wrist strap, anti-static work mat, and maintain relative humidity between 40–60% RH. Never touch the electrical connectors or nozzle plate without ESD protection.
- Power Isolation & Sequencing: Ensure correct power sequencing is followed according to Xaar guidelines. Use only approved driver electronics and power supplies. Incorrect voltage application or hot-plugging can permanently damage the actuator.
- Meniscus Pressure / Sub-Atmospheric Control: Maintain stable negative (sub-atmospheric) meniscus pressure at all times. Incorrect pressure settings can cause nozzle flooding, air ingestion or deprime. Always follow the pressure parameters recommended for the specific fluid in use.
- High-Viscosity Fluid Handling: The Xaar eX is designed for fluids up to 100 cP. Ensure proper temperature control, filtration and continuous recirculation (TF Technology) to prevent sedimentation and nozzle blockages.
Failure to observe these operational guidelines may result in irreversible damage that is not covered under warranty. Installation and commissioning should only be performed by trained technicians experienced with Xaar eX / Nitrox systems.
Compatible Models & Systems
The Xaar eX is specifically engineered for advanced manufacturing applications, particularly:
- UV coating systems for prismatic and rectangular next-generation batteries (EV / energy storage)
- High-throughput functional fluid deposition lines requiring high-viscosity jetting and high laydown
- Industrial platforms supporting the Xaar eX mechanical and electrical interface
- Systems requiring maximum coating productivity and uniform thickness on flat or large-area substrates
Full electrical and mechanical compatibility must be verified against the specific machine model, firmware and waveform set before installation. Contact technical support with your machine make and model for confirmation.
Terms, Warranty & Customer Protection
| Pre-Installation Guarantee |
Every unit is guaranteed 100% genuine, brand-new, and factory-sealed. The product is warranted free from manufacturing defects when received with the original factory seal intact and prior to any installation or fluid introduction. |
| Video Unboxing Requirement |
Any claim for damage, shortage, or non-conformity must be supported by a continuous, unedited video recording of the unboxing process, starting from the outer packaging and clearly showing the serial number / barcode. Claims submitted without a complete unboxing video will not be processed. |
| Non-Returnable Policy |
Once the factory seal is broken, the printhead is installed, or any fluid is introduced into the device, the product becomes strictly non-returnable and non-refundable. This policy applies to all industrial piezoelectric printheads due to their extreme sensitivity to contamination and operational history. |
| Storage & Handling |
Store in the original sealed packaging at 10–30 °C and 40–60% relative humidity. Protect from strong magnetic fields, direct sunlight, and electrostatic sources. Do not open the seal until the printhead is ready for immediate installation. |
100% Genuine Xaar OEM Product – Factory Sealed – Authenticity Guaranteed
