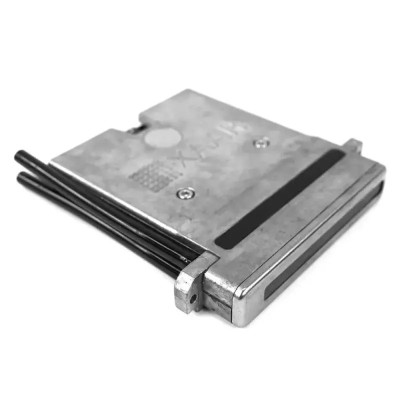

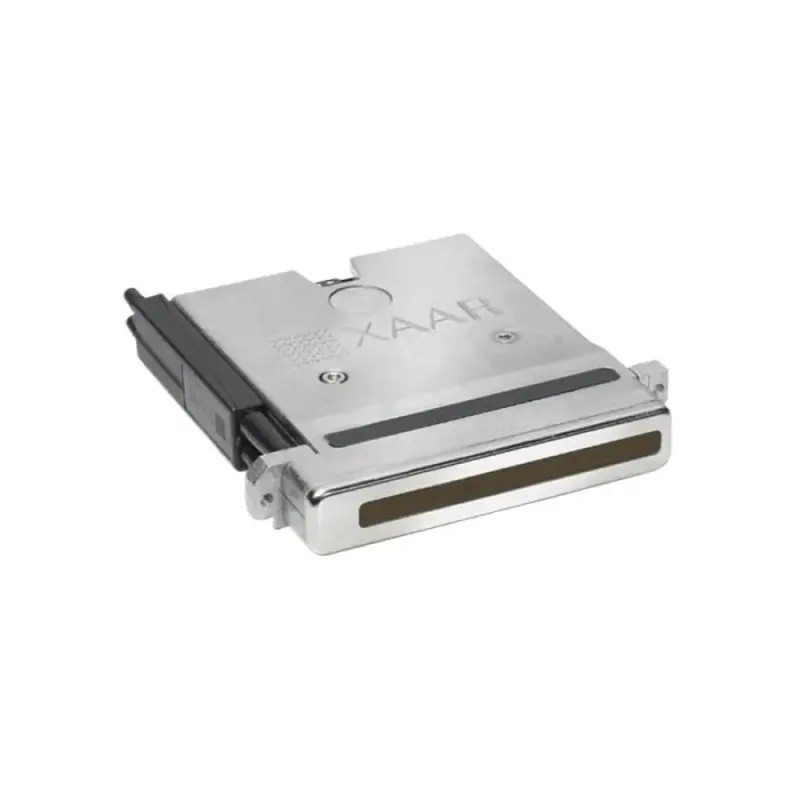

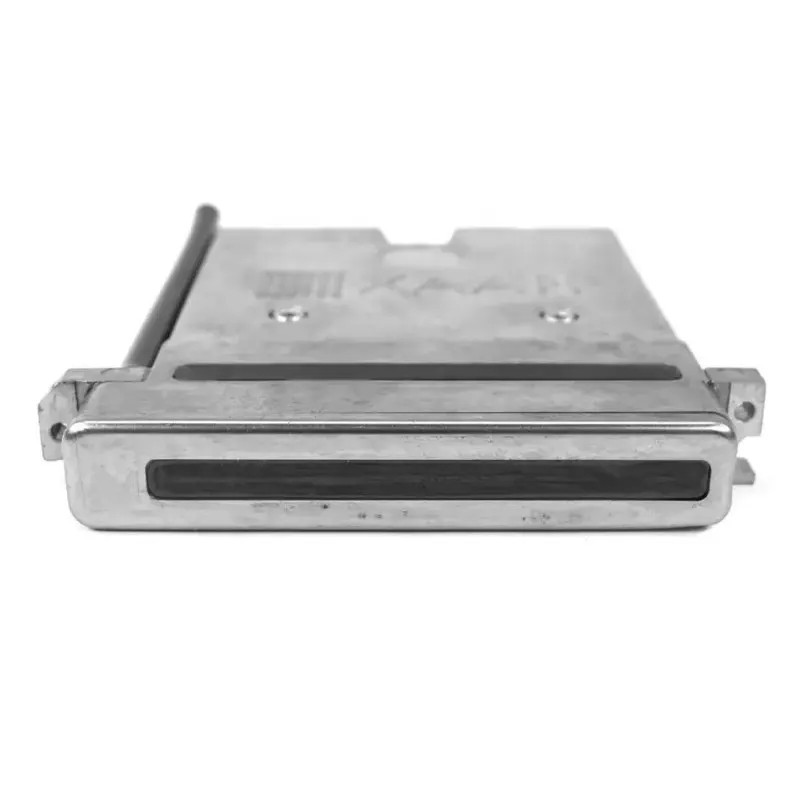

Xaar 501 GS8 OR Original Oil-Based Recirculation Printhead TF Technology OEM

Xaar 501 GS8 OR Printhead Oil-Based Recirculation

Write a review

$835.00

Genuine original Xaar 501 GS8 OR piezoelectric printhead with TF Technology recirculation optimised for oil-based inks delivering maximum reliability in industrial wide-format graphics and coding production.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Genuine Xaar 501 GS8 OR Printhead is a precision piezoelectric drop-on-demand printhead specifically engineered for Oil-Based inks with TF Technology High Flow ink recirculation. Built upon Xaar’s PrecisionPlus actuator architecture and equipped with Ultra High Viscosity Technology, it ensures continuous nozzle health, instant priming, and maximum resistance to ink sedimentation. Featuring 500 active nozzles in a single-row configuration at 180 npi native density across a 70.5 mm print swathe, it supports greyscale firing modes from 8 to 40 pL drop volumes across 6 grey levels. Factory-sealed with integrated WFG Nozzle Guard protection, it delivers excellent coverage, fine detail, and long-term operational reliability in demanding continuous production environments.

Part Information

Brand: Xaar
Product Name: Xaar 501 GS8 OR Printhead Oil-Based Recirculation
Part Number / Reference: XP501 GS8 OR
Specific Variant: GS8 Fine Drop (8–40 pL) / Oil-Based with Recirculation (OR)
Technology: Piezoelectric Drop-on-Demand (PrecisionPlus, TF Technology High Flow & Ultra High Viscosity)
Category: Xaar Printheads
Ink Type Compatibility: Oil-Based Inks (Recirculating System)
Condition: 100% Genuine Original, Brand New, Factory Sealed
Country of Origin: United Kingdom

Technical Specifications

Specification Parameter	Details / Technical Values (GS8 OR Specific)
Brand Manufacturer	Xaar plc
SKU / Reference	XP501 GS8 OR
Active Nozzles & Density	500 active nozzles; 180 npi native resolution (1 row)
Print Swathe Width & Pitch	70.5 mm swathe; Nozzle pitch: 141.1 µm
Ink & Recirculation System	Oil-based ink; TF Technology (High Flow Recirculation)
Drop Volume & Velocity	8 to 40 pL (6 Grey levels); Drop velocity: 5 m/s
Maximum Firing Frequency	Up to 8 kHz (Greyscale) / Up to 27 kHz (Binary)
Advanced Features	Ultra High Viscosity Technology, WFG Nozzle Guard, PrecisionPlus, AcuChp
In-line Filter	No (External fluid system filtration required)
Dimensions & Dry Weight	104 x 17 x 100 mm; Approx. 205 g

Xaar 501 Variant Matrix (Current Product Highlighted)

Ink & Recirculation Type	GS8 Variant (8 - 40 pL)	GS15 Variant (15 - 75 pL)
Oil-Based Standard (O)	501 GS8 O	501 GS15 O
Oil-Based + Recirculation (OR)	★ 501 GS8 OR (This Product)	501 GS15 OR
Solvent-Based Standard (S)	501 GS8 S	501 GS15 S
Solvent-Based + Recirculation (SR)	501 GS8 SR	501 GS15 SR
UV-Curable Standard (U / UV)	501 GS8 U / UV	501 GS15 U / UV
UV-Curable + Recirculation (UR / UVR)	501 GS8 UR / UVR	501 GS15 UR / UVR

Drop Size Specification Comparison (GS8 vs GS15)

Specification Parameter	GS8 - Fine Precision (This Product)	GS15 - Standard Industrial
Native Base Drop Size	8 pL	15 pL
Greyscale Volume Range	8 pL – 40 pL	15 pL – 75 pL
Greyscale Levels	Up to 6 Levels	Up to 6 Levels
Max Firing Frequency	Up to 8 kHz (Greyscale) / 27 kHz (Binary)	Up to 10 kHz (Greyscale) / 24 kHz (Binary)
Print Quality & Focus	High-resolution graphics, sharp text, crisp fine lines, and smooth tonal gradations.	Balanced ink coverage, high-speed industrial marking, and heavy ink laydown.
Primary Applications	Wide-format oil graphics, continuous packaging marking, barcode coding.	Secondary packaging, product identification, corrugated boxes.

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are highly sensitive to static discharge.
Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts, connecting flexible flat cables (FFC), or fluid lines.
Cable Replacement Protocol: It is strongly recommended to replace flexible flat cables (FFC) and related connectors with new genuine parts during every printhead installation to maintain signal integrity.
TF Technology Fluid System Setup: As this model does not feature an internal in-line filter, ensure external ink supply lines are fitted with proper filtration. Maintain active TF Technology High Flow recirculation to prevent sedimentation and ensure instant nozzle priming.
Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols.

Compatible Models & Systems

Brand / Integration	Compatible Models & Systems
Xaar OEM Platforms	Industrial OEM systems designed for Xaar 501 GS8 OR oil-based recirculating series including wide-format graphics printers, oil-based coding and marking systems, packaging line printers, and continuous industrial inkjet platforms utilizing Xaar 501 GS8 OR architecture.
Target Fluid Circuit	Oil-Based Inks with Active High-Flow Fluid Recirculation Systems.

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician following Xaar recommended procedures.
Final Sale Conditions: Once installed or exposed to operational fluids/ink, items are non-returnable. Please confirm model compatibility prior to opening.

Reference XP501 GS8 OR

In stock 120 Items
