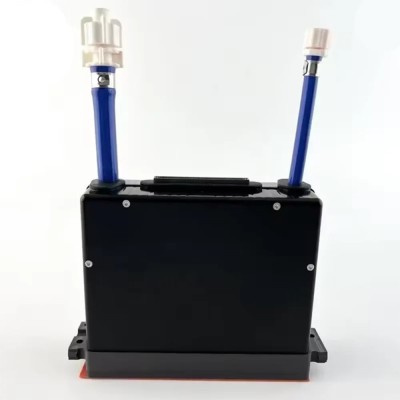

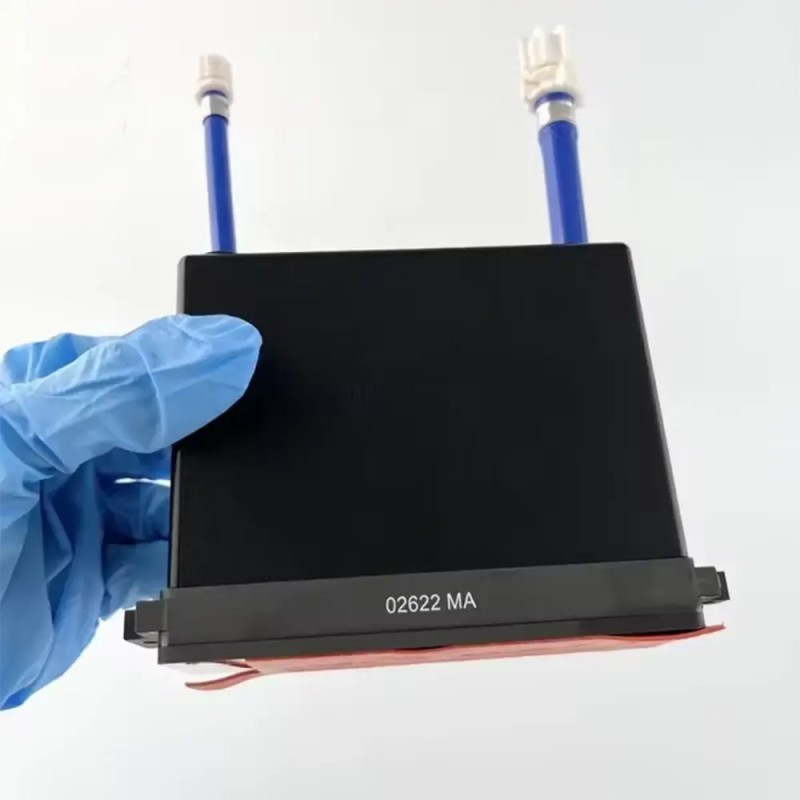

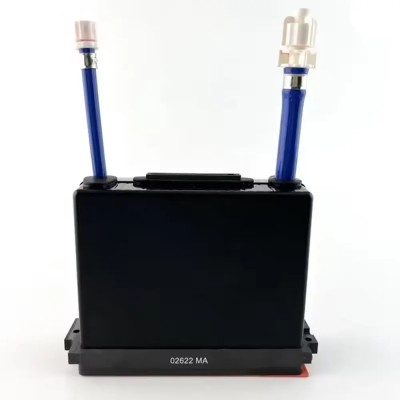

Fujifilm Dimatix StarFire SG1024/MA Printhead (30 pL)
- Write a review
$1,267.00
The Genuine New Dimatix StarFire SG1024/MA Printhead is a heavy-duty 1024-nozzle industrial piezo drop-on-demand unit engineered for single-color operation at resolutions up to 400 dpi, featuring RediJet™ continuous recirculation and VersaDrop™ grayscale technology.
Genuine OEM Fujifilm Dimatix StarFire SG1024/MA Printhead
Single-Color • 1024 Nozzles • 30 pL • 400 dpi • UV / Solvent / Aqueous
Product Overview
The Genuine New Fujifilm Dimatix StarFire SG1024/MA is a high-performance industrial piezoelectric drop-on-demand printhead purpose-built for demanding scanning and single-pass systems. It delivers exceptional single-color output at resolutions up to 400 dpi across a 64.96 mm (2.55 in) print width.
Featuring 1024 independent channels arranged in eight rows on a single replaceable coated metal nozzle plate, the SG1024/MA supports simultaneous or individual nozzle firing. REDIJET continuous ink recirculation keeps fluid moving at the nozzle level to prevent sedimentation and drying of pigmented or fast-drying inks, while VersaDrop technology enables drop sizes from a nominal 30 pL up to 80 pL with grayscale capability at frequencies up to 30 kHz.
The robust, repairable construction and broad ink compatibility (UV-curable, organic solvent and aqueous) make this printhead a reliable choice for textile, wide-format and commercial industrial applications.
Part Information
| Attribute | Detail |
|---|---|
| Product Name | Genuine New Dimatix StarFire SG1024/MA Printhead |
| Manufacturer | Fujifilm Dimatix |
| Exact Model | StarFire SG1024/MA |
| Color Configuration | Single Color |
| Condition | Original Brand New |
| Nozzle Plate | Collar-mounted coated metal (removable/replaceable) |
| Primary Application | Textile, wide-format, commercial & industrial printing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Active Nozzles | 1024 channels (8 rows) |
| Print Width | 64.96 mm (2.55 in) |
| Native Resolution | Up to 400 dpi |
| Nozzle Spacing | 0.0635 mm (0.0025 in) |
| Nominal Drop Volume | 30 pL |
| Adjustable Drop Range (VersaDrop) | 30 pL – 80 pL |
| Maximum Firing Frequency | 30 kHz (30 pL) / approx. 11–12 kHz (80 pL) |
| Recirculation System | REDIJET continuous ink recirculation |
| Operating Temperature | Up to 55 °C (internal heater / thermistor) |
| Viscosity Range | 8 – 20 cP |
| Electrical Interface | Topside 60-pin connector |
| Fluid Connection | Dual Luer fittings |
| Ink Compatibility | UV-curable, organic solvent, aqueous |
Key Features & Operational Advantages
- 100% Genuine Fujifilm Dimatix OEM — Authentic factory-new unit ensuring full drive signal compatibility and production reliability.
- Single-Color High Resolution — Eight nozzle rows deliver crisp single-color printing at up to 400 dpi.
- REDIJET Continuous Recirculation — Prevents pigment sedimentation and drying, maximizing open time and reducing purge cycles.
- VersaDrop Grayscale Flexibility — Dynamic drop volume from 30 pL to 80 pL for dense solids and smooth gradients without productivity loss.
- Repairable Construction — Collar-mounted coated metal nozzle plate is removable for cleaning or replacement.
- Simplified Integration — Topside 60-pin electrical connection and dual Luer fluid fittings for straightforward installation.
Technical Precision & Operational Advisory
Installation must be performed by a qualified field service technician.
- Power isolation: Completely power off the printer before connecting or disconnecting the 60-pin ribbon cable.
- ESD protection: Always use grounded anti-static wrist straps when handling the printhead.
- Fluid system preparation: Thoroughly flush ink delivery channels with approved cleaning fluid and renew inline filters before connection.
- Mechanical registration: Perform precise mounting and alignment according to the printer manufacturer’s procedures.
- Non-returnable once installed: Installed, unsealed or ink-primed printheads cannot be returned due to chemical contamination and electronic safety regulations.
Compatible Models & Systems
The StarFire SG1024/MA is used in industrial scanning and single-pass platforms designed for this single-color architecture. Known compatibility includes:
| Manufacturer / Platform | Notes |
|---|---|
| Apsom Technologies | SMART-6000 4H and related systems |
| Other industrial platforms | Wide-format, textile and commercial printers utilizing StarFire SG1024/MA architecture |
Always verify mounting brackets, firmware support, connector configuration and the exact model of the existing printhead before ordering.
Terms, Warranty & Customer Protection
Authentic OEM Guarantee: Guaranteed 100% original authentic Fujifilm Dimatix manufactured component.
Delivery Inspection Guarantee: Inspect outer packaging immediately upon arrival. Refuse shipment if physical package damage is evident.
Unopened Return Notice: Returns accepted strictly for unopened, uninstalled items in original factory-sealed packaging. Once installed or exposed to ink, the printhead is non-returnable.
