Zebra ZT231R RFID 300 DPI Serialized Thermal Printhead Kit (OEM P/N: P1123335-157) – Genuine OEM Replacement

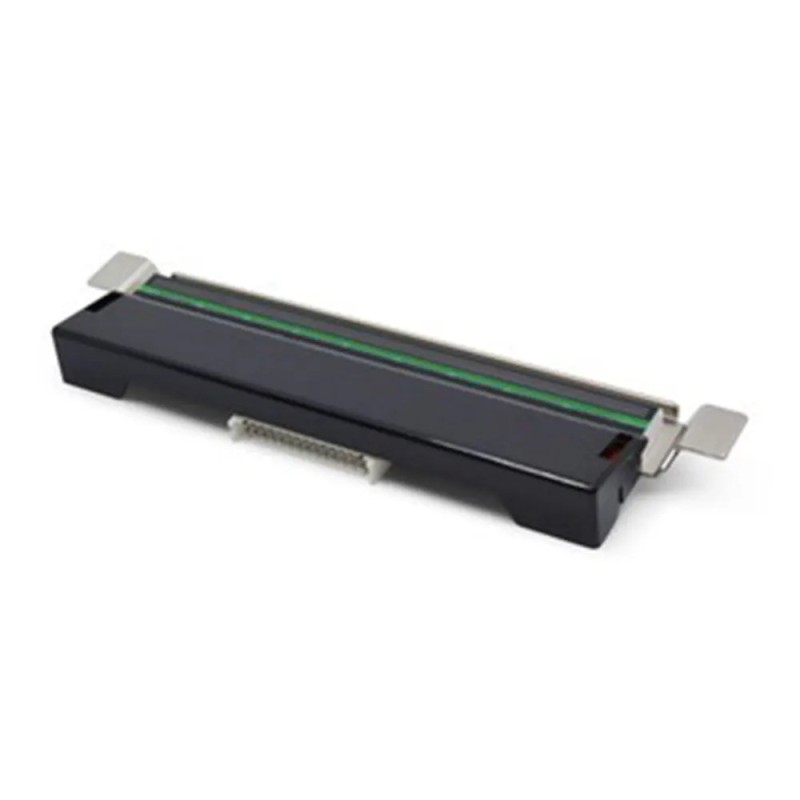

The Zebra ZT231R RFID 300 DPI Serialized Thermal Printhead Kit (OEM P/N: P1123335-157) is an authentic, high-resolution electro-thermal printing transducer designed specifically for Zebra ZT231R UHF RFID industrial printing and encoding platforms operating at high spatial resolutions. Fabricated under stringent cleanroom semiconductor protocols by Zebra Technologies Corporation, this specialized printhead integrates digital hardware serialization and dedicated RF ground-plane isolation. Operating synchronously with the ZT231R integrated UHF RFID reader/encoder, RE40 antenna transmission module, and Link-OS Print DNA telemetry architecture, this component ensures maximum read/write success rates alongside microscopic barcode rendering across non-stop supply chain tracking, retail item-level smart labeling, electronics component serialization, and pharmaceutical compliance operations.

At its core, the assembly incorporates an advanced 4.09-inch (104.0 mm) transverse ceramic substrate populated with 1,248 active micro-resistor heating dots calibrated at an intrinsic spatial resolution of 300 dots per inch (11.81 – 12.0 dots/mm with an ultra-fine 0.084 mm dot pitch). Integrated high-frequency onboard driver ICs and shift register logic modulate energy pulses via microsecond pulse-width modulation (PWM) control, sustaining industrial linear feed velocities reaching up to 8.0 inches per second (203 mm/sec). To withstand repetitive physical abrasion from stepped RFID inlays, silicone liners, and high-heat resin ribbons, the microscopic heating line is shielded by a fortified diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective overcoat glaze, backed by an onboard negative temperature coefficient (NTC) thermistor network for real-time closed-loop temperature compensation.

Pre-assembled on an extruded, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 128 mm × 34 mm × 26 mm with an unprimed assembly weight of approximately 98 grams, the unit features specialized RF-isolation grounding tabs and pivot alignment lugs configured to seat securely within the ZT231R carriage. Direct electrical logic, strobe currents, digital serialization telemetry, and RF ground isolation are interfaced through a high-reliability gold-plated multi-pin Flexible Flat Cable (FFC) connector header designed for zero-insertion-force field mating. Distributed as a 100% genuine factory-sealed OEM kit, each unit is encapsulated inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor gate integrity and burn line cleanliness prior to on-site commissioning.

Identification Notes & Core Distinction

Notice: This printhead is dedicated solely to Zebra ZT231R RFID-enabled industrial chassis operating at 300 DPI. Do not attempt retrofit installations into non-RFID units or older legacy models without matching OEM parts catalog specifications.

Part Information Matrix

Technical Specifications Matrix

Technical Precision & Installation Warning

ATTENTION: High-density 300 DPI thermal printheads operate in direct proximity to UHF RFID transmitting couplers. Installation, grounding verification, and toggle pressure calibration must strictly be executed by qualified service technicians or trained hardware personnel in accordance with Zebra ZT231R maintenance procedures.

• ESD Protection & RF Grounding Verification: Smart RFID media with metallized antenna inlays accumulates significant electrostatic charge. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap. Ensure the heatsink grounding clip contacts the printer chassis frame directly to prevent RF interference during encoding.
• Power Isolation & Absolute Prohibition of Hot-Swapping: Turn off the main AC power switch and disconnect the power cord, waiting at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
• Cable / FFC Inspection: Carefully inspect the flexible flat cable contacts for bent fingers, lint, or adhesive residue. Seat the cable squarely into the connector housing and lock the retaining latch fully; angled insertion can cross 24V power traces into 5V logic lines, resulting in instantaneous destruction of the internal controller board.
• Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
• Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
• Part Number Verification & RFID Calibration: Verify that the printhead toggle pressure blocks and latch cams are adjusted symmetrically across the platen roller. After replacement, execute a full RFID media calibration and verify printhead resistance rank settings via the ZT231 color touch screen to ensure proper inlay pitch detection and nominal thermal energy.

Target Equipment Compatibility Matrix
