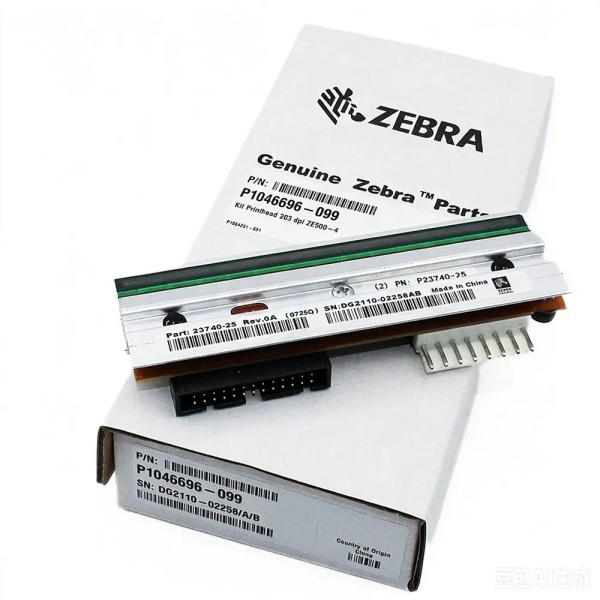

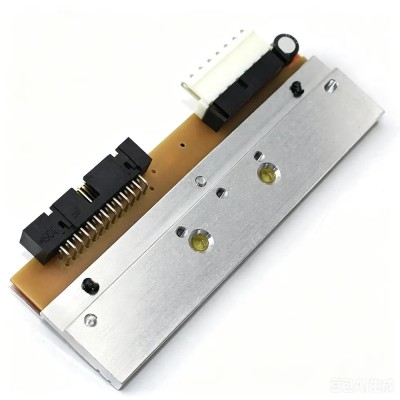

Genuine Zebra ZE500-4 203 DPI Print Engine Thermal Printhead Kit (OEM P/N: P1046696-099)
- Write a review
$295.00
$171.10
Save 42%
Factory-original 203 DPI replacement thermal printhead kit designed for Zebra ZE500-4 industrial print engines. Engineered for heavy-duty 24/7 automated packaging and labeling applications with speeds up to 12 ips. Fully compatible with both Right-Hand and Left-Hand print engine configurations.
GENUINE OEM REPLACEMENT • MISSION-CRITICAL OEM PRINT ENGINE HARDWARE
Zebra ZE500-4 203 DPI Print Engine Thermal Printhead Kit (OEM P/N: P1046696-099) – Genuine OEM Replacement
OEM Part Number: P1046696-099 • Core Engine: Heavy-Duty Automated Print-and-Apply Thin-Film Thermal Array (8 dots/mm) • Target Platform: Zebra ZE500-4 OEM Print Engine (203 DPI, Right-Hand & Left-Hand)
The Zebra ZE500-4 203 DPI Print Engine Thermal Printhead Kit (OEM P/N: P1046696-099) is an authentic, heavy-duty electro-thermal imaging transducer engineered specifically for Zebra ZE500 4-inch automated print-and-apply applicators. Manufactured under exacting semiconductor cleanroom standards by Zebra Technologies Corporation, this printhead assembly is built to withstand relentless 24/7 high-speed automated packaging line cycles, extreme mechanical applicator vibrations, and harsh industrial factory floor conditions. Delivering razor-sharp edge definition, consistent heat dissipation, and superior barcode scannability, it represents the mission-critical OEM component for automated carton labeling, case packing, palletizing cells, and high-velocity sorting lines.
At its structural foundation, the assembly integrates a 4.09-inch (104.0 mm) transverse ceramic substrate populated with 832 active micro-resistor heating dots calibrated at an intrinsic spatial density of 203 dots per inch (8 dots/mm, nominal 0.125 mm dot pitch). Integrated high-frequency onboard driver ICs and shift register logic modulate energy pulses via microsecond pulse-width modulation (PWM) control, sustaining blisteringly fast applicator throughput velocities reaching up to 12.0 inches per second (305 mm/sec). To endure constant friction from abrasive paper media and industrial wax-resin ribbons without premature degradation, the micro-machined burn line is reinforced with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective glaze, while an integrated negative temperature coefficient (NTC) thermistor provides continuous closed-loop thermal compensation to prevent localized element burnout and thermal image drift.
Pre-assembled on an extruded, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 136 mm × 38 mm × 30 mm with an unprimed assembly weight of approximately 135 grams, the module features quick-release pivot alignment pins and cam-locking seats engineered specifically for the ZE500 tool-less modular print mechanism. High-speed serial image data, logic power, and 24V strobe currents are interfaced via heavy-duty gold-plated multi-pin PCB header sockets engineered for low contact impedance, maximum noise immunity, and rapid field swap-out during production line changeovers. Distributed as a 100% genuine factory-sealed OEM kit, each unit is encapsulated inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor gate integrity and burn line cleanliness prior to on-site commissioning.
Critical OEM Print Engine vs. Industrial Tabletop Verification: Prior to procurement, verify your printer configuration and series nameplate. Part number P1046696-099 is engineered exclusively for ZE500-4 4-inch (203 DPI) OEM print engines (both Right-Hand and Left-Hand feed configurations). It is completely incompatible with 300 DPI ZE500-4 print engines (which require OEM P/N: P1046696-016), 6-inch wide ZE500-6 engines (OEM P/N: P1046696-059), legacy PAX series engines (such as 110PAX4 P/N: 41000M), or tabletop industrial printers (ZT410/ZT411 P/N: P1058930-009 or ZT610 P/N: P1083320-010) due to entirely different applicator carriage castings, pivot latches, and harness connections.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Parameter | Engineering Specification & Description |
|---|---|
| Current Official OEM P/N | P1046696-099 (Zebra Global Spares Standard Kit Part Number for ZE500-4 203 DPI). |
| Orientation Interoperability | Universal across both Right-Hand (RH) and Left-Hand (LH) ZE500-4 print engines. Features symmetrical mechanical locating pins and universal cable plug access. |
| Associated 300 DPI Counterpart | P1046696-016. Strictly incompatible due to differing micro-resistor densities (832 dots vs 1,248 dots), clock frequencies, and motor gearing ratios. |
| Predecessor Platform Incompatibility | Direct successor to the 110PAX4 print engine (OEM P/N: 41000M). P1046696-099 incorporates redesigned tool-less latch dowels, revised grounding paths, and modular wiring harness sockets completely incompatible with legacy PAX4 mechanisms. |
Notice: This printhead is dedicated solely to Zebra ZE500-4 automated print engine platforms operating at 203 DPI. Do not attempt retrofit installations into 6-inch ZE500-6 engines, tabletop industrial units, or legacy PAX applicators without verified OEM parts catalog matching.
Part Information Matrix
| Product Official Designation | Zebra ZE500-4 203 DPI Print Engine Thermal Replacement Printhead Kit |
| OEM Manufacturer & Assembly Fab | Zebra Technologies Corporation (Automated Print-and-Apply Systems Group) |
| Exact Model Identification | Zebra ZE500 Series 4-inch 203 DPI Heavy-Duty OEM Print Engine Sub-Assembly |
| OEM Part Number (P/N) | P1046696-099 |
| Known Superseded Aliases | P1046696-099-A, ZEB-P1046696099, KIT PRINTHEAD 203DPI ZE500-4, P1046696-015 (Pre-rev) |
| Print Technology Compatibility | Thermal Transfer (Heavy-Duty Industrial Wax, Premium Wax-Resin Ribbons) & Direct Thermal |
| Product Lifecycle Status | Active OEM Production & Tier-1 Automated Systems Spares Support |
| Physical Condition | • 100% Brand New, Factory Sealed in Original OEM Anti-Static Moisture Barrier Packaging |
| Country of Origin | Japan / USA (Zebra Certified Semiconductor & Assembly Operations) |
| Primary Industrial Application | Automated High-Speed Print-and-Apply Packaging Lines, Automated Case Taping & Labeling, Palletizer Cells, High-Speed Conveyor Sorting |
Technical Specifications Matrix
| Engineering Metric | Certified Parameter Value |
|---|---|
| Native Print Resolution | 203 DPI (8 dots per mm / nominal 0.125 mm dot pitch) |
| Total Active Heating Dot Count | 832 individual micro-resistor elements aligned in a contiguous linear array |
| Maximum Active Print Width | 4.09 inches (104.0 mm) continuous transverse imaging line |
| Maximum Rated Print Speed | Up to 12.0 inches per second (305 mm/sec) under applicator tension |
| Nominal Dot Resistance | Calibrated factory resistance rank ~650 – 850 Ω (stamped on barcode rank label) |
| Protective Overcoat Glaze | High-durability Diamond-Like Carbon (DLC) & Silicon Nitride (Si3N4) anti-abrasion passivation |
| Operating Thermal Range | 0°C to 40°C (32°F to 104°F) operating environment; monitored via onboard NTC thermistor |
| Logic & Strobe Drive Voltage | +5.0V DC logic drive rail; +24.0V DC ±5% nominal head strobe power rail |
| Dimensions & Physical Mass | Approx. 136 mm × 38 mm × 30 mm | Dry assembly net weight: ~135 g |
| Electrical Interconnect Interface | Dual high-conductivity gold-plated multi-pin PCB header sockets |
FIELD ADVISORY
Technical Precision & Installation Warning
ATTENTION: Print engine printheads operate within high-speed robotic applicator cells subject to severe pneumatic cycle forces and heavy electrical strobe currents. Installation, toggle pressure balance, and platen alignment must strictly be executed by certified automation engineers or trained packaging technicians in accordance with Zebra ZE500 maintenance manuals.
- ESD Protection & Static Dissipation: High-speed automated label peel-off generates massive static electrical charges across conveyor belts and applicator vacuum pads. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or handling the printhead harness contacts.
- Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC mains power from the main print engine control box and wait at least 60 seconds for internal power supply capacitors to bleed down before unplugging printhead harnesses. Hot-swapping cables while 24V bus potential is live will cause destructive electrical arcing, permanently destroying driver ICs and main logic board circuitry.
- Harness & Cable Route Inspection: Inspect both heavy-duty wiring harnesses for vibration fatigue, insulation chafing, or pin oxidation common in industrial packaging environments. Ensure both multi-pin connectors are seated squarely and latched securely; misaligned or loose insertion can cross 24V power traces into low-voltage logic lines, destroying the internal controller board.
- Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
- Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural epidermal oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing premature dot burnout.
- Tool-Less Cam Alignment & Resistance Calibration: Ensure the ZE500 printhead quick-release cam latches are locked completely parallel to the platen roller to prevent ribbon wrinkling and uneven applicator print density. After replacement, verify printhead resistance rank calibration and darkness settings via the ZE500 remote control display or Zebra Setup Utilities.
Target Equipment Compatibility Matrix
Zebra ZE500-4 OEM Print Engine (203 DPI)
- Zebra ZE500-4 Right-Hand (RH) Print Engine (203 DPI)
- Zebra ZE500-4 Left-Hand (LH) Print Engine (203 DPI)
- Thermal Transfer & Direct Thermal Applicator Configurations
- Chassis Model Code: ZE50042-xxxxxxx / ZE50042-Rxxxxxx / ZE50042-Lxxxxxx
Compatible Automated Applicator Systems
- Automated Tamp-Blow & Direct-Tamp Applicator Modules
- Corner-Wrap & Dual-Panel Carton Labeling Arms
- High-Velocity Wipe-On Packaging Conveyor Lines
- Universal Drop-In Print Engine Replacements (203 DPI)
Incompatible Equipment Alert (Do Not Procure for the Following Platforms):
This assembly is strictly NOT COMPATIBLE with 300 DPI versions of the ZE500-4 (OEM P/N: P1046696-016), 6-inch wide ZE500-6 print engines (OEM P/N: P1046696-059 / P1046696-060), legacy 110PAX4 engines (OEM P/N: 41000M), tabletop industrial printers (ZT410/ZT411 P/N: P1058930-009, ZT610 P/N: P1083320-010), or ZT510 printers. Always verify the print engine serial nameplate and existing part number prior to commissioning.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Guarantee: Every printhead kit is guaranteed to be 100% genuine Zebra OEM, factory-fresh, sealed in original anti-static moisture-barrier packaging, and completely free of missing dot elements, electrical opens, or shorts upon delivery.
2. Store Warranty Policy: We provide a 30 working-day store warranty against dead-on-arrival (DOA) electrical defects from the recorded delivery date. Warranty claims require an unedited, continuous video recording showing unboxing of the intact factory seal and full physical installation by a qualified technician, including cable connection verification, latch cam alignment, and self-test configuration printout.
3. Final Sale Conditions: Due to the sensitive semiconductor characteristics of micro-resistor thermal heating arrays, all sales are strictly final once the anti-static vacuum seal is breached or the printhead is mounted to the printer chassis. Scratched protective glaze, physical chipping from sharp tools or staples, reverse voltage destruction, heat burnout from extreme darkness settings, or ribbon wrinkle adhesive contamination are explicitly excluded from warranty coverage.
P1046696-099
246 Items
