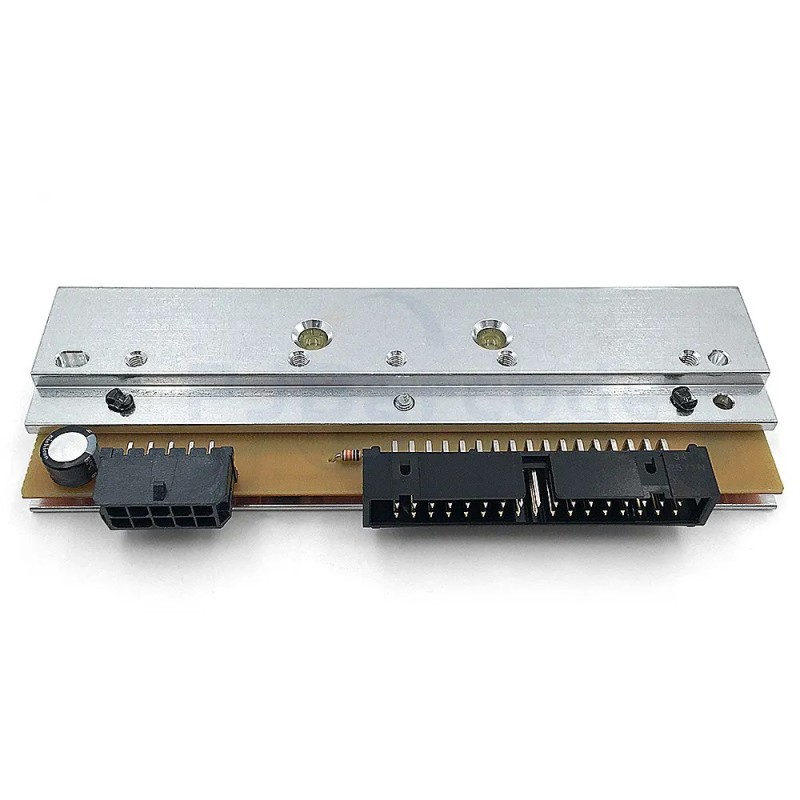

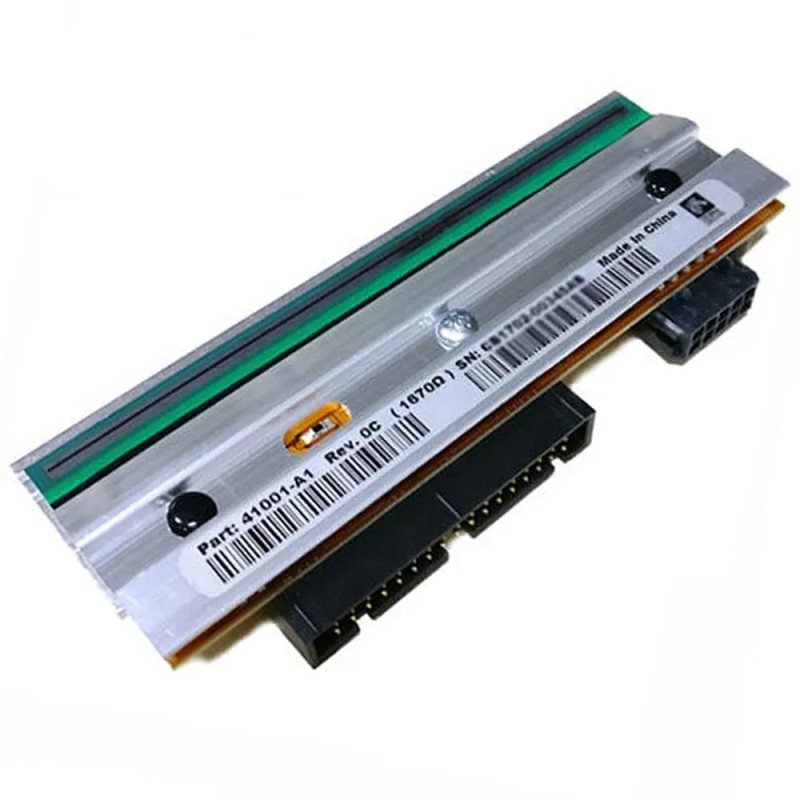

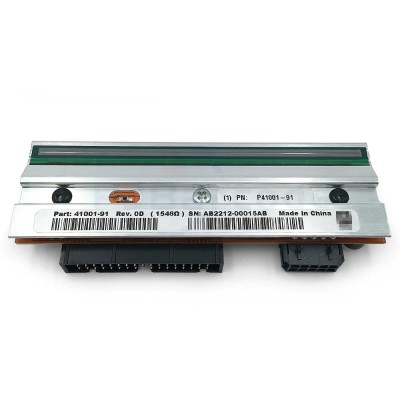

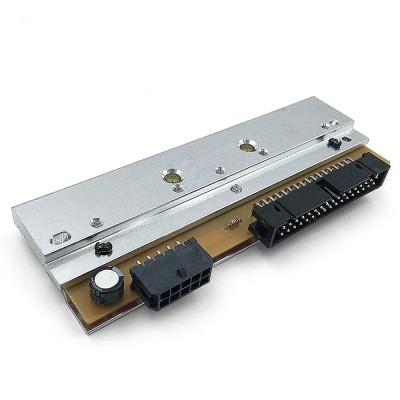

Zebra 110XiIII Plus 203 DPI Thermal Printhead Kit (G41000-1M)
- Write a review
$420.00
$243.60
Save 42%
Factory-certified Zebra 203 DPI OEM replacement thermal printhead for the 110XiIII Plus industrial label printer series. Engineered for continuous-duty thermal transfer and direct thermal barcoding applications. Features high abrasion resistance and standard 4.09-inch active print width.
Genuine OEM Replacement • Precision Thermal Printhead Kit
Zebra 110XiIII Plus 203 DPI Thermal Printhead Kit (G41000-1M) – Genuine OEM Replacement
OEM Part Number: G41000-1M / G41000M | Core Engine: Heavy-Duty Thin-Film Thermal Array (8 dots/mm) | Platform: Zebra 110XiIII Plus Industrial High-Performance Printer (203 DPI)
Product Description
The Zebra 110XiIII Plus 203 DPI Thermal Printhead Kit (part number G41000-1M, factory supersession of G41000M) is an authentic OEM heavy-duty replacement assembly engineered specifically for the classic Zebra 110XiIII Plus industrial barcode label printer platform. Built for continuous 24/7 mission-critical operations across manufacturing plants, automotive supply chains, chemical drum labeling, and high-speed distribution centers, this printhead delivers rich optical density, razor-sharp edge contrast, and 100% ANSI/ISO grade-A readability for high-volume barcode generation.
Featuring an active print swathe width of 4.09 inches (104 mm) and a native resolution of 203 DPI (8 dots/mm) across 832 individually addressable heating elements, this thin-film ceramic micro-resistor line array operates in perfect synchronization with Zebra's proprietary E³® (Element Energy Equalizer™) dynamic pulse-control architecture. Its hardened glass-passivated glaze layer is engineered to withstand severe abrasive friction from harsh wax, wax/resin, and pure resin thermal ribbons as well as direct thermal facestocks at continuous industrial print speeds up to an impressive 14 inches per second (356 mm/s).
Constructed on a heavy-gauge cast-aluminum heatsink carriage bracket, the assembly provides superior thermal equalization and rapid heat dissipation, preventing dot blooming, trailing voids, and thermal head runaway under sustained duty cycles. Each printhead kit is supplied as a 100% genuine factory-sealed OEM component, fully balanced to exact factory resistance specifications to ensure seamless drop-in integration without manual strobe voltage trimming.
Always verify the exact part number and native printer resolution (203 DPI vs. 300 DPI vs. 600 DPI) on the existing printhead or printer configuration label before ordering.
Engineering Reference Identification Notes & Core Distinction
| Reference | Description |
|---|---|
| G41000-1M / G41000M (Current) | Original OEM 203 DPI thermal printhead kit specifically engineered for the legacy Zebra 110XiIII Plus platform |
| G41001M (300 DPI Variant) | 300 DPI high-resolution alternative for Zebra 110XiIII Plus; requires drive gear/belt conversion when converting resolution |
| G41002M (600 DPI Variant) | 600 DPI ultra-high-resolution printhead for Zebra 110XiIII Plus micro-marking applications; non-interchangeable drive ratio |
| P1004230 (110Xi4 Series) | 203 DPI printhead for the successor 110Xi4 series; uses updated cable connector routing and bracket grounding geometry |
Notice: Part number G41000-1M is designed exclusively for the Zebra 110XiIII Plus (203 DPI resolution). It cannot be fitted into 300 DPI or 600 DPI 110XiIII Plus printers without official hardware resolution conversion kits and firmware adjustments. Furthermore, it is not interchangeable with Zebra 110Xi4 (P1004230), 105SLPlus (P1053360-018), or ZT610 series printheads due to proprietary wiring harness pinouts and heatsink alignment stops.
Product Details
Part Information Matrix
| Parameter | Detail |
|---|---|
| Product Name | Zebra 110XiIII Plus 203 DPI Thermal Printhead Kit (G41000-1M) |
| Manufacturer | Zebra Technologies Corporation |
| Exact Model | 110XiIII Plus 203 DPI Thermal Subassembly Kit |
| OEM Part Number | G41000-1M |
| Known Alias | G41000M, 41000M, KIT PRINTHEAD 203 DPI 110XiIII+, ZEB-G41000-1M |
| Printing Technology & Media Type | Thermal Transfer (Ribbon) and Direct Thermal (Thermal Facestock) |
| Product Status | Available as genuine OEM replacement hardware kit |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan / United States (Zebra OEM Global Sourcing) |
| Industrial Application | 24/7 heavy industrial manufacturing, chemical drum labeling, high-speed automated sorting, and logistics pallet tracking |
Technical Specifications
| Parameter | Value |
|---|---|
| Printhead Technology | Heavy-Duty Thin-Film Ceramic Micro-Resistor Line Array |
| Native Resolution | 203 DPI (8 dots/mm) |
| Active Print Width | 4.09 inches (104 mm) |
| Total Dot Count | 832 individually addressable heating elements |
| Dot Pitch | 0.125 mm (125 μm dot-to-dot spacing) |
| Maximum Operating Speed | Up to 14 inches per second (356 mm/sec) |
| Thermal Energy Control | Fully calibrated for Zebra E³® (Element Energy Equalizer™) dynamic control |
| Ribbon & Media Compatibility | Industrial wax, premium wax/resin, and harsh-environment pure resin ribbons; coated direct thermal paper and synthetic media |
| Electrical & Signal Interface | Multi-pin gold-plated dual header receptacle with direct chassis ESD grounding path |
| Mounting Structure | Heavy-duty cast aluminum heatsink spine with precision XiIII Plus alignment dowels |
Field Advisory Technical Precision & Installation Warning
Printhead replacement must be performed by certified technical personnel following official Zebra Technologies maintenance documentation. Improper handling, mechanical toggle pressure imbalances, or static shocks can irreversibly destroy microscopic thermal resistor elements.
- ESD Protection: Always wear a grounded anti-static wrist strap when opening the package and handling the printhead. Thermal resistor arrays and integrated driver logic are highly vulnerable to electrostatic discharge.
- Power Isolation: Turn off the printer power switch and disconnect the main AC power cord before opening the printhead mechanism. Never connect or disconnect the printhead wiring harness while the printer is powered.
- Cable Recommendation: Inspect the printhead wiring harness and pins for burnishing, crimping, or corrosion. Replace damaged cables immediately to ensure balanced dot burn voltage and avoid short circuits.
- Cleaning & Surface Protection: Never touch the glass-coated burn line with bare fingers or sharp metal tools. Clean the printhead elements exclusively using 99.7% pure isopropyl alcohol (IPA) and lint-free foam swabs.
- Mechanical Pressure Alignment: After physical mounting, verify toggle pressure balance and head-stop cam position across the platen roller to prevent ribbon wrinkling, premature edge wear, and uneven print density across the 4-inch web.
- Part Number Verification: Confirm that the printer chassis indicates a 110XiIII Plus 203 DPI configuration and that the defective hardware matches part number G41000-1M / G41000M prior to installation.
Compatible Models & Systems
This genuine part number G41000-1M is confirmed compatible with the following Zebra industrial printer configurations:
Compatible Zebra 110XiIII Plus Models:
- Zebra 110XiIII Plus (203 DPI Native Factory Configuration)
- Zebra 110XiIII Plus (Converted from 300/600 DPI to 203 DPI using official 203 DPI Drive Kit)
Subsystem Specifications:
- Direct integration with 110XiIII Plus Main Logic Board and Power Supply
- Compatible with standard 4-inch 110XiIII Plus rubber platen roller
Recommendation: Always cross-check the part number printed on the existing printhead or listed in the machine’s service documentation before ordering. Do not assume interchangeability with Zebra 110Xi4 (P1004230), 105SLPlus (P1053360-018), or classic 105SL (G32432-1M) series printheads without physical and electrical verification.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to media, ribbon, or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
OEM P/N: G41000-1M
