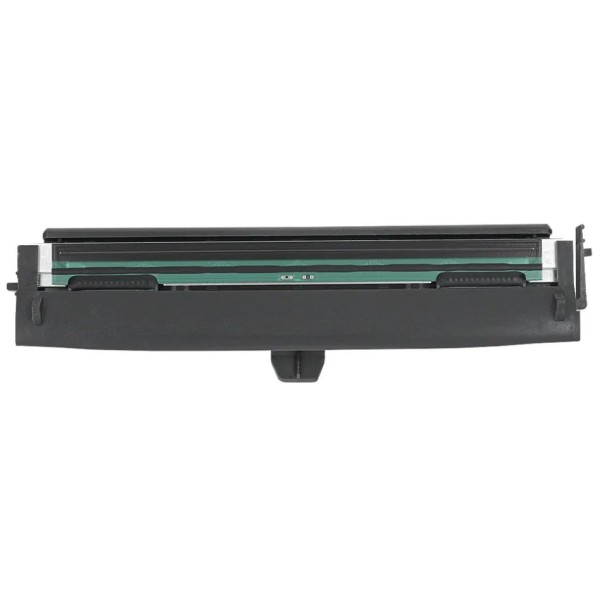

Zebra ZD420T & ZD620T 300 DPI Thermal Transfer Printhead (OEM P/N: P1080383-227) – Genuine OEM Replacement

The Genuine Zebra ZD420T & ZD620T 300 DPI Thermal Printhead (Zebra OEM P/N: P1080383-227, also cataloged across master engineering spare kits as P1080383-416) is the authentic factory-original high-resolution thermal imaging transducer engineered specifically for Zebra's premium 4-inch desktop thermal transfer printer platforms. Purpose-built to sustain demanding daily labeling cycles within healthcare clinical laboratories, pharmaceutical unit-dose tagging, electronic component tracking, high-density asset identification, and retail compliance marking, this 300 DPI replacement assembly delivers razor-sharp typographic definition, crisp graphic edge acuity, and certified ANSI/ISO Grade-A scannability across standard linear 1D barcodes and dense 2D DataMatrix symbologies. Fabricated directly to Zebra OEM industrial engineering tolerances, it ensures uniform thermal transfer balance, physical resilience against continuous media web tension, and extended mechanical service endurance across millions of linear inches.

At the operational core of this component is an advanced high-efficiency thin-film ceramic micro-resistor array delivering an optical dot density of 300 dots per inch (11.8 dots/mm) across an active 4.09-inch (104 mm) swath width, incorporating 1,248 individually energized thermal heating dots. Built to sustain continuous desktop production velocities up to 4 inches per second (102 mm/s), each thermal micro-dot exhibits instantaneous rise and recovery thermal hysteresis profiles governed by onboard shift registers and high-speed driver ICs. The active linear burn line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive thermal transfer ribbons and chemically coated direct thermal face stocks, while integrated precision substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to prevent dot blooming.

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge (ESD) during logistics transit and facility storage. The assembly features an extruded aluminum heatsink backbone designed to ensure uniform, dead-parallel planar contact against the platen roller, coupled with dedicated snap-in registration pivot brackets keyed explicitly for ZD420T and ZD620T thermal transfer clamshell mechanisms. High-density gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full 4.09-inch burn line.

Identification Notes & Core Distinction

Interchangeability Notice: The Zebra ZD420T and ZD620T printers utilize a thermal transfer carriage chassis with dedicated ribbon roll/cartridge clearance distinct from direct thermal ZD420D/ZD620D models. Part P1080383-227 cannot be installed in direct thermal-only models without chassis binding, nor can it replace printheads in older GX430t printers (105934-038) or newer ZD421/ZD621 series. Forcing an incompatible model will cause bracket damage and electrical short-circuits.

Technical Precision & Installation Warning

ATTENTION CERTIFIED FIELD TECHNICIANS: OEM printhead replacement on Zebra ZD420T and ZD620T desktop printers requires strict compliance with electrostatic discharge and mechanical seating protocols. Careless handling, residual line voltages, or improper retention bracket installation will cause premature element degradation or catastrophic circuit failure.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the desktop printer and disconnect the external 24V DC power supply adapter prior to servicing. Never disconnect or insert printhead signal cables while the printer is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the printer's main logic board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harness for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Snap-In Bracket Seating & Spring Alignment: Following installation into the clamshell top cover, ensure both lateral snap-lock clips click firmly into place and the center pressure springs exert balanced, uniform force against the platen roller. Uneven seating causes ribbon wrinkling, diagonal label drift, and premature edge micro-dot burnout.
• Firmware Configuration & Resistance Calibration: After physical mounting, verify that the printer firmware recognizes the 300 DPI resolution, and perform a media calibration via Zebra Setup Utilities to optimize dot firing pulses without thermal overstressing.
