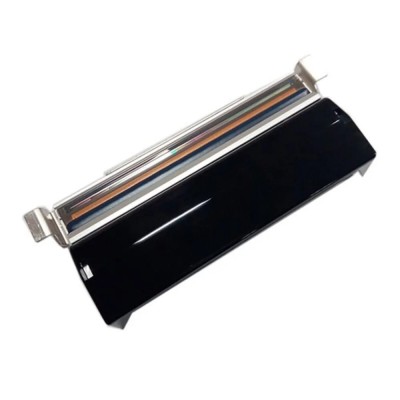

Zebra ZT410 / ZT411 600 DPI Ultra-High Resolution Thermal Printhead Kit (OEM P/N: P1058930-011)
- Write a review
$625.00
$362.50
Save 42%
Factory-original 600 DPI ultra-high-definition printhead kit engineered for Zebra ZT410 and ZT411 industrial printers. Perfect for microscopic electronics labeling, tiny 2D Data Matrix codes, and high-density medical device markers. Delivers unmatched precision and industrial reliability.
GENUINE OEM REPLACEMENT • ULTRA-HIGH RESOLUTION THERMAL HARDWARE
Zebra ZT410 / ZT411 600 DPI Ultra-High Resolution Thermal Printhead Kit (OEM P/N: P1058930-011) – Genuine OEM Replacement
OEM Part Number: P1058930-011 • Core Engine: Ultra-Fine Thin-Film Micro-Resistor Thermal Array (23.6 dots/mm) • Target Platform: Zebra ZT400 Series 4-Inch Industrial (ZT410 & ZT411 600 DPI)
The Zebra ZT410 / ZT411 600 DPI Ultra-High Resolution Thermal Printhead Kit (OEM P/N: P1058930-011) is an authentic, ultra-precision electro-thermal imaging transducer engineered exclusively for Zebra ZT400-Series mid-range industrial label printers operating at microscopic print scales. Fabricated under exacting semiconductor cleanroom tolerances by Zebra Technologies Corporation, this flagship printhead assembly delivers exceptional edge acuity, impeccable raster positioning, and maximum optical contrast. It is the definitive OEM hardware solution for printing micro-miniature 2D DataMatrix codes on semiconductor wafers, surface-mount (SMT) printed circuit boards (PCBs), medical lab specimen slides, cryogenic ampoules, and pharmaceutical serialization tracking labels requiring scannability under high magnification.
At its physical core, the assembly incorporates an ultra-dense 4.09-inch (104.0 mm) transverse ceramic substrate populated with 2,496 active micro-resistor heating elements arrayed at an intrinsic spatial resolution of 600 dots per inch (23.62 dots/mm with a micro-pitch of merely 0.042 mm). Driven by specialized high-speed low-noise onboard shift registers and integrated driver ICs, the heating elements operate under sub-microsecond pulse-width modulation (PWM) energization algorithms, sustaining continuous high-resolution output speeds up to 4.0 inches per second (102 mm/sec). The microscopic burn line is reinforced with an advanced multi-layer diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective passivation glaze, while an onboard negative temperature coefficient (NTC) thermistor network maintains continuous closed-loop thermal compensation to prevent localized element burnout and dot blooming during heavy dark-fill cycles.

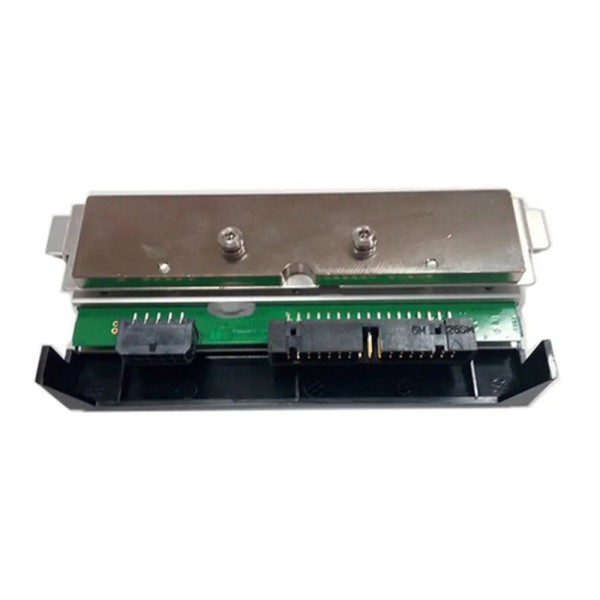

Mounted to a CNC-machined, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 135 mm × 36 mm × 28 mm with an unprimed assembly weight of approximately 115 grams, the module features factory precision pivot dowels and self-aligning spring seats engineered specifically for the ZT400 toggle-bar mechanism. Direct electrical interconnectivity is established via dual high-conductivity gold-plated multi-pin PCB header sockets, minimizing contact impedance and transient voltage drops across sensitive strobe rails. Each P1058930-011 replacement kit is delivered as a 100% genuine factory-sealed OEM unit packaged inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor health and element surface cleanliness prior to commissioning.
Critical Resolution & Drive Pulley Architecture Verification: Before purchasing, verify the model configuration code and native resolution on your printer's serial nameplate. Part number P1058930-011 is designed exclusively for 600 DPI chassis. Installing this unit into a 203 DPI (P/N: P1058930-009) or 300 DPI (P/N: P1058930-010) printer without completing a factory 600 DPI resolution conversion (requiring dedicated 600 DPI stepper motor drive belts, matched platen pulleys, and firmware reprogramming) will cause severe strobe timing mismatch and non-functional feed synchronization.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Parameter | Engineering Specification & Description |
|---|---|
| Current Official OEM P/N | P1058930-011 (Zebra Global Spares Standard Kit Part Number for 600 DPI). |
| Model Series Interoperability | Fully interoperable between ZT410 and ZT411 600 DPI factory configurations. Mounts seamlessly into identical carriage pivot blocks and utilizes universal sensor apertures. |
| Core Technology Architecture | Ultra-fine thin-film micro-resistor line array (23.6 dots/mm) with high-density gold interconnects and specialized high-resistance element matrices. |
| Resolution Disqualification | Strictly incompatible with 203 DPI (P1058930-009) or 300 DPI (P1058930-010) units. Strobe pulse sequences, clock duty cycles, internal driver logic, and dot quantities (2,496 vs 1,248 vs 832 dots) are fundamentally distinct. |
Notice: This printhead is dedicated solely to 4-inch wide ZT410 and ZT411 industrial chassis operating at 600 DPI. Do not attempt retrofit installations into 6-inch wide ZT420/ZT421 units, 110Xi4 600 DPI (G41401M), or legacy ZM400 models without verified chassis conversion parts.
Part Information Matrix
| Product Official Designation | Zebra ZT410 / ZT411 600 DPI Ultra-High Resolution Replacement Printhead Kit |
| OEM Manufacturer & Assembly Fab | Zebra Technologies Corporation (Industrial Printing Solutions Operations) |
| Exact Model Identification | Zebra ZT400 Series 4-inch 600 DPI Ultra-Density Thermal Line Sub-Assembly |
| OEM Part Number (P/N) | P1058930-011 |
| Known Superseded Aliases | P1058930-011-A, ZEB-P1058930011, KIT PRINTHEAD 600DPI ZT410/ZT411 |
| Print Technology Compatibility | Thermal Transfer (Ultra-High-Definition Full Resin, Premium Wax-Resin Ribbons) & Direct Thermal |
| Product Lifecycle Status | Active OEM Production & Tier-1 Spares Maintenance Support |
| Physical Condition | • 100% Brand New, Factory Sealed in Original OEM Anti-Static Moisture Barrier Packaging |
| Country of Origin | Japan / USA (Zebra Certified Semiconductor & Assembly Operations) |
| Primary Industrial Application | Micro-2D DataMatrix Tracking on PCBs, SMT Component Identification, Laboratory Specimen Slides, Medical Vial Serialization |
Technical Specifications Matrix
| Engineering Metric | Certified Parameter Value |
|---|---|
| Native Print Resolution | 600 DPI (23.62 dots per mm / nominal 0.042 mm dot pitch) |
| Total Active Heating Dot Count | 2,496 individual micro-resistor elements aligned in a contiguous linear array |
| Maximum Active Print Width | 4.09 inches (104.0 mm) continuous transverse imaging line |
| Maximum Rated Print Speed | Up to 4.0 inches per second (102 mm/sec) under calibrated toggle pressure |
| Nominal Dot Resistance | Calibrated factory resistance rank ~1,850 – 2,350 Ω (stamped on barcode rank label) |
| Protective Overcoat Glaze | Precision thin-film Diamond-Like Carbon (DLC) & Silicon Nitride (Si3N4) glaze |
| Operating Thermal Range | 5°C to 40°C (40°F to 104°F) operating environment; monitored via onboard NTC thermistor |
| Logic & Strobe Drive Voltage | +5.0V DC logic drive rail; +24.0V DC ±5% nominal head strobe power rail |
| Dimensions & Physical Mass | Approx. 135 mm × 36 mm × 28 mm | Dry assembly net weight: ~115 g |
| Electrical Interconnect Interface | Dual high-conductivity gold-plated multi-pin PCB header sockets |
FIELD ADVISORY
Technical Precision & Installation Warning
ATTENTION: Ultra-high resolution 600 DPI thermal printheads feature microscopically compact heating elements (0.042 mm dot pitch) and ultra-sensitive integrated driver arrays. Installation, toggle pressure balance, and firmware verification must strictly be executed by qualified service engineers in accordance with Zebra ZT400-Series depot repair protocols.
- ESD Protection: Dense onboard micro-driver ICs and shift register circuits are acutely vulnerable to electrostatic breakdown. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or touching the printhead harness contacts.
- Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC mains power from the rear power entry module and wait at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting the printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
- Cable / Harness Inspection: Thoroughly inspect the dual wiring harnesses for pinched insulation, copper fatigue, or oxidized pins. Verify that both multi-pin connectors are seated squarely and latched securely; misaligned or loose insertion can cross 24V power traces into low-voltage logic lines, destroying the main logic board.
- Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metal scrapers, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the ultra-thin 600 DPI protective glaze permanently severs dot continuity.
- Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
- Part Number & Pressure Calibration: At 600 DPI, minute deviations in platen contact will produce barcode voids. Ensure the factory toggle pressure blocks are balanced symmetrically across the platen roller. After replacement, verify printhead resistance rank calibration and darkness settings via the ZT411 touch display or ZT410 front panel configuration menu.
Target Equipment Compatibility Matrix
Zebra ZT410 Industrial Platform (600 DPI)
- Zebra ZT410 Ultra-High Resolution Industrial Printer (600 DPI)
- Zebra ZT410 Micro-Labeling Thermal Transfer Models
- Zebra ZT410 SMT / Component Tracking Series (600 DPI)
- Model Codes: ZT41046-xxxxxxx / ZT41046-Txxxxxx
Zebra ZT411 Industrial Platform (600 DPI)
- Zebra ZT411 Color Touch Display Industrial Printer (600 DPI)
- Zebra ZT411 High-Density Specimen & Micro-2D Marking Chassis
- Zebra ZT411 On-Metal RFID Ultra-Precision Series (600 DPI)
- Model Codes: ZT41146-xxxxxxx / ZT41146-Txxxxxx
Incompatible Equipment Alert (Do Not Procure for the Following Platforms):
This assembly is strictly NOT COMPATIBLE with standard 203 DPI versions of the ZT410/ZT411 (OEM P/N: P1058930-009), 300 DPI versions (OEM P/N: P1058930-010), 6-inch wide ZT420/ZT421 models (OEM P/N: P1058930-012 / P1058930-013), 110Xi4 600 DPI engines (OEM P/N: G41401M), nor legacy ZM400 / Z4M units. Always verify the printer serial nameplate and existing part number prior to commissioning.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Guarantee: Every printhead kit is guaranteed to be 100% genuine Zebra OEM, factory-fresh, sealed in original anti-static moisture-barrier packaging, and completely free of missing dot elements, electrical opens, or shorts upon delivery.
2. Store Warranty Policy: We provide a 30 working-day store warranty against dead-on-arrival (DOA) electrical defects from the recorded delivery date. Warranty claims require an unedited, continuous video recording showing unboxing of the intact factory seal and full physical installation by a qualified technician, including cable connection verification and self-test configuration printout.
3. Final Sale Conditions: Due to the sensitive semiconductor characteristics of micro-resistor thermal heating arrays, all sales are strictly final once the anti-static vacuum seal is breached or the printhead is mounted to the printer chassis. Scratched protective glaze, physical chipping from sharp tools or staples, reverse voltage destruction, heat burnout from extreme darkness settings, or ribbon wrinkle adhesive contamination are explicitly excluded from warranty coverage.
