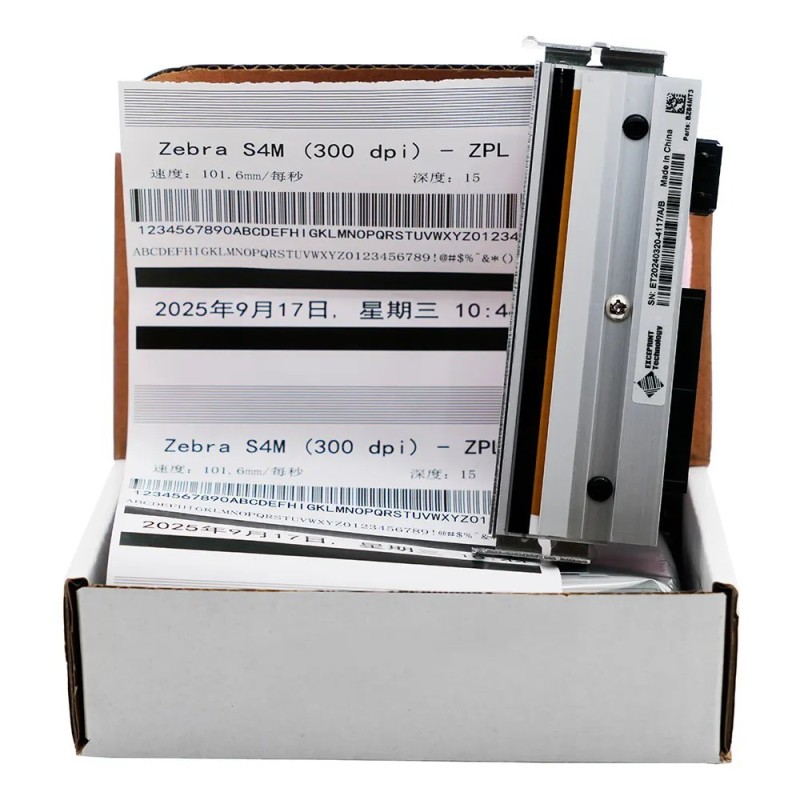

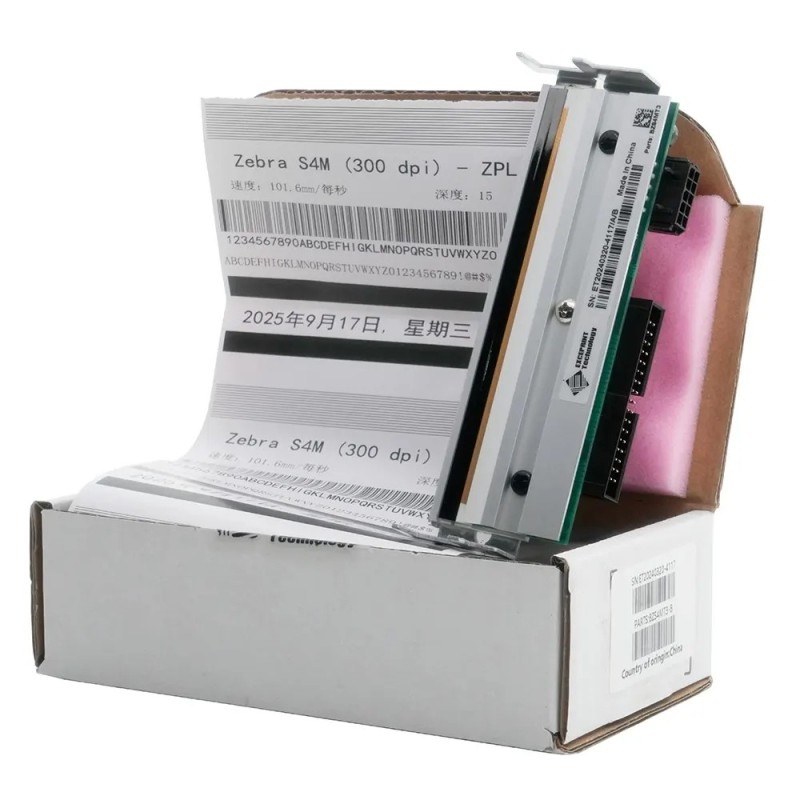

Zebra S4M 300 DPI Industrial Thermal Printhead (OEM P/N: G41401M) – Genuine OEM Replacement

The Genuine Zebra S4M 300 DPI Industrial Thermal Printhead (Zebra OEM P/N: G41401M) is the authentic factory-original high-resolution thermal imaging transducer engineered specifically for Zebra's mid-range S4M industrial tabletop printers. Purpose-built to sustain demanding daily duty cycles across warehousing operations, pharmaceutical labeling, electronics asset tracking, retail compliance tagging, and detailed product marking, this 300 DPI replacement assembly delivers razor-sharp text clarity, crisp graphic definition, and certified ANSI/ISO Grade-A scannability across standard linear barcodes and complex 2D DataMatrix symbologies. Fabricated directly to Zebra OEM industrial engineering tolerances, it ensures uniform thermal transfer balance, physical resilience against continuous media web tension, and extended mechanical service endurance across millions of linear inches.

At the operational core of this component is an advanced high-efficiency thin-film ceramic micro-resistor array delivering an optical dot density of 300 dots per inch (11.8 dots/mm) across an active 4.09-inch (104 mm) swath width, incorporating 1,248 individually energized thermal heating dots. Built to sustain continuous production feed velocities up to 6 inches per second (152 mm/s), each thermal micro-dot exhibits instantaneous rise and recovery thermal hysteresis profiles governed by onboard shift registers and high-speed driver ICs. The active linear burn line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive thermal transfer ribbons and chemically coated direct thermal paper stocks, while integrated precision substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to prevent dot blooming.

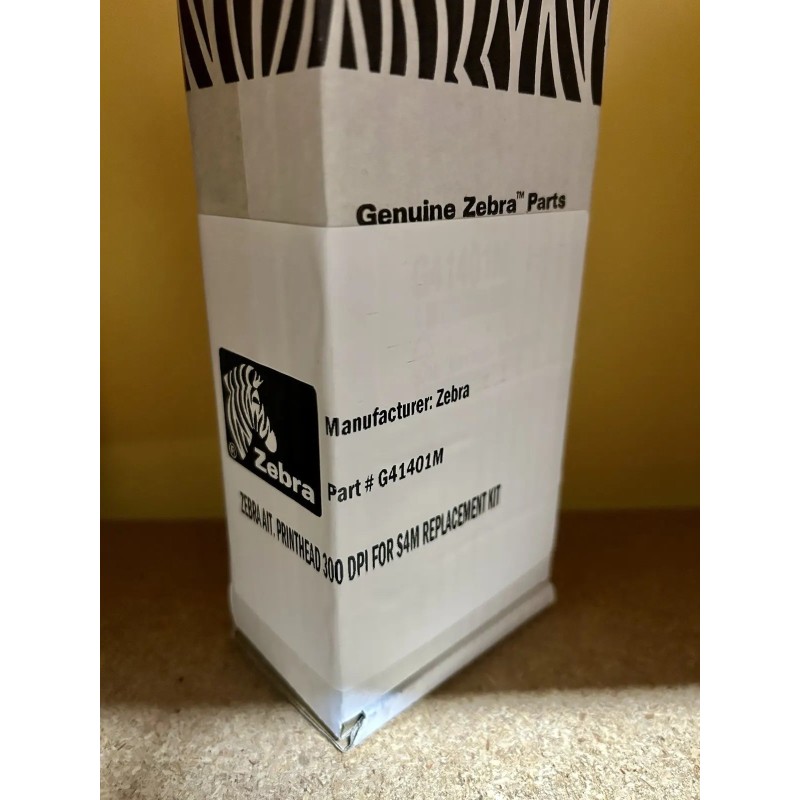

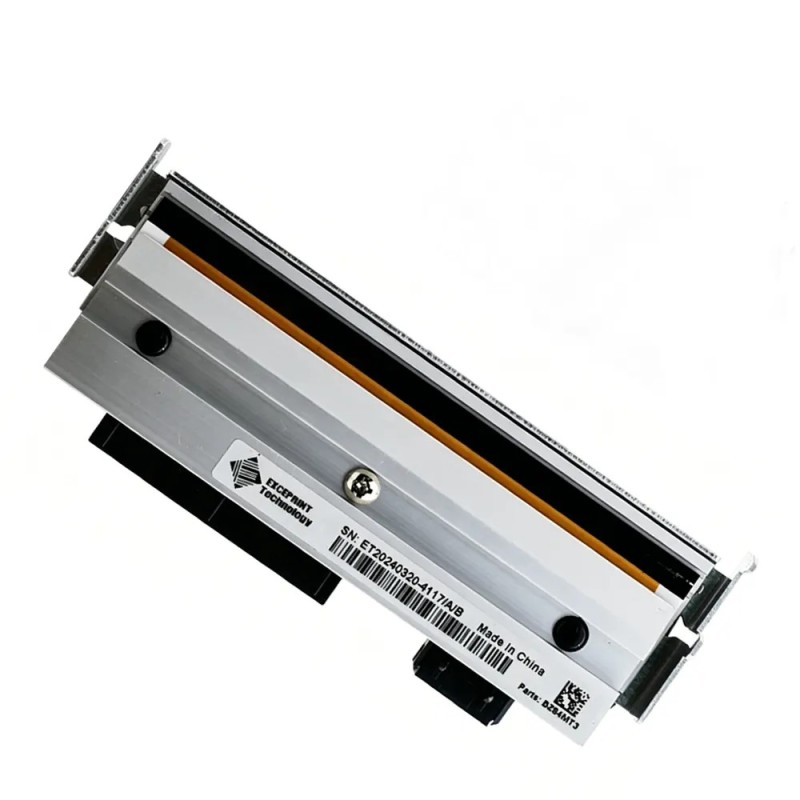

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge (ESD) during logistics transit and facility storage. The assembly features an extruded, precision-milled aluminum heatsink backbone designed to ensure uniform, dead-parallel planar contact against the platen roller, coupled with dedicated registration pivot points keyed explicitly for Zebra S4M print mechanism brackets. Multi-pin gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full 4.09-inch burn line.

Identification Notes & Core Distinction

Interchangeability Notice: The Zebra S4M employs a specialized pivoting head bracket and flexible cable interconnect design distinct from both legacy Stripe S400 printers and heavy-industrial Z4M/ZT400 series. Part G41401M cannot be installed in legacy S400 (44998M), Z4Mplus (79057M), ZT410/ZT411 (P1058930-010), 105SL series, or PAX print engines. Forcing an incompatible model will cause cable damage, bracket binding, and printhead driver circuit burnout.

Technical Precision & Installation Warning

ATTENTION CERTIFIED FIELD ENGINEERS: OEM printhead replacement on Zebra S4M industrial tabletop printers requires strict compliance with electrostatic discharge and mechanical alignment protocols. Careless handling, residual line voltages, or improper toggle pressure will cause premature element degradation or catastrophic circuit failure.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the printer and disconnect the main AC electrical feed prior to servicing. Never disconnect or insert printhead signal cables while the printer is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the printer's main logic board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harnesses for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Toggle Pressure & Burn Line Alignment: Following installation into the S4M print mechanism, verify balanced, uniform head pressure across the platen roller. Uneven lateral pressure causes ribbon wrinkling, premature edge erosion, and uneven optical density across labels.
• Firmware Configuration & Resistance Entry: After physical mounting, verify that the printhead resistance value corresponds accurately within the printer configuration settings to optimize dot firing pulses without thermal overstressing.

Compatible Printer Models & Engine Platforms
