Zebra 110PAX3 300 DPI Right-Hand Thermal Printhead (OEM P/N: 43038M / 43038-1M) – Genuine OEM Replacement

The Genuine Zebra 110PAX3 300 DPI Right-Hand Thermal Printhead (Zebra OEM P/N: 43038M / 43038-1M) is the authentic factory-original high-resolution thermal imaging transducer engineered specifically for heavy-duty, continuous 24/7 print-and-apply automated packaging systems configured in Right-Hand (RH) media paths. Built to sustain the extreme operational throughput demands of manufacturing packaging cells, distribution sorting lines, automated compliance labeling, and high-density barcode tagging, this 300 DPI assembly delivers razor-sharp text clarity, complex graphic definition, and certified ANSI/ISO Grade-A scannability across standard linear and dense 2D DataMatrix barcodes. Manufactured to strict Zebra OEM industrial specifications, it guarantees balanced thermal transfer, high structural resistance against continuous web tension, and extended mechanical endurance across millions of linear inches.

At the operational core of this component is an advanced high-efficiency thin-film ceramic micro-resistor array delivering a native optical resolution of 300 dots per inch (11.8 dots/mm) across an active print width of 4.09 inches (104 mm), encompassing 1,248 individually energized thermal heating dots. Engineered to support high production velocities up to 12 inches per second (305 mm/s), each thermal micro-dot features instantaneous rise and recovery thermal hysteresis profiles governed by onboard high-speed driver ICs. The active burn line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive wide-format ribbons and harsh direct thermal paper chemistries, while integrated precision substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to eliminate element blooming.

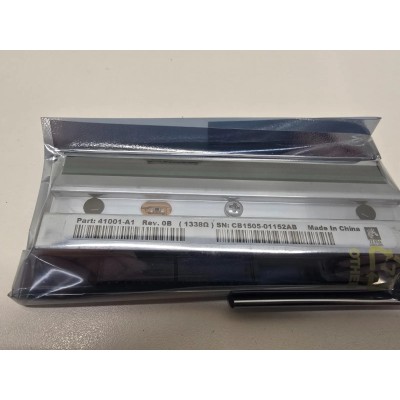

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge during logistics transit and storage. The assembly features an extruded, precision-milled aluminum heatsink backbone that ensures consistent planar contact against the platen roller, coupled with dedicated registration pivot points keyed explicitly for Right-Hand (RH) 110PAX3 carriage mechanisms. High-density gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full 4.09-inch burn line.

Identification Notes & Core Distinction

Interchangeability Notice: In 110PAX3 engine architecture, Right-Hand (RH) and Left-Hand (LH) printheads possess opposite mechanical cable egress angles, keying pin positions, and grounding paths. Part 43038M cannot be installed into LH print engines, nor can it replace subsequent 110PAX4 printheads (41000-1M / G41000-1M), 203 DPI engines (43036-1M), or tabletop 110XiIII Plus / Xi4 models. Forcing an incompatible variant will compromise connector integrity and fracture the ceramic substrate.

Technical Precision & Installation Warning

ATTENTION CERTIFIED AUTOMATION ENGINEERS: OEM printhead replacement on Zebra 110PAX3 print engines demands strict compliance with electrostatic discharge and mechanical alignment protocols. Careless handling, residual line voltages, or improper toggle pressure will cause premature element degradation or catastrophic circuit failure.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the 110PAX3 print engine and disconnect the main AC electrical feed prior to servicing. Never disconnect or insert printhead signal cables while the engine is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the engine main logic board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harnesses for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Right-Hand Mechanical Alignment & Toggle Pressure: Calibrate the pivot arms and toggle pressure dials uniformly across the platen roller. Uneven pressure induces tracking skew, ribbon creasing, and premature edge micro-dot burnout.
• Firmware Configuration & Resistance Entry: After physical mounting, verify that the printhead resistance value corresponds accurately within the 110PAX3 engine setup menu or configuration software to optimize dot firing pulses without thermal overstressing.
