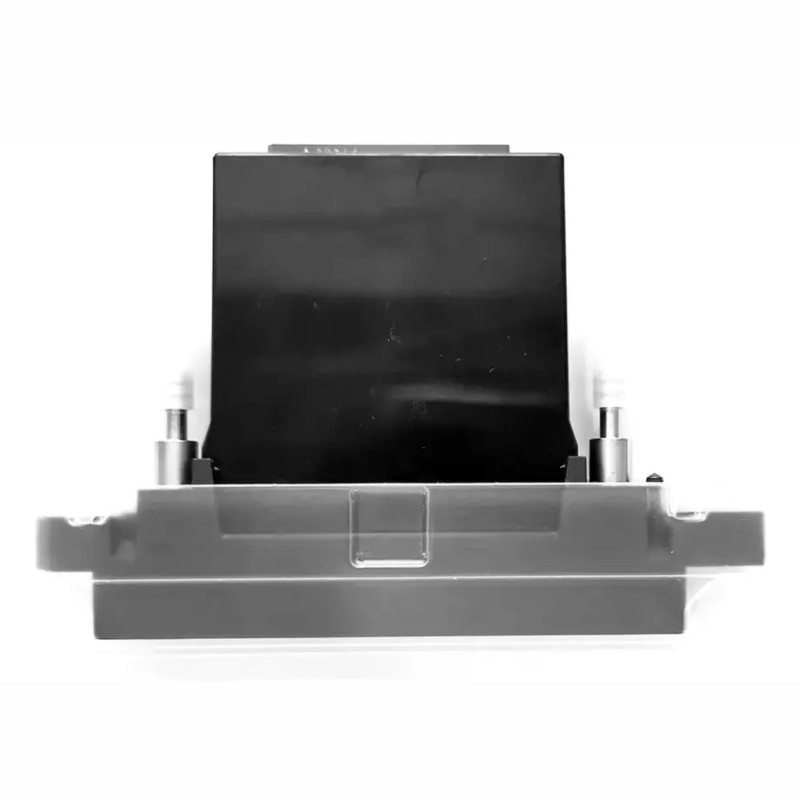

Konica Minolta KM1024MHB Printhead (14pL - Medium Drop / Built-in Heater)
- Write a review
$1,250.00
The Konica Minolta KM1024MHB is a versatile medium-drop shared-wall piezo printhead delivering 14 pL drops at 360 dpi across a 72 mm print width. Equipped with a built-in heater, it supports both solvent and UV inks with stable viscosity control. Ideal for industrial graphics and production systems requiring reliable medium-drop performance with temperature management.
Product Overview
The Konica Minolta KM1024MHB is the medium-drop heated version of the established KM1024 series industrial inkjet printhead. Featuring 1024 nozzles at a native 360 dpi resolution and a 72 mm print width, it delivers precise 14 picoliter drops using efficient shared-wall 3-cycle piezoelectric technology. The integrated heater enables stable jetting of both solvent and UV inks by maintaining optimal viscosity, significantly expanding application flexibility compared to the non-heated MNB variant. With greyscale capability up to 8 levels and a maximum firing frequency of 12.8 kHz, the KM1024MHB provides balanced coverage, good detail and reliable performance for a wide range of industrial graphics, packaging and production printing systems.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead (Medium Drop with Built-in Heater)
- Technology: Piezo Drop-on-Demand (Shared Wall 3-Cycle)
- Ink Type Compatibility: Solvent, UV
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Konica Minolta |
| Native Resolution | 360 dpi (180 dpi × 2 lines) |
| Nozzle Count | 1024 nozzles (512 nozzles × 2 lines) |
| Max Drive Frequency | 12.8 kHz |
| Droplet Volume | 14 pL |
| Print Width | 72 mm |
| Grey Scale Levels | Up to 8 levels |
| Internal Heater | Yes (Built-in) |
| Dimensions (W × D × H) | Approximately 131 mm × 18 mm × 89 mm |
| Weight | Approximately 150 g |
| Nozzle Pitch | 70.5 μm (141 μm × 2 lines) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always handle the printhead in a fully ESD-protected environment. Wear a properly grounded wrist strap and use anti-static work surfaces. Never touch the nozzle plate or electrical contacts with bare hands.
- Power Isolation Warning: Completely power down the printer and disconnect all drive electronics before installing or removing the printhead. Confirm zero residual voltage on the interface.
- Cable Replacement Protocol: It is strongly recommended to replace the FFC ribbon cable and connectors with new ones during every printhead installation to prevent contact resistance and signal issues.
- Heater & Fluid Management: Utilize the built-in heater to maintain optimal ink viscosity, especially when using UV inks. Use only thoroughly filtered and degassed inks. Allow adequate warm-up time before starting production.
- Greyscale Operation: Supports up to 8 grey levels. Ensure drive electronics and waveform are correctly configured for 14 pL medium-drop performance at 12.8 kHz.
- Maintenance: Perform regular purge and cleaning cycles using approved fluids. Never allow the nozzle plate to dry out. Follow manufacturer guidelines for heater operation and cool-down.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Industrial systems designed for KM1024 series (shared-wall) printheads; verify exact model and chassis compatibility before installation |
| Primary Applications | Solvent and UV industrial graphics, packaging, outdoor signage, and production printing requiring reliable medium-drop performance with temperature control |
| Key Advantages | Balanced 14 pL medium drop, built-in heater for solvent/UV flexibility, 72 mm wide format, 8-level greyscale, compact shared-wall design, proven industrial reliability |
Terms, Warranty & Customer Protection:

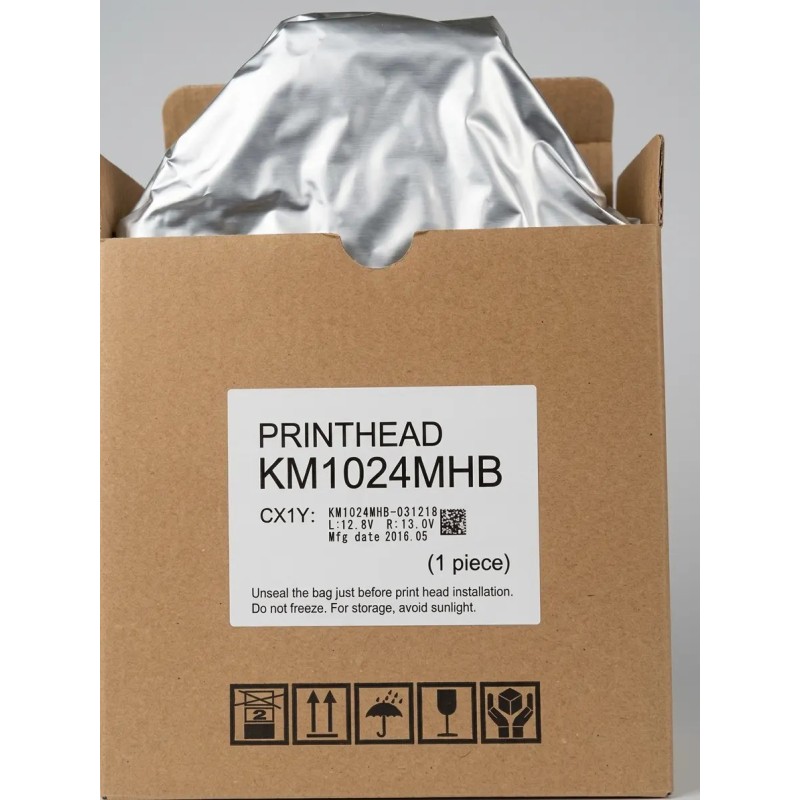

- Pre-Installation Guarantee: 100% brand-new, factory-original product. Sealed and never installed or exposed to any fluid.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects, subject to submission of complete unboxing video and professional installation video by qualified technicians.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in any equipment, the sale is final. No returns or exchanges will be accepted.
