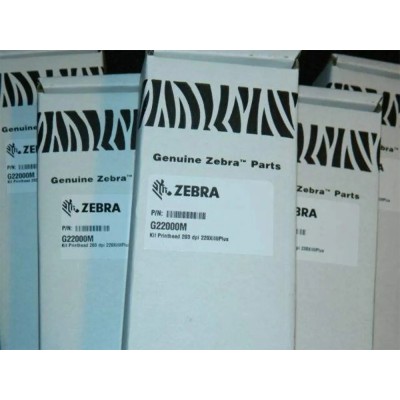

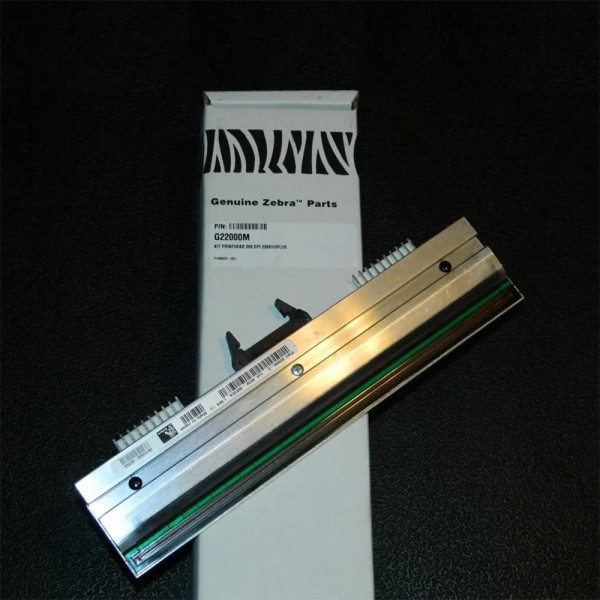

Zebra 220XiIII Plus 203 DPI Thermal Printhead Kit (OEM P/N: G22000M) – Genuine OEM Replacement

The Zebra 220XiIII Plus 203 DPI Thermal Printhead Kit (OEM P/N: G22000M) is an industrial-grade, wide-web thermal print engine component engineered specifically for high-duty mission-critical barcoding, chemical drum labeling, pallet tracking, and wide-format compliance marking. Manufactured under exacting OEM semiconductor tolerances by Zebra Technologies, this printhead assembly delivers uniform heat transfer and crisp edge definition across expansive 8.5-inch continuous print swaths. Designed to operate seamlessly within rigorous enterprise environments, the component demonstrates exceptional mechanical longevity and electrical stability during sustained 24/7 roll-to-roll direct thermal and thermal transfer conversion processes.

Built upon an integrated ceramic substrate, the thermal line array contains 1,728 individual micro-machined resistive heating dots calibrated at an intrinsic spatial resolution of 203 dots per inch (8 dots/mm). The internal circuitry is driven by integrated shift registers and high-speed driver ICs that regulate micro-second pulse energization cycles, enabling synchronous linear print speeds reaching up to 10 inches per second (254 mm/sec). To preserve physical dot integrity against abrasive media paths and back-coating ribbon friction, the active heating line is fortified with an ultra-durable silicon nitride / diamond-like carbon (DLC) protective glaze passivation layer, augmented by onboard thermistor networks for real-time thermal compensation and burn-out prevention.

Structurally mounted to a precision-milled aluminum heatsink bracket measuring approximately 255 mm × 42 mm × 35 mm and weighing approximately 380 grams, the assembly guarantees optimal heat dissipation across wide print paths to eliminate lateral dot drift. Direct electrical interconnectivity is established via dual heavy-duty gold-plated multi-pin header sockets, assuring minimal voltage drop across high-current strobe lines. Each G22000M replacement kit is distributed as a 100% genuine factory-sealed unit encapsulated inside certified anti-static barrier shielding, complete with pre-calibrated grounding leads to shield against ambient static discharge during field integration.

Identification Notes & Core Distinction

Notice: This printhead is dedicated solely to 220-class 8.5-inch thermal mechanisms. Do not attempt retrofit installations into narrow-web Xi series chassis (110XiIII Plus, 140XiIII Plus, 170XiIII Plus) or subsequent Xi4 chassis without matching harness and bracket specifications.

Part Information Matrix

Technical Specifications Matrix

Technical Precision & Installation Warning

ATTENTION: Direct thermal and thermal transfer printheads are highly sensitive electro-thermal semiconductor arrays. Replacement and mechanical alignment must strictly be carried out by qualified maintenance technicians following Zebra-certified depot repair procedures.

• ESD Protection & Static Discharge Mitigation: The microscopic thin-film driver ICs on this 8.5-inch thermal array are exceptionally vulnerable to electrostatic breakdown. Technicians must utilize an ESD-certified wrist grounding strap clamped to the printer chassis before touching or unpacking the assembly.
• Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC main power and wait a minimum of 60 seconds for internal power supply filtering capacitors to fully bleed down before disconnecting or seating printhead cables. Connecting headers while power is active will arc across 24V strobe pins and permanently burn internal shift registers.
• Cable / Harness Inspection: Inspect the dual wiring harnesses for trace pinching, insulation wear, or oxidized contact pins. Verify pin 1 orientation on both the harness and printhead headers; seating connectors backwards will result in instant catastrophic driver IC destruction.
• Glaze Line Maintenance & Chemical Cleaning: Clean the burn line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metal implements, razor scrapers, or abrasive textiles to remove baked-on ribbon residue, as microscopic scratching of the protective glass glaze permanently destroys dot continuity.
• Handling Factory-Sealed Unit: Avoid any direct contact with the ceramic heater element line using bare fingers. Natural skin oils contain acids that degrade the protective overcoat under sustained thermal cycling, accelerating premature element burnout.
• Mechanical Pressure & Darkness Calibration: Following physical mounting, verify that the toggle pressure blocks and cam balances are distributed symmetrically across the wide 8.5-inch platen roller. Reset printer darkness settings to baseline and re-enter the printhead resistance value via printer front-panel configuration or ZPL commands (^R command) to prevent overdriving the elements.
