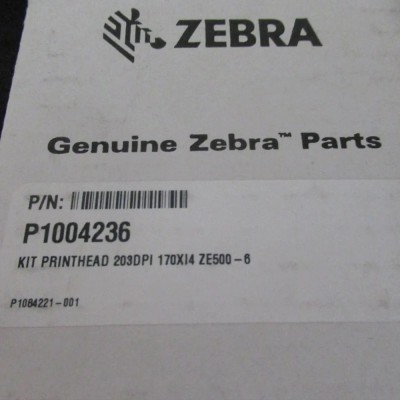

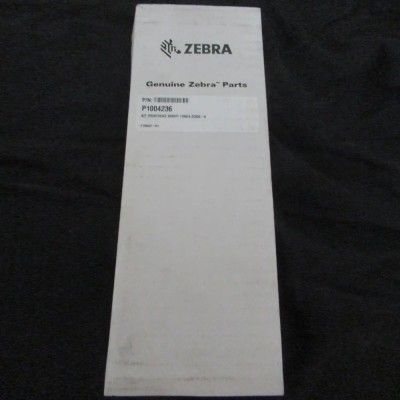

Zebra 170Xi4 203 DPI Thermal Printhead (P1004236)
- Write a review
$780.00
$452.40
Save 42%
Authentic OEM 203 DPI wide-format thermal printhead for Zebra 170Xi4 6-inch industrial printers. Delivers full 6.6-inch active print width coverage for pallet placards, compliance shipping labels, and master container tags. Direct factory replacement assembly restoring full-web dot continuity.
Genuine OEM Replacement • Extra-Wide Industrial Thermal Printhead
Zebra 170Xi4 203 DPI Thermal Printhead (P1004236) – Genuine OEM Replacement
OEM Part Number: P1004236 | Core Engine: Extra-Wide Thin-Film Thermal Array (8 dots/mm) | Platform: Zebra 170Xi4 Ultra-Rugged Industrial Printer (203 DPI)
Product Description
The Zebra 170Xi4 203 DPI Thermal Printhead (part number P1004236) is an authentic OEM extra-wide industrial replacement component designed specifically for the heavy-duty Zebra 170Xi4 industrial printer platform. Built for continuous 24/7 high-volume labeling environments, this high-performance printhead excels in applications requiring broad media width—such as AIAG/ODETTE automotive shipping containers, chemical drum GHS compliance labeling, master logistics pallet identification, and primary packaging placards.
Operating with a true native resolution of 203 DPI (8 dots/mm) across an expanded active print width of 6.6 inches (168 mm) with 1,344 addressable thermal elements, this thin-film ceramic micro-resistor line array operates in perfect synchronicity with Zebra's proprietary E³® (Element Energy Equalizer™) dynamic pulse-control logic. Its hardened glass-passivated glaze layer is engineered to withstand abrasive friction from industrial wax, wax/resin, and harsh full-resin thermal transfer ribbons as well as direct thermal facestocks at continuous production speeds up to 12 inches per second (305 mm/s).
Constructed on a heavy-gauge, broad-span cast-aluminum heatsink spine, the assembly ensures rapid, uniform thermal dissipation across the full 6.6-inch web, eliminating thermal bleeding, line fade, and thermal head runaway during extended print cycles. Every unit is shipped as a 100% genuine factory-sealed OEM component, electrically balanced and pre-tested to exacting factory resistance tolerances to guarantee direct drop-in field installation without manual burn-voltage trimming.
Always verify the exact part number and printer series (170Xi4 203 DPI vs. 300 DPI vs. 140Xi4/ZT620) on the existing printhead or printer configuration label before ordering.
Engineering Reference Identification Notes & Core Distinction
| Reference | Description |
|---|---|
| P1004236 (Current) | Original OEM 203 DPI extra-wide (6.6-inch) thermal printhead assembly specifically engineered for the Zebra 170Xi4 platform |
| P1004237 (300 DPI Variant) | 300 DPI high-resolution alternative for Zebra 170Xi4; requires drive gear/pulley conversion kit if changing resolution |
| G46000M (Legacy 170XiIII Plus) | 203 DPI printhead for earlier-generation 170XiIII Plus / 170XiIII; different connector routing and bracket grounding alignment |
| P1004234 (140Xi4 Series) | 5.04-inch (128 mm) 203 DPI printhead for Zebra 140Xi4; narrower mechanical form factor and lower dot count (1,024 dots) |
Notice: Part number P1004236 is dedicated exclusively to the Zebra 170Xi4 (6.6-inch, 203 DPI configuration). It cannot be fitted into 300 DPI 170Xi4 printers without an official 300 DPI resolution drive conversion kit and firmware configuration adjustments. It is strictly incompatible with narrower chassis models (110Xi4, 140Xi4), older legacy 170XiIII Plus units (G46000M), or newer ZT620-series hardware due to differing heatsink bolt patterns and wiring harnesses.
Product Details
Part Information Matrix
| Parameter | Detail |
|---|---|
| Product Name | Zebra 170Xi4 203 DPI Thermal Printhead (P1004236) |
| Manufacturer | Zebra Technologies Corporation |
| Exact Model | 170Xi4 203 DPI Extra-Wide Thermal Subassembly |
| OEM Part Number | P1004236 |
| Known Alias | KIT PRINTHEAD 203 DPI 170Xi4, 170Xi4 203DPI Head, ZEB-P1004236 |
| Printing Technology & Media Type | Thermal Transfer (Ribbon) and Direct Thermal (Thermal Facestock) |
| Product Status | Available as genuine OEM replacement hardware |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan / United States (Zebra OEM Global Sourcing) |
| Industrial Application | Extra-wide pallet tracking placards, chemical drum GHS labels, AIAG automotive shipment compliance, and broad industrial packaging |
Technical Specifications
| Parameter | Value |
|---|---|
| Printhead Technology | Extra-Wide Heavy-Duty Thin-Film Ceramic Micro-Resistor Line Array |
| Native Resolution | 203 DPI (8 dots/mm) |
| Active Print Width | 6.6 inches (168 mm) extra-wide swathe |
| Total Dot Count | 1,344 individually addressable heating elements |
| Dot Pitch | 0.125 mm (125 μm dot-to-dot spacing) |
| Maximum Operating Speed | Up to 12 inches per second (305 mm/sec) |
| Thermal Energy Control | Fully calibrated for Zebra E³® (Element Energy Equalizer™) dynamic pulse control |
| Ribbon & Media Compatibility | Industrial wax, premium wax/resin, and harsh-environment pure resin ribbons; coated direct thermal paper and synthetic media |
| Electrical & Signal Interface | Multi-pin gold-plated dual header receptacle with direct chassis ESD grounding path |
| Mounting Structure | 6.6-inch heavy-duty cast aluminum heatsink spine with precision Xi4 alignment dowels |
Field Advisory Technical Precision & Installation Warning
Printhead replacement must be performed by certified technical personnel following official Zebra Technologies maintenance documentation. Operating across an extra-wide 6.6-inch web makes mechanical toggle alignment, balanced platen pressure, and static mitigation critical.
- ESD Protection: Always wear a grounded anti-static wrist strap when opening the package and handling the printhead. Thermal resistor arrays and integrated driver logic are highly vulnerable to electrostatic discharge.
- Power Isolation: Turn off the printer power switch and disconnect the main AC power cord before opening the printhead mechanism. Never connect or disconnect the printhead wiring harness while the printer is powered.
- Cable Recommendation: Inspect the printhead wiring harness and pins for burnishing, crimping, or corrosion. Replace damaged cables immediately to ensure balanced dot burn voltage across the 1,344-element line.
- Cleaning & Surface Protection: Never touch the glass-coated burn line with bare fingers or sharp metal tools. Clean the printhead elements exclusively using 99.7% pure isopropyl alcohol (IPA) and lint-free foam swabs after every ribbon roll change.
- Extra-Wide Mechanical Pressure Alignment: Due to the extended 6.6-inch width, verify dual-toggle pressure balance and head-stop cam position across the platen roller to prevent ribbon wrinkling, diagonal tracking drift, and uneven print density across web edges.
- Part Number Verification: Confirm that the printer chassis indicates a 170Xi4 203 DPI configuration and that the defective hardware matches part number P1004236 prior to installation.
Compatible Models & Systems
This genuine part number P1004236 is confirmed compatible with the following Zebra industrial printer configurations:
Compatible Zebra 170Xi4 Models:
- Zebra 170Xi4 (203 DPI Standard Industrial Configuration)
- Zebra 170Xi4 (Converted from 300 DPI to 203 DPI using official 203 DPI Drive Kit)
Subsystem Specifications:
- Direct integration with 170Xi4 Main Logic Board and Switching Power Supply
- Compatible with standard 6.6-inch 170Xi4 high-speed rubber platen roller (G46011M)
Recommendation: Always cross-check the part number printed on the existing printhead or listed in the machine’s service documentation before ordering. Do not assume interchangeability with Zebra 170XiIII Plus (G46000M), 140Xi4 (P1004234), or ZT620 (P1083320-015) series printheads without physical and electrical verification.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to media, ribbon, or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
OEM P/N: P1004236
