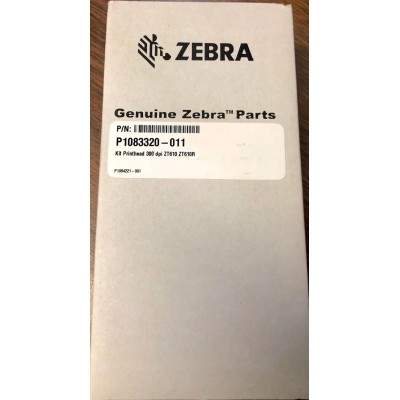

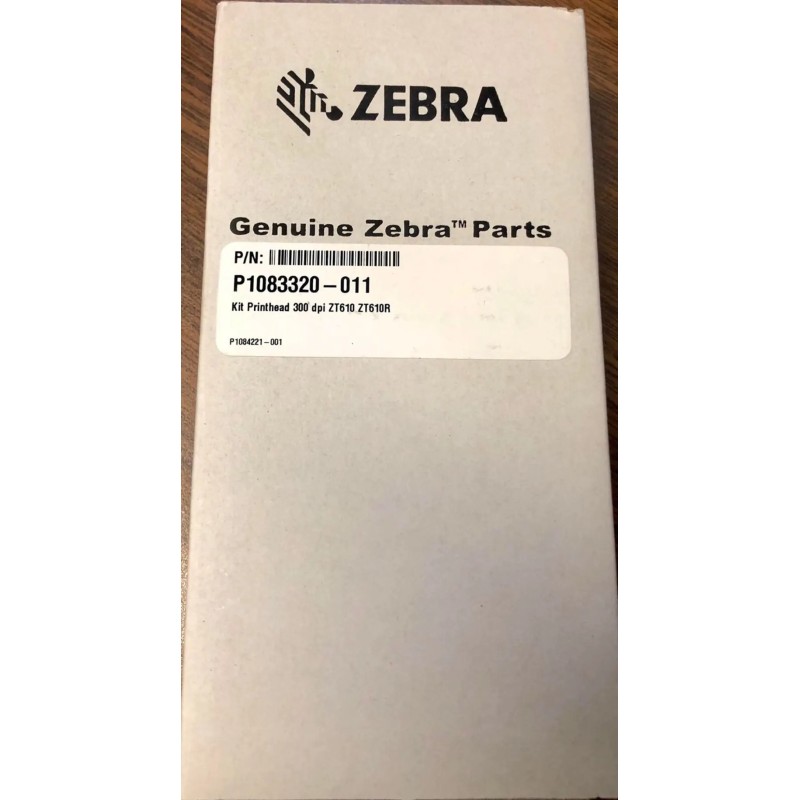

Zebra ZT610 / ZT610R 300 DPI High-Performance Printhead Kit (OEM P/N: P1083320-011) – Genuine OEM Replacement

The Zebra ZT610 / ZT610R 300 DPI High-Performance Printhead Kit (OEM P/N: P1083320-011) is an authentic, high-resolution electro-thermal imaging transducer engineered specifically for Zebra ZT600-Series mission-critical industrial barcode printers and RFID printing/encoding engines. Manufactured as the next-generation architectural successor to the legacy 110Xi4 300 DPI platform, this printhead assembly is built to exacting cleanroom semiconductor tolerances by Zebra Technologies Corporation. Engineered to withstand continuous 24/7 industrial manufacturing duty cycles, it delivers microscopic dot placement precision, exceptional edge sharpness, and deep optical black contrast required for high-density 2D DataMatrix symbologies, small-format pharmaceutical tracking, automotive component labeling, and UHF RFID smart label serialization.

At its architectural foundation, the printhead features an advanced 4.09-inch (104.0 mm) transverse ceramic substrate populated with 1,248 active micro-resistor heating dots calibrated at an intrinsic spatial resolution of 300 dots per inch (11.81 – 12.0 dots/mm with an ultra-fine 0.084 mm dot pitch). Integrated high-frequency onboard shift registers and power driver ICs modulate energy pulses under microsecond pulse-width modulation (PWM) control, sustaining industrial linear feed velocities reaching up to 12.0 inches per second (305 mm/sec). To withstand relentless abrasive media friction and severe thermal cycling across millions of linear inches, the microscopic heating line is shielded by a fortified diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective glaze overcoat, backed by an onboard negative temperature coefficient (NTC) thermistor network for real-time closed-loop temperature compensation.

Pre-assembled on a precision-machined, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 136 mm × 38 mm × 32 mm with an unprimed assembly weight of approximately 130 grams, the module incorporates ZT600-specific structural alignment dowels, ground-continuity clips, and dual toggle pressure seats. High-speed serial image data, logic power, and 24V strobe currents are interfaced via heavy-duty gold-plated multi-pin PCB header sockets engineered for low contact impedance and high noise immunity. Distributed as a 100% genuine factory-sealed OEM kit, each unit is encapsulated inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor gate health and burn line cleanliness prior to field commissioning.

Identification Notes & Core Distinction

Notice: This printhead is dedicated solely to 4-inch wide ZT610 and ZT610R industrial chassis operating at 300 DPI. Do not attempt retrofit installations into 6-inch wide ZT620/ZT620R units (P/N: P1083320-015/016), ZT400 series, or legacy Xi-series industrial engines without verified OEM parts catalog specifications.

Part Information Matrix

Technical Specifications Matrix

Technical Precision & Installation Warning

ATTENTION: High-density 300 DPI industrial thermal printheads feature tightly spaced micro-resistor elements and sensitive integrated driver circuitry operating under heavy mechanical clamping force. Installation and toggle alignment must strictly be executed by qualified service engineers or certified hardware personnel in accordance with Zebra ZT600-Series depot maintenance manuals.

• ESD Protection: Dense onboard driver ICs and shift register circuits are acutely vulnerable to electrostatic breakdown. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or handling the printhead harness contacts.
• Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC mains power from the rear power entry module and wait at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting the printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
• Cable / Harness Inspection: Thoroughly inspect both heavy-duty wiring harnesses for pinched insulation, copper fatigue, or oxidized contact pins. Ensure both multi-pin connectors are fully seated parallel into the PCB sockets; misaligned or loose insertion can cross 24V power traces into low-voltage logic lines, destroying the main logic board.
• Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
• Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
• Part Number Verification & Toggle Balancing: Verify that the printhead toggle pressure blocks and side guide cam are adjusted symmetrically across the 4-inch platen roller to prevent ribbon wrinkling and premature edge wear. After replacement, verify printhead resistance rank calibration and darkness settings via the ZT610 color touch display or Zebra Setup Utilities.

Target Equipment Compatibility Matrix
