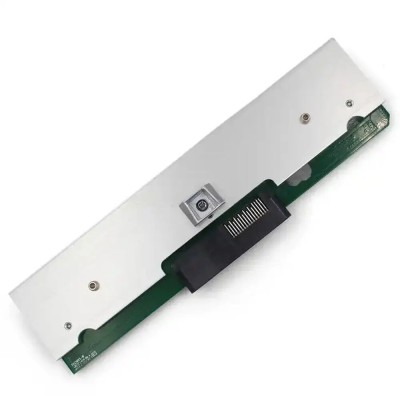

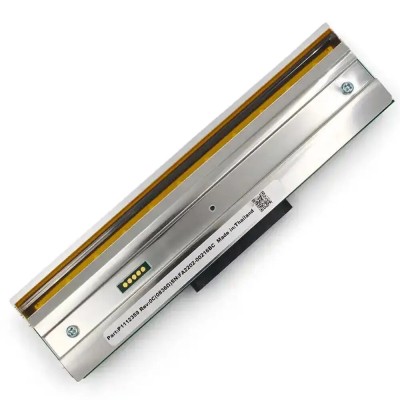

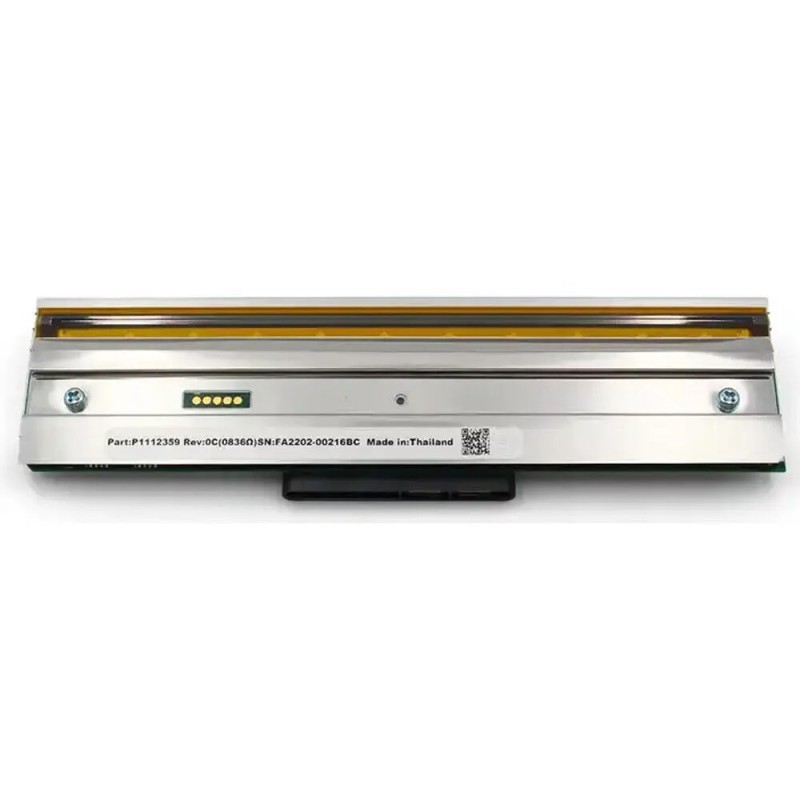

Zebra ZE521-6 203 DPI Wide-Format Print Engine Printhead (OEM P/N: P1112750-012) – Genuine OEM Replacement

The Genuine Zebra ZE521-6 203 DPI Wide-Format Print Engine Printhead (Zebra OEM P/N: P1112750-012) is the authentic factory-original thermal imaging transducer engineered specifically for Zebra's next-generation ZE521 6-inch automated print-and-apply print engine systems. Built to withstand continuous 24/7 mission-critical operations across high-speed packaging lines, automated pallet labeling systems, chemical drum identification, and broad compliance shipping workflows, this wide-format printhead assembly delivers robust operational longevity and unmatched barcode clarity. Manufactured strictly to OEM industrial engineering tolerances, it guarantees uniform thermal dot transfer, high mechanical rigidity against heavy web tension, and sustained ANSI/ISO Grade-A scannability across millions of linear inches.

At the operational core of this component is a precision-crafted high-efficiency thin-film ceramic micro-resistor array delivering an optical dot density of 203 dots per inch (8.0 dots/mm) across an active wide-format swath width of 6.6 inches (168 mm), encompassing 1,344 individually addressed micro-heating dots. Engineered to support rapid line velocities up to 14 inches per second (356 mm/s), each thermal micro-element features an instantaneous thermal hysteresis response cycle governed by onboard driver logic circuits. The microscopic heating line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive wide-format ribbons and harsh direct thermal paper chemistries, while dual integrated substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to prevent dot blooming.

Fabricated in Japan, every unit is delivered 100% brand-new and sealed in original Zebra factory ESD protective barrier packaging, safeguarding delicate silicon gate arrays from electrostatic degradation during transit and facility storage. The structural architecture utilizes an extruded, heavy-duty CNC-machined aluminum heatsink chassis that maintains perfectly flat, parallel nip line contact across wide platen rollers while dissipating high-current thermal loads. Low-impedance gold-plated multi-pin terminal interfaces ensure pristine electrical signal transmission for high-speed print data streams and high-current strobes, coupled with integrated chassis grounding tabs that continuously bleed away friction-induced static charges.

Identification Notes & Core Distinction

Interchangeability Notice: The Zebra ZE521 series utilizes upgraded high-speed digital communications and revised chassis mounting geometry distinct from previous-generation print engines. Printhead P1112750-012 cannot be interchanged with legacy ZE500-6 printheads (P1046697-058), 4-inch ZE511 engines, or tabletop models like the 220Xi4 / ZT620. Attempting cross-series mounting risks irreversible mechanical damage and connector shorting.

Technical Precision & Installation Warning

ATTENTION CERTIFIED AUTOMATION ENGINEERS: OEM printhead replacement in high-speed Zebra ZE521 print engines demands rigorous ESD protection and precise mechanical alignment. Improper handling, residual line voltages, or mechanical contact with the microscopic burn line will result in immediate diode failure or premature wear lines.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the ZE521 print engine and disconnect the main AC electrical feed prior to servicing. Never disconnect or insert printhead signal cables while the engine is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the engine main logic board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harnesses for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Wide-Swath Mechanical Pressure Calibration: Following installation into the ZE521 toggle assembly, verify balanced, uniform head pressure across the entire 6.6-inch platen roller. Uneven lateral pressure causes ribbon wrinkling, premature edge erosion, and uneven optical density across wide-format labels at high printing speeds.
• Firmware Configuration & Resistance Entry: After physical mounting, verify that the printhead resistance value corresponds accurately within the ZE521 print engine settings or Zebra PrintNet bridge to ensure proper pulse duty-cycles and eliminate premature thermal stress.
