Genuine OEM Replacement • Precision Thermal Printhead

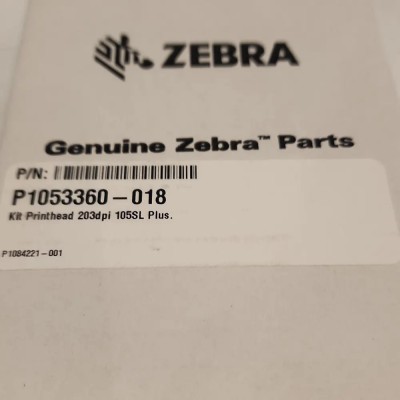

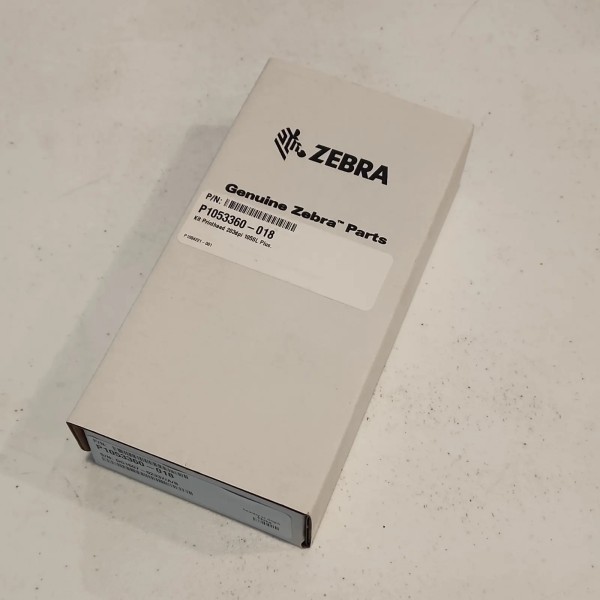

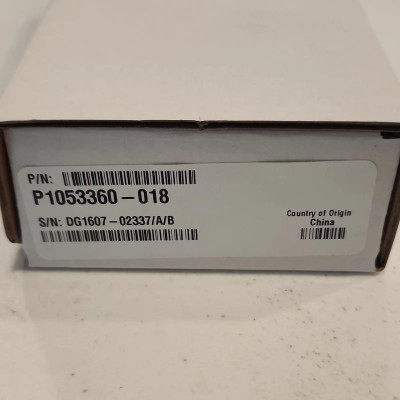

Zebra 105SLPlus 203 DPI Thermal Printhead (P1053360-018) – Genuine OEM Replacement
OEM Part Number: P1053360-018 | Core Engine: Standard-Density Thin-Film Thermal Array (8 dots/mm) | Platform: Zebra 105SLPlus Industrial Barcode Label Printer (203 DPI)
Product Description
The Zebra 105SLPlus 203 DPI Thermal Printhead (part number P1053360-018) is an authentic OEM replacement assembly engineered specifically for the high-durability Zebra 105SLPlus industrial printer platform. Developed for continuous, high-volume logistics, pallet labeling, warehousing distribution, and manufacturing tracking, this printhead delivers rich black optical density, crisp barcode edge definition, and complete ANSI/ISO scannability across standard 1D linear codes and large 2D matrix formats.
Featuring a native resolution of 203 DPI (8 dots/mm) across an active 4.09-inch (104 mm) print line width, this thin-film resistor array is fully calibrated to work in unison with Zebra's proprietary E³® (Element Energy Equalizer™) onboard circuitry. Its ceramic-glazed wear layer is hardened to resist abrasive friction from wax, wax-resin, and pure resin thermal transfer ribbons as well as direct thermal face stocks at sustained print speeds up to 12 inches per second (305 mm/s).
Constructed with an integrated aluminum mounting spine, the assembly ensures optimal heat dispersion to eliminate print fading during long roll runs and prevent thermal head runaway. Every unit is shipped as a 100% genuine factory-sealed OEM component, electrically balanced and pre-tested to ensure straightforward drop-in field installation without manual burn-line resistance modification.
Always verify the exact part number and native printer resolution (203 DPI vs. 300 DPI) on the existing printhead or printer configuration label before ordering.
Engineering Reference Identification Notes & Core Distinction
| Reference |
Description |
| P1053360-018 (Current) |
Original OEM 203 DPI thermal printhead assembly specifically engineered for the Zebra 105SLPlus series |
| P1053360-019 (300 DPI Variant) |
High-resolution 300 DPI printhead for Zebra 105SLPlus; requires drive gear/belt conversion if changing resolution |
| G32432-1M / G32432M (Legacy 105SL) |
203 DPI printhead for the older classic Zebra 105SL; mechanically and electrically incompatible with 105SLPlus |
Notice: Part number P1053360-018 is dedicated exclusively to the Zebra 105SLPlus (203 DPI version). It cannot be fitted directly onto the older legacy 105SL chassis, nor is it interchangeable with Zebra Xi4, ZT410, or ZT411 printheads due to differences in bracket locating pins, ground tab positions, and cable connector geometry.
Product Details
Part Information Matrix
| Parameter |
Detail |
| Product Name |
Zebra 105SLPlus 203 DPI Thermal Printhead (P1053360-018) |
| Manufacturer |
Zebra Technologies Corporation |
| Exact Model |
105SLPlus 203 DPI Thermal Assembly |
| OEM Part Number |
P1053360-018 |
| Known Alias |
105SL Plus 203DPI Head, KIT PRINTHEAD 203 DPI 105SLPlus, P1053360018 |
| Printing Technology & Media Type |
Thermal Transfer (Ribbon) and Direct Thermal (Thermal Facestock) |
| Product Status |
Available as genuine OEM replacement hardware |
| Condition |
100% Genuine OEM Factory Sealed |
| Country of Origin |
Japan / United States (Zebra OEM Global Sourcing) |
| Industrial Application |
Standard compliance shipping labels, inventory control, warehouse tracking, and industrial pallet ticketing |
Technical Specifications
| Parameter |
Value |
| Printhead Technology |
Standard-Density Thin-Film Ceramic Micro-Resistor Line Array |
| Native Resolution |
203 DPI (8 dots/mm) |
| Active Print Width |
4.09 inches (104 mm) |
| Total Dot Count |
832 addressable thermal elements across line |
| Dot Pitch |
0.125 mm (125 μm dot-to-dot spacing) |
| Maximum Operating Speed |
Up to 12 inches per second (305 mm/sec) |
| Thermal Energy Control |
Fully compatible with Zebra E³® (Element Energy Equalizer™) logic |
| Ribbon / Media Compatibility |
Wax, Wax/Resin, Resin ribbons; direct thermal synthetic and coated paper media |
| Electrical & Signal Interface |
Dual-row gold-plated multi-pin receptacle with integrated ground chassis path |
| Mounting Structure |
Structural aluminum heatsink plate with 105SLPlus precision locating alignment lugs |
Field Advisory Technical Precision & Installation Warning
Printhead replacement must be performed by trained technical personnel following official Zebra Technologies maintenance documentation. Improper handling, mechanical pressure imbalances, or static shocks can irreversibly destroy thermal resistor elements.
- ESD Protection: Always wear a grounded anti-static wrist strap when opening the package and handling the printhead. Thermal resistor arrays and integrated driver logic are highly vulnerable to electrostatic discharge.
- Power Isolation: Turn off the printer power switch and disconnect the AC power cord before opening the printhead mechanism. Never connect or disconnect the printhead cable while the printer is powered.
- Cable Recommendation: Inspect the printhead wiring harness and pins for burnishing, crimping, or corrosion. Replace damaged cables immediately to ensure balanced dot burn voltage and avoid short circuits.
- Cleaning & Surface Protection: Never touch the glass-coated burn line with bare fingers or sharp metal tools. Clean the printhead elements exclusively using 99.7% pure isopropyl alcohol (IPA) and lint-free foam swabs.
- Mechanical Pressure Alignment: After physical mounting, verify toggle pressure balance and head-stop cam position across the platen roller to prevent ribbon wrinkling, premature edge wear, and uneven print density.
- Part Number Verification: Confirm that the printer chassis indicates a 105SLPlus 203 DPI configuration and that the defective hardware matches part number P1053360-018 prior to installation.
Compatible Models & Systems
This genuine part number P1053360-018 is confirmed compatible with the following Zebra barcode printer configurations:
Compatible Zebra 105SLPlus Models:
- Zebra 105SLPlus (203 DPI Native Configuration)
- Zebra 105SLPlus (300 DPI to 203 DPI Converted Units with 203 DPI Drive Kit)
Subsystem Specifications:
- Direct integration with 105SLPlus Main Logic Board and Power Supply
- Compatible with standard 105SLPlus 4-inch rubber platen roller
Recommendation: Always cross-check the part number printed on the existing printhead or listed in the machine’s service documentation before ordering. Do not assume interchangeability with classic Zebra 105SL (G32432-1M / G32433M), Zebra 110Xi4 (P1004230), or ZT410/ZT411 series printheads without physical and electrical verification.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to media, ribbon, or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
