Zebra ZT111 / ZT211 / ZT231 203 DPI Serialized Printhead Kit (OEM P/N: P1123335-152) – Genuine OEM Replacement

The Zebra ZT111 / ZT211 / ZT231 203 DPI Serialized Printhead Kit (OEM P/N: P1123335-152) is an authentic, factory-calibrated electro-thermal printing transducer designed specifically for Zebra's entry-industrial and light-manufacturing barcode printer family. Manufactured to stringent semiconductor cleanroom tolerances by Zebra Technologies Corporation, this printhead assembly integrates factory hardware serialization that communicates directly with printer firmware (Link-OS Basic / Print DNA) to track service lifecycles, operational mileage, and energy delivery. Delivering consistent thermal conduction, deep optical black density, and sharp barcode edge acuity, this unit is engineered for enterprise warehousing, logistics routing, healthcare specimen tagging, retail backroom distribution, and light-industrial manufacturing operations.

At its core, the assembly incorporates an advanced 4.09-inch (104.0 mm) transverse ceramic substrate populated with 832 active micro-resistor heating dots calibrated at an intrinsic spatial resolution of 203 dots per inch (8 dots/mm, nominal 0.125 mm dot pitch). High-speed onboard driver ICs and shift register logic modulate energy pulses via microsecond pulse-width modulation (PWM), supporting continuous linear throughput velocities reaching up to 10.0 inches per second (254 mm/sec) on ZT111 and up to 12.0 inches per second (305 mm/sec) on ZT231 architectures. The heating line is shielded by a fortified diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective glaze, while an onboard negative temperature coefficient (NTC) thermistor network maintains real-time closed-loop temperature compensation to prevent localized element burnout and print fade under demanding duty cycles.

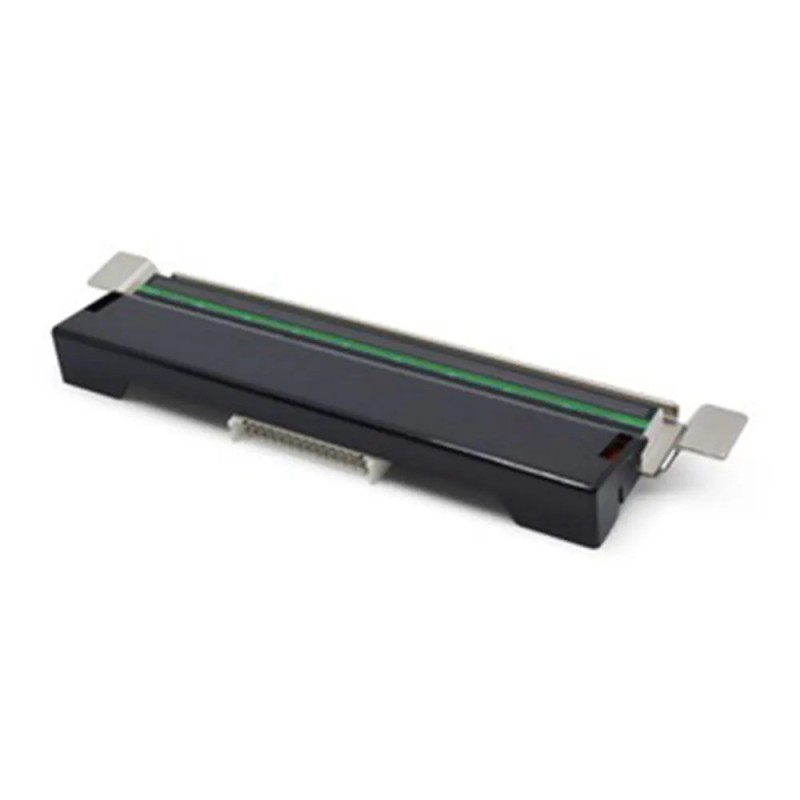

The printhead is pre-assembled onto an extruded, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 128 mm × 34 mm × 26 mm with an unprimed assembly weight of approximately 95 grams, featuring precision-machined pivot alignment lugs, grounding tabs, and spring seats designed specifically for the ZT100/ZT200 Gen-2 tool-less carriage mechanism. Direct electrical logic, strobe currents, and serial tracking telemetry are coupled through a high-reliability gold-plated multi-pin Flexible Flat Cable (FFC) connector header designed for low electrical resistance and noise immunity. Distributed as a 100% genuine factory-sealed OEM kit, each unit is encapsulated inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor gate integrity and burn line cleanliness prior to on-site commissioning.

Identification Notes & Core Distinction

Notice: This printhead is dedicated solely to Zebra ZT111, ZT211, and ZT231 non-RFID industrial chassis operating at 203 DPI. Do not attempt retrofit installations into older legacy ZT200-series units or RFID-enabled models without matching OEM parts catalog specifications.

Part Information Matrix

Technical Specifications Matrix

Technical Precision & Installation Warning

ATTENTION: Direct thermal and thermal transfer ceramic printheads are electrostatic-sensitive micro-devices equipped with digital tracking ICs. Installation and toggle alignment must strictly be executed by qualified service technicians or trained hardware personnel in accordance with Zebra ZT111/ZT211/ZT231 maintenance procedures.

• ESD Protection: Dense onboard shift registers and digital serialization EEPROM circuits are acutely vulnerable to electrostatic breakdown. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or handling the printhead harness contacts.
• Power Isolation & Absolute Prohibition of Hot-Swapping: Turn off the main AC power switch and disconnect the power cord, waiting at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
• Cable / FFC Inspection: Carefully inspect the flexible flat cable contacts for bent fingers, lint, or adhesive residue. Seat the cable squarely into the connector housing and lock the retaining latch fully; angled insertion can cross 24V power traces into 5V logic lines, resulting in instantaneous destruction of the internal controller board.
• Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
• Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
• Part Number Verification & Toggle Balancing: Verify that the printhead toggle pressure blocks and latch cams are adjusted symmetrically across the platen roller to prevent ribbon wrinkling and premature edge wear. After replacement, the serialized printhead will register automatically with the ZT231 color touch display and Zebra Print DNA management utilities.

Target Equipment Compatibility Matrix
