Zebra ZE500-6 300 DPI Print Engine Printhead (OEM P/N: P1046697-059) – Genuine OEM Replacement

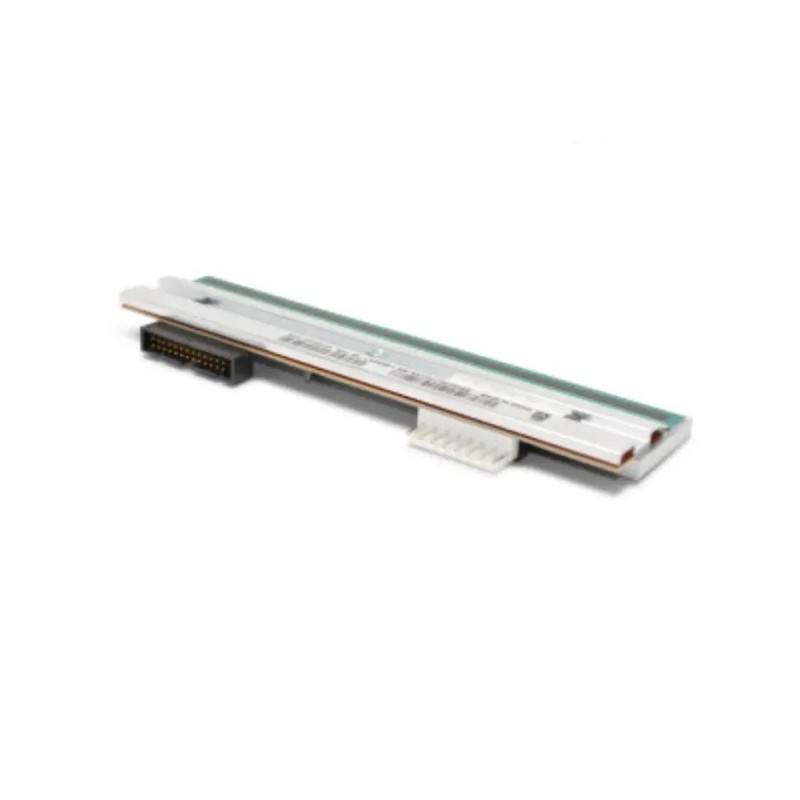

The Genuine Zebra ZE500-6 300 DPI Print Engine Printhead (Zebra OEM P/N: P1046697-059) is the authentic factory-original thermal imaging transducer engineered specifically for heavy-duty, 24/7 mission-critical print-and-apply automated packaging systems. Purpose-built to sustain the aggressive throughput demands of continuous factory packaging lines, manufacturing sorting plants, and high-speed pallet labeling automation, this wide-format 6-inch thermal engine delivers uncompromising barcode scannability and alphanumeric edge acuity. Fabricated directly to Zebra OEM industrial specifications, the assembly guarantees optimal thermal equilibrium, structural resistance against sustained mechanical media tension, and extended abrasive operational endurance across millions of linear inches.

At the operational core of this component is an advanced high-density thin-film ceramic substrate micro-resistor array delivering a native resolution of 300 dots per inch (11.8 dots/mm) across an active wide-format swath width of 6.6 inches (168 mm). Engineered to support maximum line velocities up to 12 inches per second (305 mm/s), each thermal micro-heating dot features an instantaneous hysteresis recovery cycle controlled via integrated driver logic circuits. The microscopic heating element line is fortified with an ultra-durable silicon nitride / diamond-like carbon (DLC) protective overcoat, specifically formulated to resist abrasive wear from high-volume thermal transfer ribbons and aggressive direct thermal chemical topcoats, while dual integrated thermal thermistors continuously report substrate core temperatures to maintain optimal burn line pulse profiles.

Each assembly is manufactured in Japan and delivered 100% factory-sealed within certified static-shielding barrier packaging to safeguard the delicate microscopic driver ICs against ESD degradation during logistics transit. The structural architecture comprises a precision-machined heavy aluminum heatsink backbone that ensures consistent planar contact against the platen roller, coupled with multi-point registration alignment slots that lock seamlessly into the ZE500-6 print engine chassis. Integrated high-density gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full 6.6-inch burn line.

Identification Notes & Core Distinction

Interchangeability Notice: Thermal printheads of differing resolutions cannot simply be hot-swapped without matching drive electronics, sensor recalibration, and firmware resolution configuration. P1046697-059 is strictly intended for 300 DPI ZE500-6 engines and cannot be mounted in tabletop Xi-series printers (such as 170Xi4 or 220Xi4) nor 4-inch ZE500-4 print engines.

Technical Precision & Installation Warning

ATTENTION CERTIFIED AUTOMATION ENGINEERS: OEM printhead replacement in ZE500 print engines requires certified technician handling and strict protocol compliance. Electrostatic discharge, improper burn line pressure, or cable misalignment will cause immediate microscopic diode failure and premature burn line degradation.

• Strict Electrostatic Discharge (ESD) Protection: Wear a verified, grounded ESD wrist strap throughout the replacement procedure. The micro-resistor driver logic ICs embedded directly on the ceramic substrate are vulnerable to catastrophic gate failure if exposed to static potentials as low as 100V.
• Power Isolation & Zero Hot-Swapping: Completely power down the print engine and disconnect the main AC electrical feed prior to servicing. Never disconnect or reconnect printhead signal and power cables while the unit is energized. Live plugging generates inductive transients that will instantaneously destroy the printhead logic ICs and corrupt the main engine logic board.
• Cable & Gold Contact Inspection: Inspect the printhead interconnect cables for terminal oxidation, pin deformation, or debris before mating. Ensure connectors are inserted perfectly parallel, with locking tabs fully engaged. Misaligned cable insertion leads to pin bridging and short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The microscopic burn line must never come into contact with metal screwdrivers, utility knives, rings, or abrasive cleaning pads. Scratching the protective DLC coating permanently creates dead pixel lines (voids across barcode elements). Use solely 99.7% pure electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs for cleaning.
• Mechanical Pressure & Alignment Calibration: When re-installing into the ZE500-6 pivot carriage, ensure uniform toggle pressure across both adjustment dials. Uneven lateral pressure causes ribbon wrinkling, premature edge wear, and uneven optical density across wide-format 6-inch labels.
• Firmware Resistance Calibration: Following physical mounting, verify that the printhead resistance value / darkness profile is properly matched in the ZE500 engine setup menu or configuration software to optimize dot firing pulses without thermal overstressing.
