GENUINE OEM REPLACEMENT • MISSION-CRITICAL WIDE-FORMAT THERMAL HARDWARE

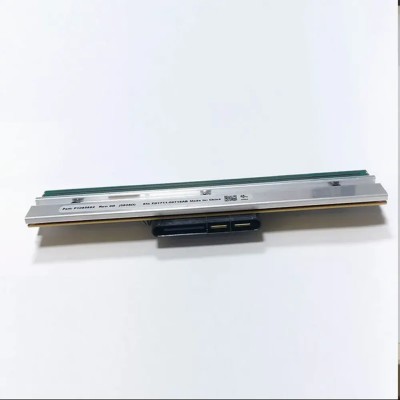

Zebra ZT620 / ZT620R 203 DPI Wide-Format Printhead Kit (OEM P/N: P1083320-015) – Genuine OEM Replacement
OEM Part Number: P1083320-015 • Core Engine: Next-Gen 170Xi-Class Wide-Web Thin-Film Thermal Array (8 dots/mm) • Target Platform: Zebra ZT600 Series 6-Inch Industrial (ZT620 & ZT620R 203 DPI)
The Zebra ZT620 / ZT620R 203 DPI Wide-Format Printhead Kit (OEM P/N: P1083320-015) is an authentic, pinnacle-class industrial electro-thermal printing transducer engineered specifically for Zebra ZT600-Series 6-inch wide-web mission-critical barcode printers and RFID encoding engines. Designed as the direct technological successor to the legendary 170Xi4 industrial platform, this printhead assembly is manufactured to uncompromising cleanroom semiconductor standards by Zebra Technologies Corporation to endure 24/7 continuous operations under extreme industrial duty cycles. Delivering exceptional micro-dot heat transfer, razor-sharp edge contrast, and uncompromised barcode scannability across wide-web media paths, it is purpose-built for automotive supply chains (AIAG/Odette labels), chemical 55-gallon GHS drum hazard labeling, cross-dock master pallet routing, and large-format UHF RFID smart tracking.
At its architectural and physical core, the assembly incorporates an extended 6.6-inch (168.0 mm) transverse ceramic substrate populated with 1,344 active micro-resistor heating dots arrayed at an intrinsic spatial resolution of 203 dots per inch (8 dots/mm, nominal 0.125 mm dot pitch). Integrated high-frequency onboard driver ICs and shift register logic modulate energy pulses under microsecond pulse-width modulation (PWM) control, sustaining industrial linear feed velocities reaching up to 12.0 inches per second (305 mm/sec). To withstand relentless mechanical wear caused by wide abrasive paper liners and heavy-duty resin ribbons, the active heating line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective overcoat glaze, while an onboard negative temperature coefficient (NTC) thermistor network provides continuous closed-loop thermal compensation to prevent localized element overheating and lateral dot drift.
The sub-assembly is pre-mounted to an extruded, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 204 mm × 38 mm × 32 mm with an unprimed assembly weight of approximately 205 grams, featuring precision-machined pivot alignment dowels, grounding-continuity straps, and dual-toggle balance pressure notches tailored specifically to the ZT620 reinforced all-metal carriage. Low-impedance signal transmission, logic power, and high-current 24V strobe rails are interfaced via heavy-duty gold-plated multi-pin PCB header sockets engineered for high noise immunity. Distributed as a 100% genuine factory-sealed OEM kit, each unit is encapsulated inside certified moisture-vapor and electrostatic discharge (ESD) shielding to maintain semiconductor gate integrity and burn line cleanliness prior to field commissioning.
Critical ZT600 vs. Legacy 170Xi4 & ZT420 Architecture Verification: Prior to procurement, verify the model code and resolution on your printer's regulatory serial nameplate. Part number P1083320-015 is engineered exclusively for 6-inch ZT620 and ZT620R (203 DPI) platforms. Although the ZT620 succeeds the legacy 170Xi4, this printhead uses redesigned mounting dowels, revised grounding springs, and updated electrical header orientations that are mechanically and electrically incompatible with 170Xi4 chassis (OEM P/N: G46500M). Furthermore, it cannot be installed into standard 6-inch ZT420/ZT421 printers (OEM P/N: P1058930-012), 4-inch ZT610 printers (OEM P/N: P1083320-010), nor 300 DPI ZT620 chassis (OEM P/N: P1083320-016) without replacing drive pulleys, platen assemblies, and updating firmware pitch configuration.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Parameter |
Engineering Specification & Description |
| Current Official OEM P/N |
P1083320-015 (Zebra Global Spares Standard Kit Part Number for ZT620 203 DPI). |
| Model Series Interoperability |
Fully compatible across standard ZT620 and RFID-enabled ZT620R 203 DPI industrial platforms. Features unified optical sensor cutaways and reinforced dual-toggle balance pivot seats. |
| Legacy Predecessor Distinction |
Successor to the 170Xi4 203 DPI printhead (OEM P/N: G46500M). P1083320-015 incorporates redesigned carriage retention geometry, modified ground straps, and updated low-resistance connector sockets incompatible with 170Xi4 frames. |
| Resolution Disqualification |
Strictly incompatible with 300 DPI ZT620 carriages (OEM P/N: P1083320-016). Micro-resistor element densities (1,344 dots vs 2,016 dots), strobe pulse sequences, clock frequencies, and motor gearing ratios are entirely distinct. |
Notice: This printhead is dedicated solely to 6-inch wide ZT620 and ZT620R industrial chassis operating at 203 DPI. Do not attempt retrofit installations into 4-inch wide ZT610/ZT610R units (P/N: P1083320-010/011/012), ZT420/ZT421 series, or 220Xi4 wide-web systems without verified OEM parts catalog specifications.
FIELD ADVISORY
Technical Precision & Installation Warning
ATTENTION: Wide-format 6-inch high-performance industrial thermal printheads operate under extreme electrical strobe currents and high dual-toggle mechanical clamping force. Installation and toggle alignment must strictly be executed by qualified service engineers or certified hardware personnel in accordance with Zebra ZT600-Series depot maintenance manuals.
- ESD Protection: Dense onboard shift registers and switching MOSFETs distributed along the 6.6-inch array are exceptionally vulnerable to electrostatic breakdown. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or handling the printhead harness contacts.
- Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC mains power from the rear power entry module and wait at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting the printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
- Cable / Harness Inspection: Thoroughly inspect both heavy-duty wiring harnesses for pinched insulation, copper fatigue, or oxidized contact pins. Ensure both multi-pin connectors are fully seated parallel into the PCB sockets; misaligned or loose insertion can cross 24V power traces into low-voltage logic lines, destroying the main logic board.
- Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
- Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
- Dual-Toggle Pressure & Resistance Calibration: On 6-inch wide carriages, unbalanced toggle pressure will produce ribbon wrinkling, diagonal drift, and localized voids. Ensure both outer and inner toggle blocks are balanced symmetrically across the media width. After replacement, verify printhead resistance rank calibration and darkness settings via the ZT620 color touch display or Zebra Setup Utilities.
