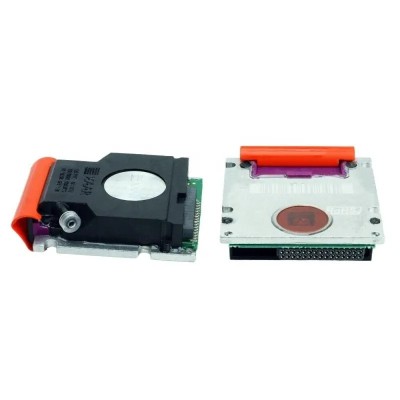

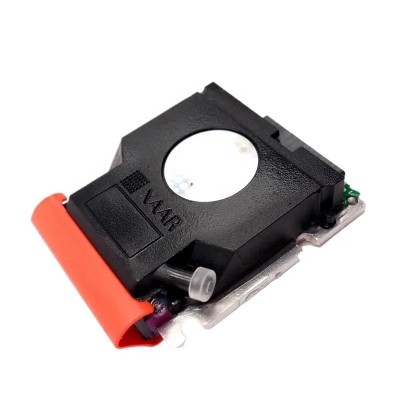

Xaar 128/80W Original OEM Printhead 80pL Binary Wetting
- Write a review
$160.00
Genuine Xaar factory-original 128/80W piezo printhead with wetting nozzle plate and 80 pL drops. Compact binary head for coding and wide-format applications requiring wetting plate characteristics.
Product Overview
The Xaar 128/80W Original OEM Printhead (XJ128/80W) is a compact 80 pL binary drop-on-demand (DoD) piezoelectric printhead featuring 128 active nozzles and a specialized wetting nozzle plate. Operating at firing frequencies up to 5.5 kHz across a 17.4 mm print swathe, it is built for high-volume coverage and robust fluid handling. Weighing just 15.5 g, the Xaar 128/80W offers maximum reliability for coding & marking and industrial wide-format printing using solvent-based and oil-based inks.
Part Information
- Brand: Xaar plc
- Product Name: Xaar 128/80W Original OEM Printhead 80pL Binary Wetting
- Part Number / Reference: XJ128/80W
- Drop Mode & Volume: 80 pL Binary (Wetting Nozzle Plate)
- Technology: Piezoelectric Drop-on-Demand (DoD)
- Category: Xaar Printheads / 128 Series
- Ink Type Compatibility: Solvent-based, Oil-based inks
- Condition: 100% Genuine Original, Brand New, Factory Sealed
- Country of Origin: United Kingdom (UK)
Technical Specifications
| Specification Parameter | Details / Technical Values |
|---|---|
| Brand Manufacturer | Xaar plc |
| SKU / Reference | XJ128/80W |
| Active Nozzles | 128 active nozzles |
| Print Swathe Width | 17.4 mm |
| Nozzle Pitch & Density | 137.1–137.3 μm | 185 npi |
| Drop Volume & Velocity | 80 pL | 5 m/s |
| Firing Frequency & Mode | Up to 5.5 kHz | Binary |
| Nozzle Plate Feature | Wetting nozzle plate (Enhanced fluid maintenance) |
| Dry Weight & Dimensions | 15.5 g | 38 x 12 x 41 mm (W x D x H) |
| Ink Compatibility | Solvent and Oil-based ink formulations |
Master Comparison Matrix (Xaar 126 & 128 Series)
| Product Name | Reference Model | Drop Mode | Drop Volume | Ink / Feature Focus |
|---|---|---|---|---|
| Xaar 126/35 Original OEM Printhead 35pL Binary | XJ126/35 | Binary | 35 pL | Solvent, Oil (Fine Detail Graphics) |
| Xaar 126/50 Original OEM Printhead 50pL Binary | XJ126/50 | Binary | 50 pL | Solvent, Oil (Standard Wide Format) |
| Xaar 126/80 Original OEM Printhead 80pL Binary | XJ126/80 | Binary | 80 pL | Solvent, Oil (Heavy Coverage / Outdoor) |
| Xaar 128/40 Original OEM Printhead 40pL Binary | XJ128/40 | Binary | 40 pL | Solvent, Oil, Dye-Sub (Standard Detail) |
| Xaar 128/40W Original OEM Printhead 40pL Binary Wetting | XJ128/40W | Binary (Wetting) | 40 pL | Solvent, Oil (Enhanced Wetting internal fluid handling) |
| Xaar 128/80 Original OEM Printhead 80pL Binary | XJ128/80 | Binary | 80 pL | Solvent, Oil (High Speed Outdoor Signage) |
| ★ Xaar 128/80W Original OEM Printhead 80pL Binary Wetting (This Product) | XJ128/80W | Binary (Wetting) | 80 pL | Solvent, Oil (Enhanced Internal Wetting / Coding & Marking) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting cables.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models |
|---|---|
| Xaar / Industrial Integration | Coding and marking systems; wide-format printers designed for Xaar 128/80W wetting variant; industrial solvent and oil-based platforms supporting Xaar 128 series. |
Terms, Warranty & Customer Protection
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.
XJ128/80W
457 Items
