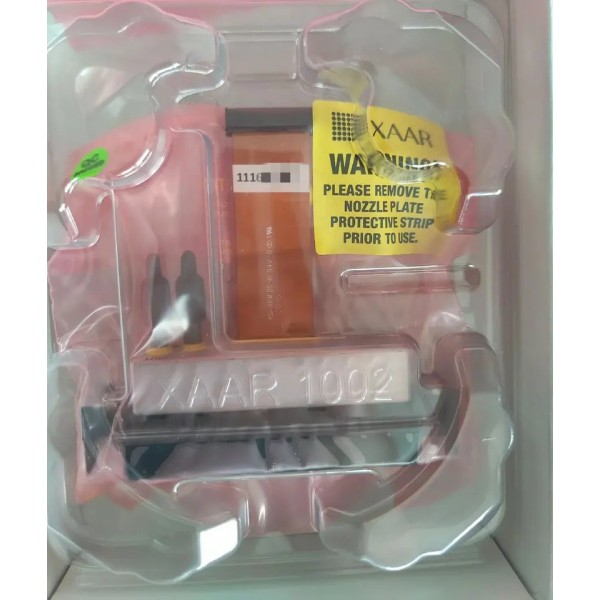

Xaar 1002 GS40 Original OEM Printhead 40pL Greyscale

Xaar 1002 GS40 Original OEM Printhead 40pL Greyscale

Write a review

$850.00

Genuine Xaar factory-original 1002 GS40 piezo printhead with 1000 nozzles and 40 pL native drop. High-laydown greyscale head with TF Technology for intense colour, special effects and industrial UV/oil applications.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Xaar 1002 GS40 is a Hybrid Side Shooter piezoelectric printhead with 1000 active nozzles in two rows spanning a 70.5 mm print swathe at 360 npi. It supports greyscale operation with native 40 pL drops (up to 5 grey levels, effective volumes 40–160 pL). TF Technology provides continuous recirculation for reliable performance with heavily pigmented or high-viscosity fluids. Optimised for UV and oil-based inks requiring high ink laydown. Factory-sealed original units ensure authenticity.

Part Information

Brand: Xaar plc
Product Name: Xaar 1002 GS40 Original OEM Printhead 40pL Greyscale
Part Number / Reference: Xaar 1002 GS40
Specific Variant: GS40 (Native 40 pL High-Deposit Greyscale)
Technology: Hybrid Side Shooter Piezoelectric Drop-on-Demand (DoD)
Recirculation Mode: TF Technology™ (Continuous Ink Recirculation)
Category: Xaar Printheads / 1002 Series
Ink Type Compatibility: UV-curable and Oil-based Inks (Heavily Pigmented / High Viscosity)
Condition: 100% Genuine Original, Brand New, Factory Sealed
Country of Origin: United Kingdom (UK)

Technical Specifications

Specification Parameter	Details / Technical Values
Brand Manufacturer	Xaar plc
Active Nozzles & Rows	1000 active nozzles (2 parallel rows of 500)
Print Swathe Width & Density	70.5 mm swathe width \| 360 npi (nozzles per inch)
Native Drop Volume & Greyscale	40 pL native (up to 5 grey levels, effective range 40–160 pL)
Drop Velocity & Firing Frequency	Approx. 5.0 m/s \| 6.0 kHz typical firing frequency
Continuous Recirculation (TF Technology)	Yes (Integrated Through-Flow continuous ink recirculation)
Physical Dimensions & Dry Weight	Approx. 125 x 30 x 60 mm (W x D x H) \| Approx. 144 g
Ink Chemistry Compatibility	UV-curable and Oil-based inks (High laydown / High viscosity)

Master Comparison Matrix (Xaar 100x Series)

Product Name	Reference Model	Drop Mode	Drop Volume	Ink / Application Focus
Xaar 1001 GS12 Original OEM Printhead 12pL Greyscale	Xaar 1001 GS12	Greyscale (8 Level)	12 pL (12–84 pL)	Solvent, Oil, UV (Industrial Print)
Xaar 1001 GS6 Original OEM Printhead 6pL Greyscale	Xaar 1001 GS6	Greyscale (8 Level)	6 pL (6–42 pL)	Solvent, Oil (Fine Detail, Labels)
Xaar 1002 GS6 Original OEM Printhead 6pL Greyscale	Xaar 1002 GS6	Greyscale (8 Level)	6 pL (6–42 pL)	Solvent, Oil, UV (High Precision)
Xaar 1002 GS12 Original OEM Printhead 12pL Greyscale	Xaar 1002 GS12	Greyscale (8 Level)	12 pL (12–84 pL)	Solvent, Oil, UV (Versatile Industrial)
Xaar 1002 AMp Original OEM Printhead AMp Binary	Xaar 1002 AMp	Binary / Small Drop	1.5–3 pL (Ultra-Fine)	Aqueous Fluids, Micro-manufacturing
★ Xaar 1002 GS40 Original OEM Printhead 40pL Greyscale (This Product)	Xaar 1002 GS40	Greyscale High Deposit	40 pL (40–160 pL)	Heavy Coverage, Ceramics, Coatings
Xaar 1003 GS6 Original OEM Printhead 6pL Greyscale	Xaar 1003 GS6	Greyscale + XaarGuard	6 pL (6–42 pL)	Solvent, Oil (Flagship High Precision)
Xaar 1003 GS12 Original OEM Printhead 12pL Greyscale	Xaar 1003 GS12	Greyscale + XaarGuard	12 pL (12–84 pL)	High Performance Universal Standard
Xaar 1003 AMp Original OEM Printhead AMp	Xaar 1003 AMp	Advanced Manufacturing	1.5–3 pL (Pico-drop)	Optoelectronics, Semiconductors
Xaar 1003 AMx Original OEM Printhead AMx	Xaar 1003 AMx	Advanced Manufacturing	1.5–12 pL (Modulated)	3D Additive & Micro-Structures
Xaar 1003 GS6U Original OEM Printhead 6pL Greyscale UV	Xaar 1003 GS6U	Greyscale UV Specific	6 pL (6–42 pL)	UV-Curable Inks (Fine Text, Labels)
Xaar 1003 GS12U Original OEM Printhead 12pL Greyscale UV	Xaar 1003 GS12U	Greyscale UV Specific	12 pL (12–84 pL)	UV-Curable Inks (Standard Industrial)
Xaar 1003 GS40 Original OEM Printhead 40pL Greyscale	Xaar 1003 GS40	Greyscale High Deposit	40 pL (40–160 pL)	Heavy Inks, Ceramics, Thick Coatings
Xaar 1003 GS12C Original OEM Printhead 12pL Greyscale Ceramics	Xaar 1003 GS12C	Greyscale Ceramic Specific	12 pL (12–84 pL)	Ceramic Inks / Highly Abrasive Media

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts.
Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting cables.
Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard protocols.

Compatible Models & Systems

Brand / Integration	Compatible Models
Xaar	Industrial inkjet systems designed for Xaar 1002 GS40; UV and oil-based platforms requiring high ink volumes; single-pass and wide-format printers supporting Xaar 1002 series

Terms, Warranty & Customer Protection

Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.

Reference Xaar 1002 GS40

In stock 450 Items
