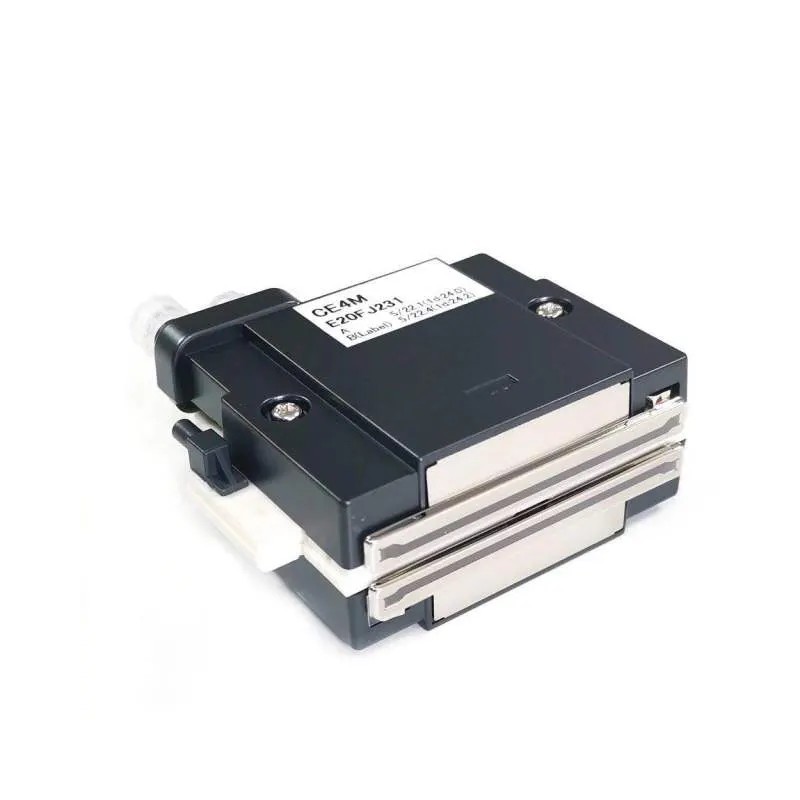

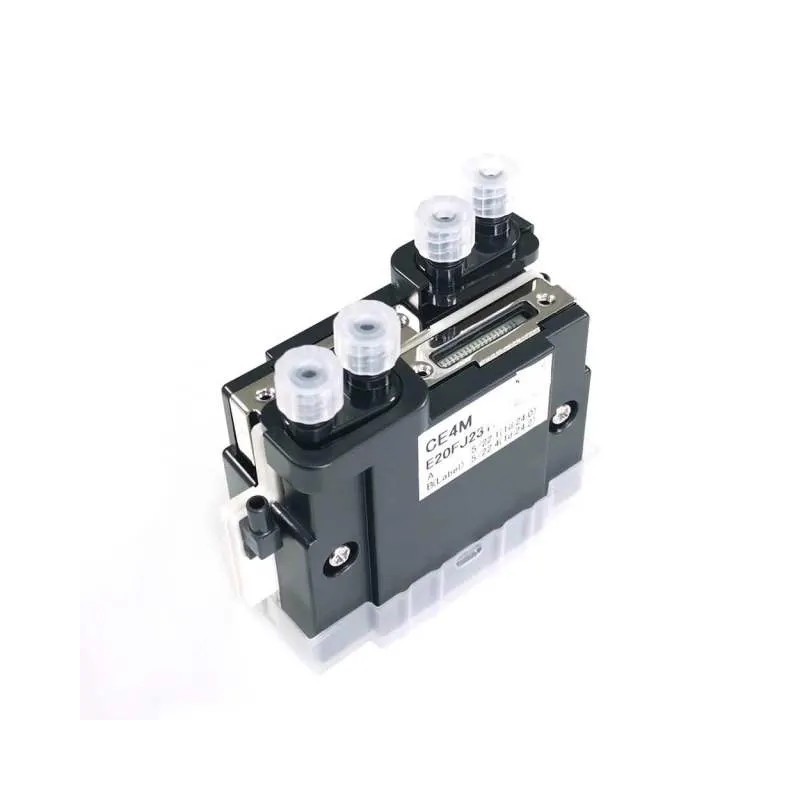

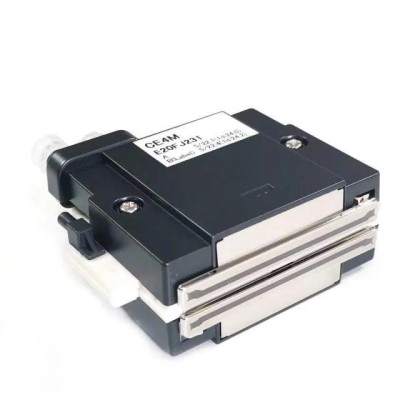

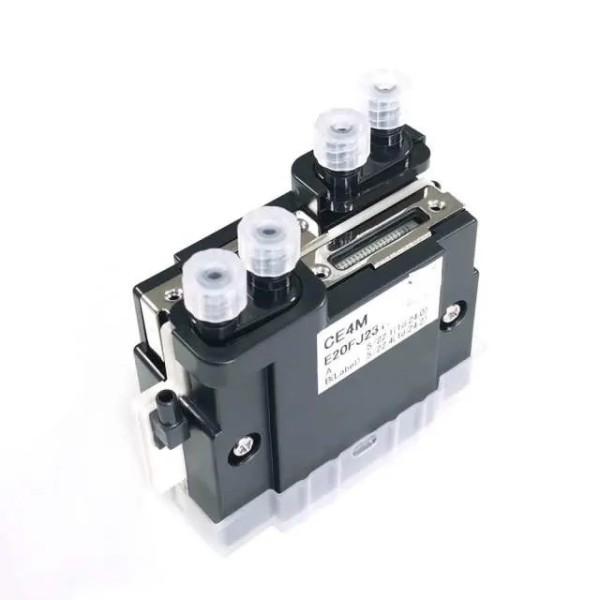

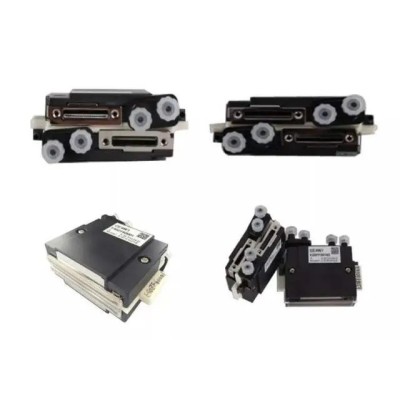

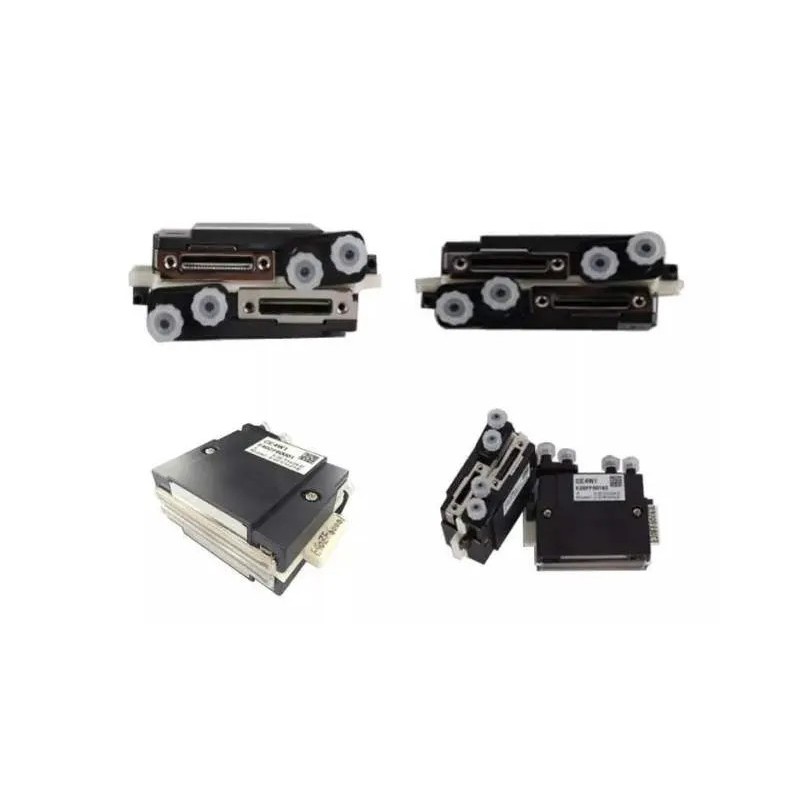

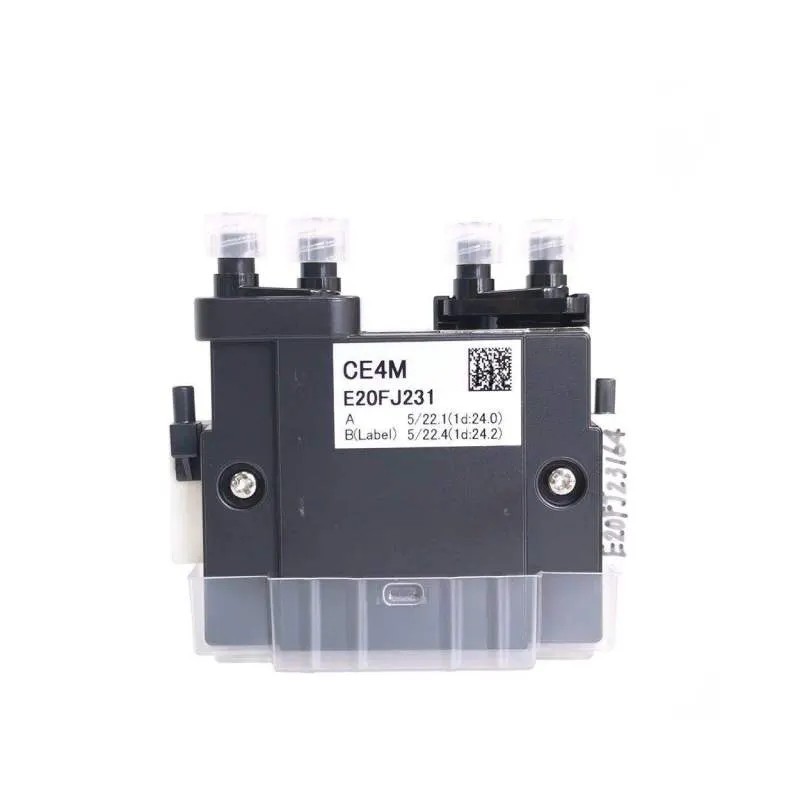

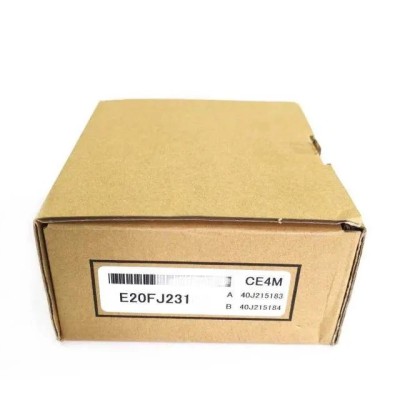

Toshiba TEC CE4W Original OEM Printhead Water-Cooled Standard
- Write a review
$872.00
The Toshiba TEC CE4W is the standard water-cooled multi-drop greyscale printhead with 636 nozzles and 6-90 pL range, offering enhanced thermal stability for industrial printing.
Toshiba TEC CE4W Original OEM Printhead Water-Cooled Standard
The Toshiba TEC CE4W (commonly listed as CE4W1) is the water-cooled / water-channel standard version of the CE4 multi-drop greyscale industrial inkjet printhead. It is designed for high-quality industrial printing applications requiring stable thermal control during continuous operation.
The printhead features 636 active nozzles across a 53.7 mm print swathe, with a nozzle pitch of 84.5 μm. Multi-drop greyscale technology delivers 16 levels of grey with a drop volume range of 6–90 pL. Typical firing frequency spans 2.8–28 kHz. The chassis incorporates a built-in water channel and complete sealing for easy and uniform temperature control.
It is equipped with four ink inlet ports and is compatible with both oil-based pigment and UV-curable pigment inks. The CE4W is supplied with head ID, voltage and waveform information and is widely used in industrial UV flatbed and hybrid systems.
Note: The CE4M is often listed as a compatible alternative in some systems. Always verify the exact part marking on the existing printhead and the machine documentation before ordering.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CE4W Original OEM Printhead Water-Cooled Standard |
| Manufacturer | Toshiba TEC |
| Exact Model | CE4W / CE4W1 |
| Model Family | Toshiba TEC CE4 Series |
| OEM Part Number | CE4W1 (common commercial designation) |
| Known Related Variants | CE4, CE4M, CE4N |
| Known Alias | Toshiba TEC CE4W1 Water-Channel Printhead |
| Ink Type | Oil-based pigment ink and UV-curable pigment ink |
| Product Status | Available as genuine OEM / industrial supply |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | Industrial UV flatbed and hybrid systems requiring water-channel thermal control |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | Multi-drop grayscale micro-piezo |
| Active Nozzles | 636 |
| Print Swathe Width | 53.7 mm |
| Nozzle Pitch | 84.5 μm |
| Native Resolution | 150 dpi |
| Maximum Resolution | 300 dpi |
| Drop Volume | 6 – 90 pL |
| Grayscale Levels | 16 levels |
| Typical Firing Frequency | 2.8 – 28 kHz |
| Cooling / Thermal Control | Built-in water channel with complete sealing |
| Ink Inlets | 4 ports |
| Ink Compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Dimensions | 85 × 70 × 23 mm |
| Weight | 148 g |
Related CE4 Series Variants
| Model | Nozzles | Drop Volume | Thermal Control | Notes |
|---|---|---|---|---|
| CE4W / CE4W1 (Current) | 636 | 6–90 pL | Water channel | Water-cooled standard multi-drop version |
| CE4M | 636 | 5–35 pL (typical) | Water channel | Often listed as compatible alternative |
| CE4 / CE4N | 636 or 318 | 6–90 pL | Varies | Standard or Mimaki-specific assemblies |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer manufacturer. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Water Channel: The CE4W includes a built-in water channel. Ensure the cooling circuit is correctly connected and operating within specification before jetting.
- Cable Recommendation: It is recommended to replace the printhead data cables when installing a new head.
- Ink Compatibility: Use only oil-based pigment or UV-curable pigment inks approved for the specific system. Non-approved fluids can damage the head.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Variant Note: Confirm whether your system requires CE4W / CE4W1 specifically, or whether CE4M is listed as an acceptable alternative in the service documentation.
Compatible Models & Systems
The Toshiba TEC CE4W / CE4W1 is used in a range of industrial UV systems, including selected models from the following platforms:
- Galaxy UD series (UD-18C8AC, UD-32C8AB, UD-25C8AC, UD-32C8AC and related variants)
- HAE series (HAE-3020, HAE-2513UV, HAE-1610UV, HAE-6090UV)
- Selected Icontek and other OEM UV flatbed / hybrid systems
Recommendation: Always cross-check the part number or marking on the existing printhead and consult the machine service documentation before ordering. Compatibility can vary by specific configuration and firmware.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
