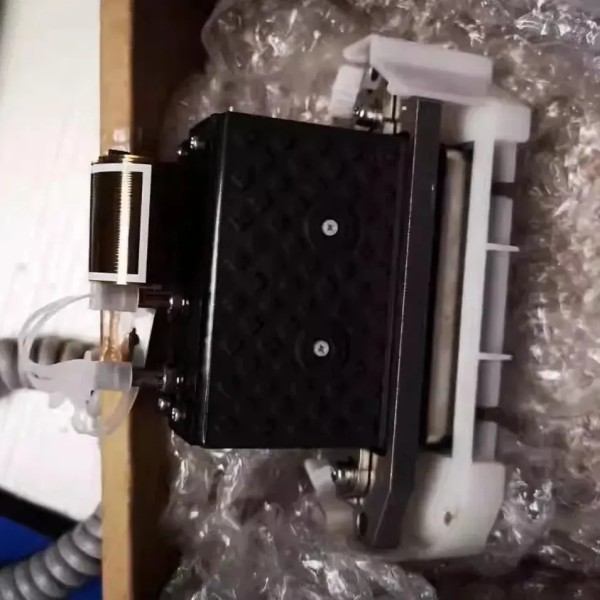

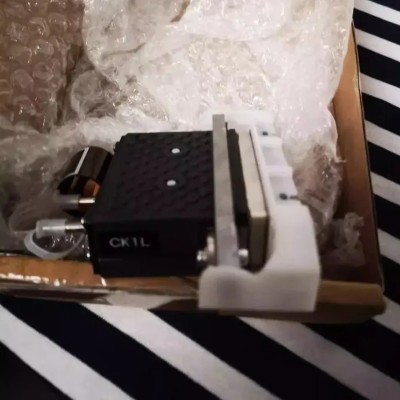

Toshiba TEC CK1L Original OEM Printhead Large Drop Recirculating
- Write a review
$780.00
The Toshiba TEC CK1L is the large-drop recirculating variant with 636 nozzles, 51-90 pL drops and full-channel recirculation. Optimised for high-laydown single-pass ceramics, labels and packaging.
Product Overview
The Toshiba TEC CK1L Original OEM Printhead delivers high-laydown performance with 636 nozzles and drop volumes of 51-90 pL at 300 dpi. Full-channel recirculation ensures exceptional jetting reliability and automatic nozzle recovery, making it ideal for single-pass ceramic decoration, labels and packaging. Operating at up to 4.8 kHz and 24 m/min linear speed, it combines productivity with consistent quality across UV-curable and oil-based fluids.
Part Information
- Brand: Toshiba TEC
- Product Name: Toshiba TEC CK1L Original OEM Printhead Large Drop Recirculating
- Part Number / Reference: CK1L
- Category: Toshiba Printheads
- Condition: 100% Genuine Original, Brand New, Factory Sealed
Technical Specifications
| Specification Parameter | Details / Technical Values |
|---|---|
| Brand Manufacturer | Toshiba TEC |
| SKU / Reference | CK1L |
| Product Details | Active Nozzles: 636; Print Swathe Width: 53.7 mm; Resolution: 300 dpi / 84.5 μm; Drop Volume: 51 to 90 pL; Greyscale Levels: 4 levels (0.5-7 dpd); Firing Frequency: 4.8 kHz (max dpd); Linear Speed: 24 m/min; Ink Compatibility: UV-curing and oil-based; Dimensions: 94 x 79 x 26 mm; Weight: 161 g; Technology: Full-channel ink recirculation |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting cables.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models |
|---|---|
| Toshiba TEC | EFI Cretaprint ceramic systems; single-pass industrial printers |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.
