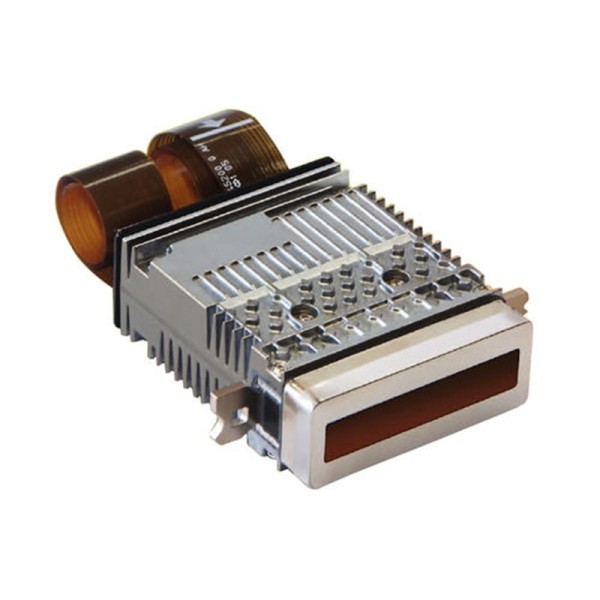

Toshiba TEC CF6 Original Recirculating Industrial Inkjet Printhead 6pL High-Speed
- Write a review
$1,750.00
Genuine Toshiba TEC factory-original CF6 recirculating piezo printhead with 1278 nozzles, native 6 pL and up to 12 kHz. Faster drop-in replacement for CF3 with full-channel recirculation for UV and oil-based printing.
Toshiba TEC CF6 Original Recirculating Industrial Inkjet Printhead 6pL High-Speed
The Toshiba TEC CF6 is a high-speed evolution of the CF3 recirculating industrial inkjet printhead. It retains full ink recirculation through all channels and the 600 npi architecture while delivering significantly higher productivity through an increased firing frequency and optimised multi-drop performance.
The CF6 produces a native drop volume of 6 pL and can fire up to three drops to achieve 12 pL and 18 pL. It operates with 4 greyscale levels (0–3 drops) at a maximum frequency of 12 kHz, making it up to 1.5 times faster than the CF3. In single-colour mode it provides 1,278 nozzles at 600 npi across a 53.95 mm print width; dual-colour configuration yields 300 npi per colour.
Full recirculation through every channel ensures high jetting reliability, supports UV-curable and oil-based inks, and enables stable performance with higher-viscosity or particle-laden fluids. The CF6 is designed as a drop-in replacement for the CF3, sharing identical dimensions, electrical connections and fluid interfaces, allowing straightforward upgrades of existing systems.
The air-cooled CF6 is intended for high-speed industrial single-pass and scan-based applications including labels, packaging, corrugated, coding, signs & graphics and other productivity-focused industrial printing.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CF6 Original Recirculating Industrial Inkjet Printhead 6pL High-Speed |
| Manufacturer | Toshiba TEC / RISO Technologies |
| Exact Model | CF6 |
| Model Family | Toshiba TEC CF6 Series (CF6 / CF6R) |
| OEM Part Number | CF6 |
| Known Replacement / Related Numbers | Related water-cooled variant: CF6R; designed as drop-in upgrade for CF3 / CF3R |
| Known Alias | Toshiba TEC CF6 High-Speed Recirculating Printhead, CF6 6 pL |
| Ink Type | UV-curable, oil-based (consult for specific fluid compatibility) |
| Product Status | Available as genuine OEM / industrial supply |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan |
| Industrial Application | High-speed single-pass and scan-based industrial printing: labels, packaging, corrugated, coding, signs & graphics |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | On-Demand Piezoelectric with full ink recirculation through all channels |
| Recirculation | Yes – through all channels |
| Active Nozzles (1 colour) | 1,278 |
| Active Nozzles (2 colours) | 639 × 2 |
| Nozzle Arrangement | 2 rows (laterally offset) |
| Nozzle Resolution | 600 npi (1 colour) / 300 npi × 2 colours |
| Print Swathe Width | 53.95 mm (1 colour) / 53.91 mm (2 colours) |
| Native Drop Volume | 6 pL |
| Multi-drop Volumes | 12 pL / 18 pL (up to 3 drops) |
| Grayscale Levels | 4 levels (0 – 3 drops) |
| Firing Frequency | 12 kHz (at 3 drops) |
| Cooling Method | Air cooling (CF6); water-cooled variant available as CF6R |
| Ink Compatibility | UV-curable and oil-based fluids |
| Dimensions (W × D × H) | 96.7 × 29.3 × 100.7 mm |
| Weight | 255 g |
| Built-in Temperature Sensor | Yes |
Master Comparison Matrix – Toshiba TEC CF3 / CF6 Series
| Model | Nozzles | Resolution | Drop Volume | Frequency | Cooling | Relative Speed |
|---|---|---|---|---|---|---|
| CF3 | 1,278 | 600 npi | 3–20 pL | 9.2 kHz | Air | Baseline |
| CF6 (Current) | 1,278 | 600 npi | 6–18 pL | 12 kHz | Air | Up to 1.5× CF3 |
| CF6R | 1,278 | 600 npi | 6–18 pL | 12 kHz | Water | Up to 1.5× CF3 |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer and printhead manufacturers. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Drop-in Compatibility: The CF6 is designed as a direct replacement for the CF3. Verify that the existing drive electronics and firmware support the higher frequency and updated waveform before upgrading.
- Recirculation System: Full ink recirculation through all channels must be correctly configured. Ensure flow rate, meniscus pressure and temperature control remain within specification.
- Ink Compatibility: Use only UV-curable or oil-based fluids verified for the CF6. Confirm compatibility when changing from CF3 fluids.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Drive Electronics: Confirm waveform and drive voltage match the CF6 requirements. Incorrect electronics or outdated firmware may prevent full performance or damage the head.
Compatible Models & Systems
The Toshiba TEC CF6 is designed as a high-speed drop-in upgrade for systems originally built around the CF3 / CF3R. It is used in industrial single-pass and scan-based applications requiring higher productivity, including labels, packaging, corrugated, coding, signs & graphics and other high-speed industrial printing.
Because the CF6 shares the same mechanical envelope, electrical interface and fluid connections as the CF3, many existing CF3-based platforms can be upgraded without mechanical redesign. Drive electronics and firmware must, however, support the higher firing frequency and updated waveforms.
Recommendation: Confirm compatibility of the existing drive electronics, recirculation system and ink chemistry before ordering. Do not assume full interchangeability with CF1-series or non-recirculating heads.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
