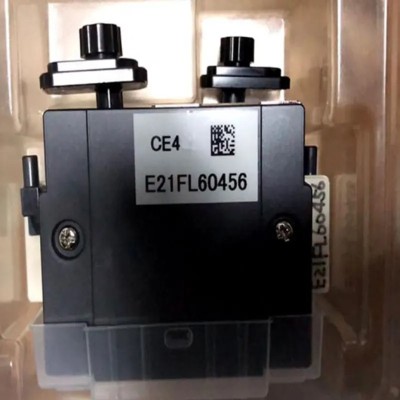

Toshiba TEC CE4 Original OEM Printhead Multi-Drop Greyscale
- Write a review
$912.00
The Toshiba TEC CE4 is a standard multi-drop greyscale piezo printhead with 636 nozzles delivering 6-90 pL drops at native 300 dpi. It supports oil-based and UV-curable inks with built-in thermal control for reliable industrial and wide-format printing.
Toshiba TEC CE4 Original OEM Printhead Multi-Drop Greyscale
The Toshiba TEC CE4 is an original OEM multi-drop greyscale industrial inkjet printhead designed for high-quality industrial printing applications. It features higher nozzle density with 636 channels, delivering a printable width of 53.7 mm at 300 dpi native resolution (channel pitch 84.5 μm).
Unique multi-drop technology allows jetting of multiple drops onto a single dot, creating a wide greyscale range of up to 16 levels with drop volumes from a minimum of 6 pL to a maximum of 90 pL (15 drops). Standard firing frequencies reach 28 kHz at 1 drop, 6.2 kHz at 7 drops and 2.8 kHz at 15 drops. Linear speeds of up to 35 m/min (1 drop, 1200 dpi) or 31 m/min (7 drops, 300 dpi) are achievable.
The CE4 uses a ceramic chassis with a built-in water channel for stable thermal control and is compatible with both oil-based pigment and UV-curable pigment inks. It provides excellent dot placement accuracy and is widely used in industrial sign, display, UV flatbed and hybrid systems.
Always verify the exact part marking and machine documentation before ordering, as later variants (CE4M, CE4N, CE4W1) exist with different drop ranges or nozzle counts.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CE4 Original OEM Printhead Multi-Drop Greyscale |
| Manufacturer | Toshiba TEC |
| Exact Model | CE4 |
| Model Family | Toshiba TEC CE Series |
| OEM Part Number | CE4 (Toshiba TEC original) |
| Known Related Variants | CE4M, CE4N, CE4W1 |
| Known Alias | Toshiba TEC CE4 Multi-Drop Greyscale Printhead |
| Ink Type | Oil-based pigment ink and UV-curable pigment ink |
| Product Status | Available as genuine OEM / industrial supply |

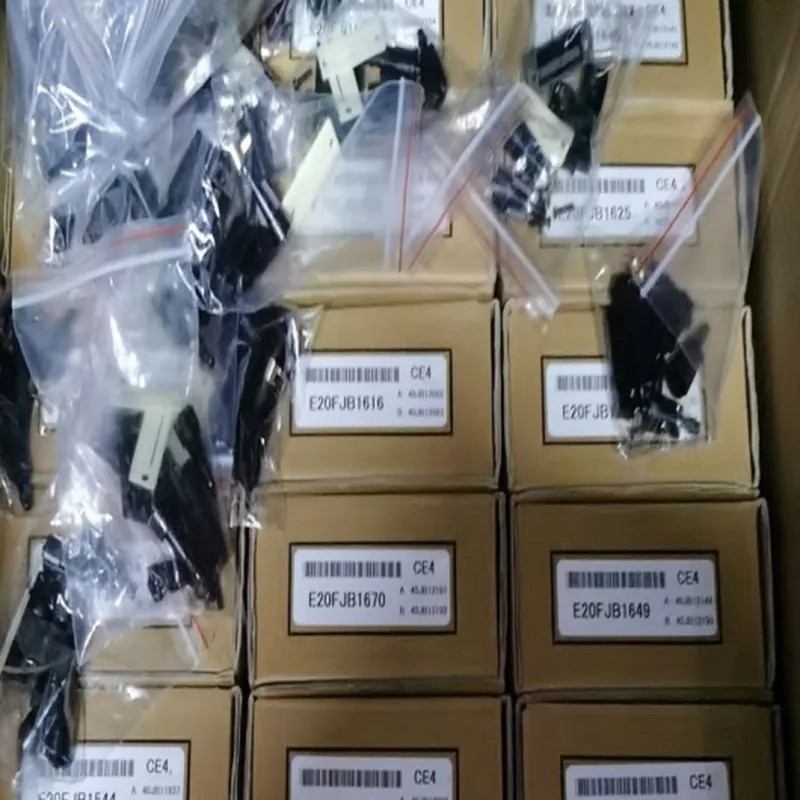

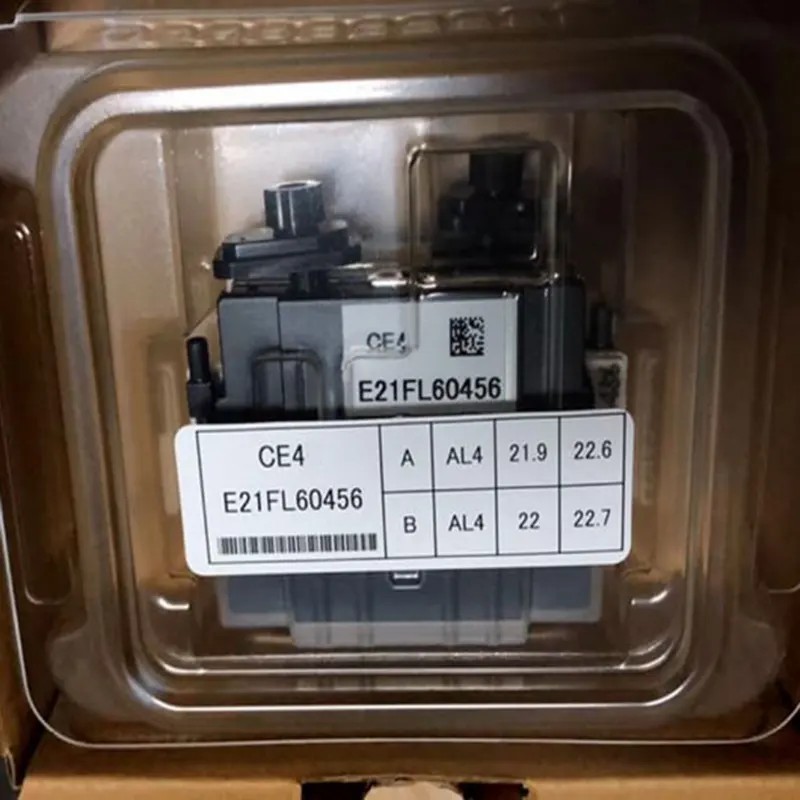

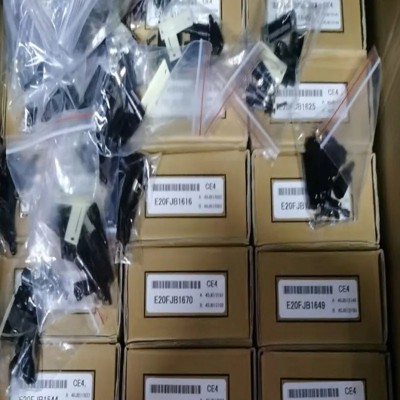

| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | Industrial sign, display, UV flatbed and hybrid printing requiring multi-drop greyscale performance |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | Multi-drop greyscale piezoelectric (on-demand) |
| Active Nozzles / Channels | 636 |
| Printable Width | 53.7 mm |
| Resolution / Channel Pitch | 300 dpi / 84.5 μm |
| Drop Volume | 6 – 90 pL |
| Grayscale Levels | 8 levels (standard) / 16 levels (maximum) |
| Standard Frequency | 28.0 kHz (1 drop) / 6.2 kHz (7 drops) / 2.8 kHz (15 drops) |
| Linear Speed (reference) | 35 m/min (1 drop, 1200 dpi) / 31 m/min (7 drops, 300 dpi) |
| Driving Voltage | 14 – 31 V |
| Thermal Control | Ceramic chassis with built-in water channel |
| Ink Compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Dimensions (W × D × H) | 85 × 75 × 34 mm |
| Weight | 174 g |
Related Variants Overview
| Model | Nozzles | Drop Volume | Grayscale | Notes |
|---|---|---|---|---|
| CE4 (Current) | 636 | 6–90 pL | 8 / 16 levels | Standard multi-drop CE4 platform |
| CE4M | 636 | 5–35 pL (typical) | 16 levels | Multi-drop refined version |
| CE4N | 318 | 6–90 pL | 16 levels | Mimaki-specific assembly (e.g. M018821) |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer manufacturer. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Water Channel: The CE4 incorporates a ceramic chassis with a built-in water channel. Ensure the cooling circuit is correctly connected and operating within specification.
- Ink Compatibility: Use only oil-based pigment or UV-curable pigment inks approved for the specific system. Non-approved fluids can damage the head.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Variant Verification: Confirm whether your system requires the standard CE4, CE4M, CE4N or another related code. Mechanical and fluid interfaces may differ between variants.
Compatible Models & Systems
The Toshiba TEC CE4 and its closely related variants are used in a wide range of industrial UV flatbed, hybrid and large-format systems, including selected EFI Rastek, Galaxy, HAE, Mimaki and other OEM platforms.
Exact printer model lists depend on the specific OEM configuration and part number. Compatibility must be confirmed against the machine’s service documentation or the system integrator’s specifications before ordering.
Recommendation: Always cross-check the part number or marking on the existing printhead. Do not assume interchangeability between CE4, CE4M, CE4N or CE4W1 without verification of the physical interface, electrical drive and thermal control requirements.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
