Océ Arizona 550 GT Printhead Kit CE2 Bond – Part 3W3010112660 (Original / Genuine Replacement)
- Write a review
$2,165.00
Arizona 550 GT Printhead CE2 Bond - 3W3010112660 Original Replacement
Arizona 550 GT Kit F/S Printhead CE2 Bond (3W3010112660) – Genuine Replacement

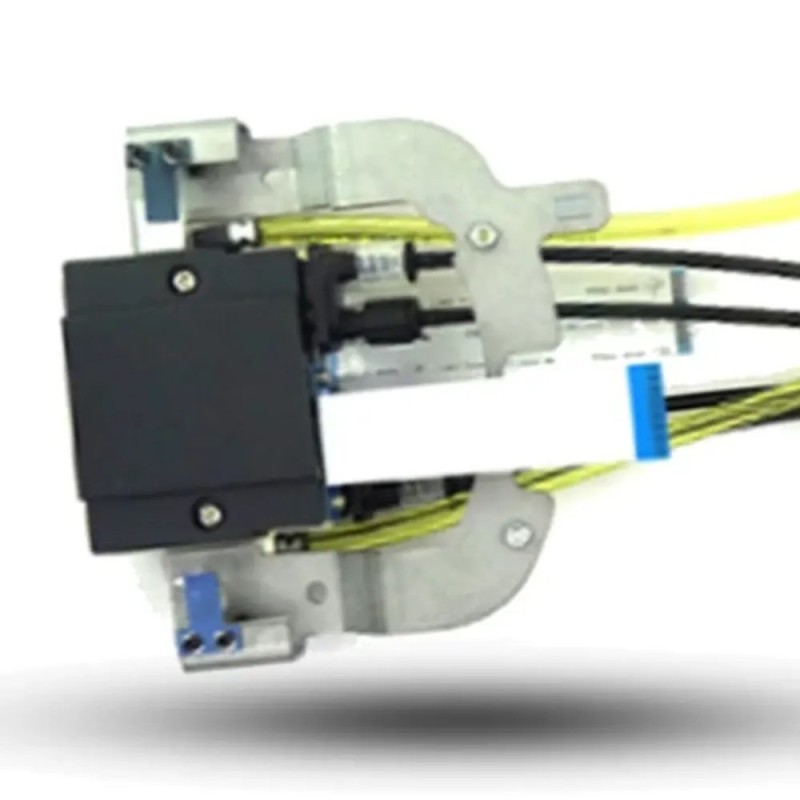

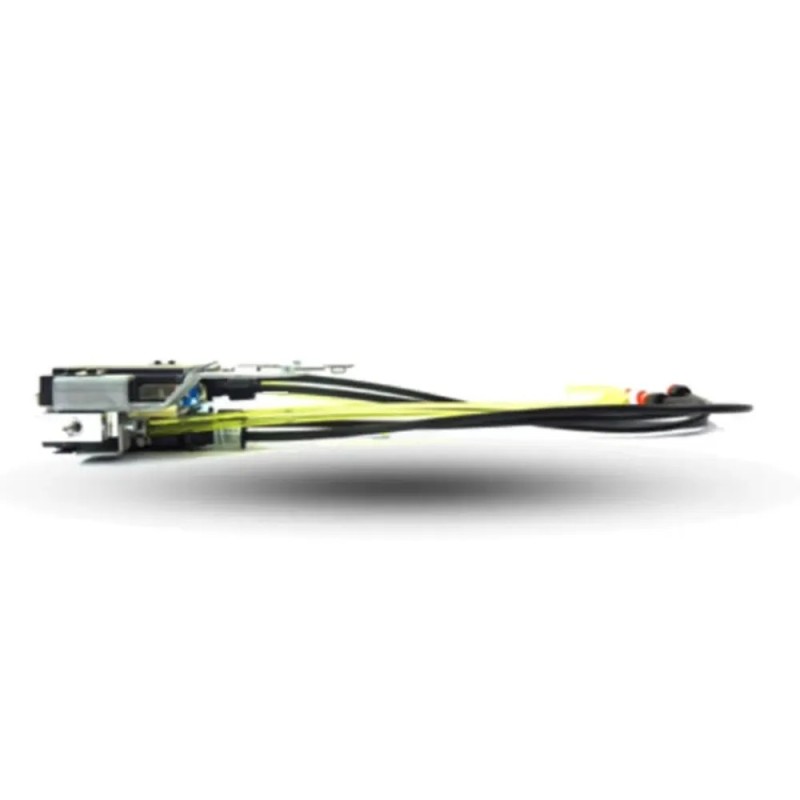

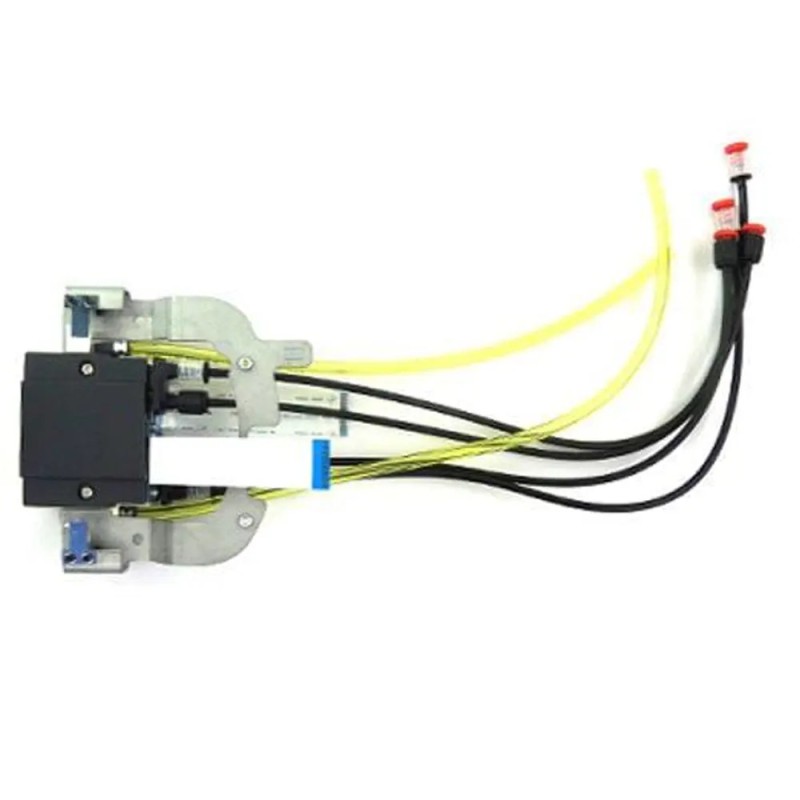

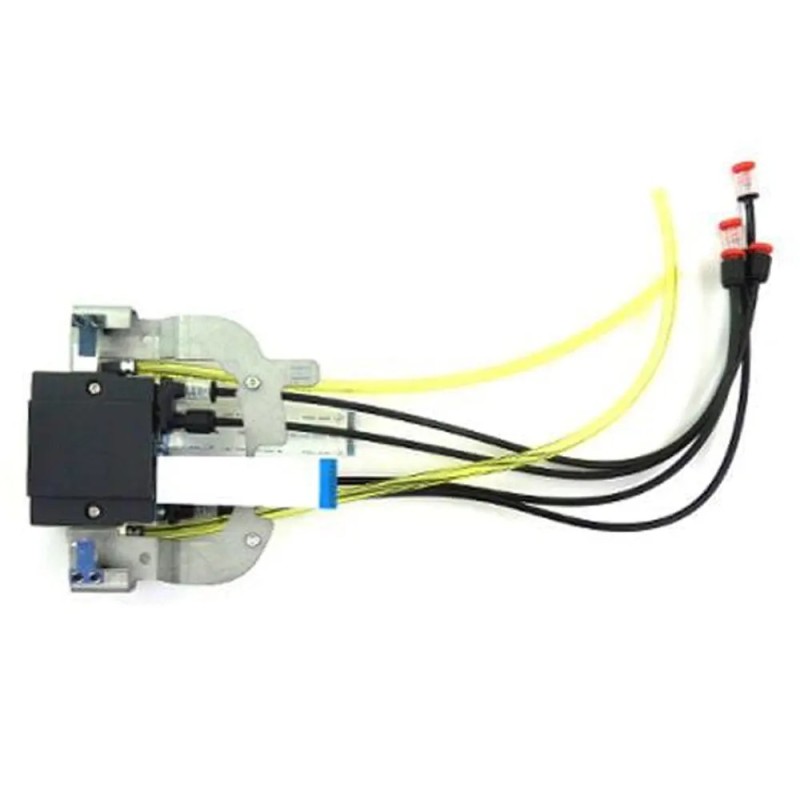

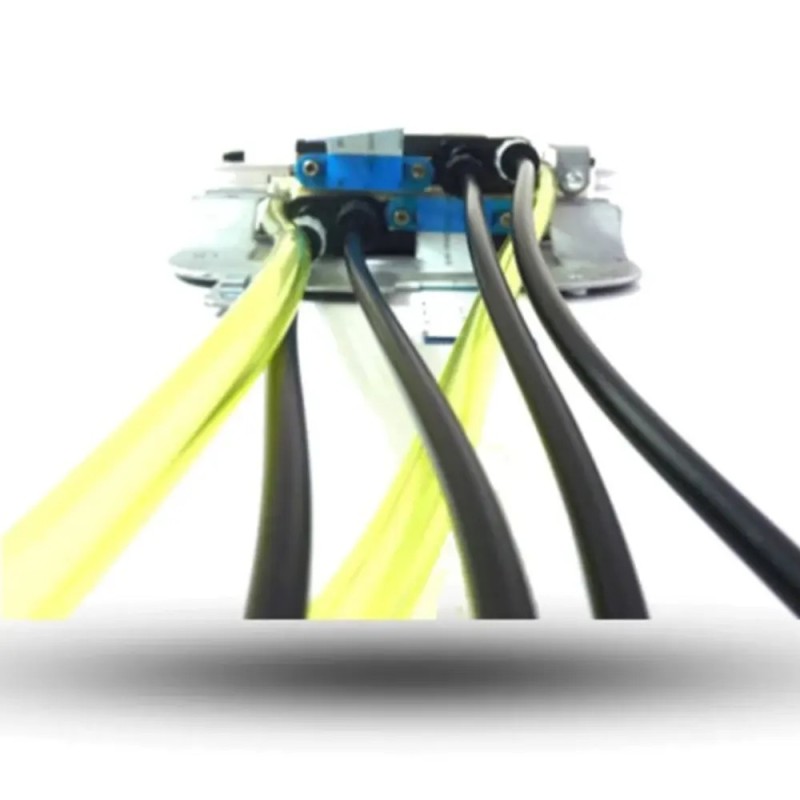

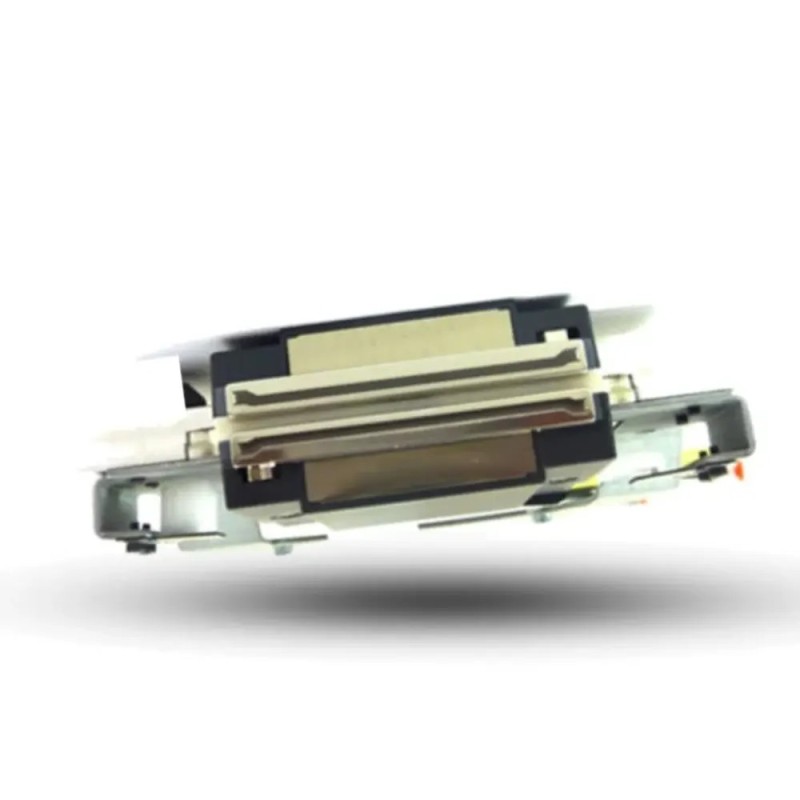

The Arizona 550 GT Kit F/S Printhead CE2 Bond (part number 3W3010112660) is an original OEM replacement printhead designed to maintain the performance of Océ Arizona 550 series and Fujifilm Acuity Advance HS HD3545 printers. It utilises Toshiba TEC CE2 multi-drop greyscale micro-piezo technology for precise, high-quality industrial printing.
This bonded printhead assembly features 636 active nozzles, a native resolution of 300 dpi and a print swathe width of 53.7 mm. Multi-drop greyscale capability delivers up to 16 levels, with a drop volume range of 6–90 pL and a typical firing frequency of 2.8–28 kHz. The head is compatible with both oil-based pigment inks and UV-curable pigment inks.
Measuring 85 × 74 × 33 mm and weighing 174 g, the CE2 Bond assembly is engineered for durability and consistent jetting performance in demanding UV flatbed environments. It is supplied as a complete kit suitable for field service replacement.
Always verify the part number on the existing printhead or in the machine documentation before ordering to ensure correct fitment and compatibility.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Arizona 550 GT Kit F/S Printhead CE2 Bond (3W3010112660) |
| Manufacturer | Toshiba TEC (Océ / Canon OEM assembly) |
| Exact Model | CE2 Bond |
| OEM Part Number | 3W3010112660 |
| Known Alias | Arizona 550 GT CE2 Bond Printhead, Kit F/S Printhead CE2 Bond |
| Ink Type | Oil-based pigment ink and UV-curable pigment ink |
| Product Status | Available as genuine OEM / original replacement |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | UV flatbed industrial printing on Océ Arizona 550 series and Fujifilm Acuity Advance HS platforms |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | Multi-drop grayscale micro-piezo |
| Active Nozzles | 636 |
| Print Swathe Width | 53.7 mm |
| Nozzle Pitch | 84.5 μm |
| Native Resolution | 300 dpi |
| Grayscale Levels | Up to 16 levels |
| Drop Volume | 6 – 90 pL |
| Firing Frequency | 2.8 – 28 kHz |
| Ink Compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Dimensions | 85 × 74 × 33 mm |
| Weight | 174 g |
Identification & Related Notes
| Reference | Description |
|---|---|
| 3W3010112660 (Current) | Genuine Océ Arizona 550 GT / Fujifilm Acuity Advance HS CE2 Bond printhead kit |
| Toshiba TEC CE2 | Core multi-drop greyscale technology used in this bonded assembly |
Note: This is a bonded CE2 assembly specifically configured for the Arizona 550 series. Do not assume interchangeability with standard CE4 or other CE-series heads without verification of the mounting, electrical interface and firmware requirements.
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official Océ / Canon or Fujifilm service procedures. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Cable Recommendation: Inspect and, if necessary, replace the printhead data cables when installing a new head.
- Ink Compatibility: Use only oil-based pigment or UV-curable pigment inks approved for the Arizona 550 / Acuity Advance HS system. Non-approved fluids can damage the head and void support.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Part Number Verification: Confirm that the original head or machine documentation shows 3W3010112660 before ordering.
Compatible Models & Systems
This genuine part number 3W3010112660 (CE2 Bond) is confirmed compatible with the following systems:
- Océ / Canon Arizona: 550 GT, 550 XT
- Fujifilm Acuity: Advance HS HD3545
Recommendation: Always cross-check the part number printed on the existing printhead or listed in the machine’s service documentation before ordering. Do not assume interchangeability with other CE-series or CA-series heads without verification of the physical interface, electrical drive and firmware.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
