Toshiba TEC CE4W1 Original OEM Printhead Water-Cooled Multi-Drop
- Write a review
$924.00
The Toshiba TEC CE4W1 is the water-cooled multi-drop greyscale version of the CE4 platform with 636 nozzles and 6-90 pL drop range. Built-in water channel provides enhanced thermal stability for continuous industrial UV and oil-based printing.

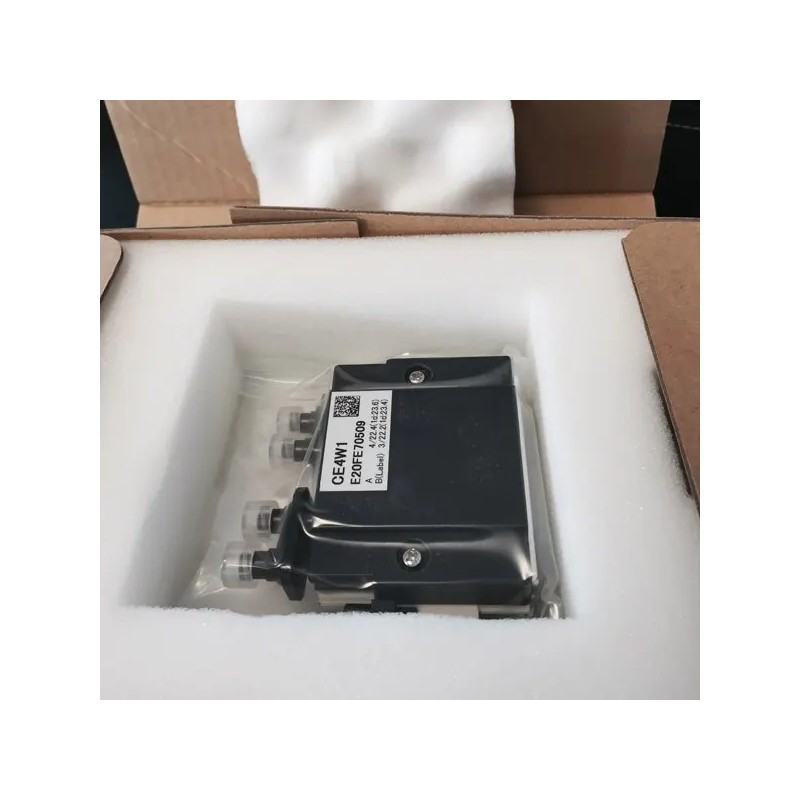

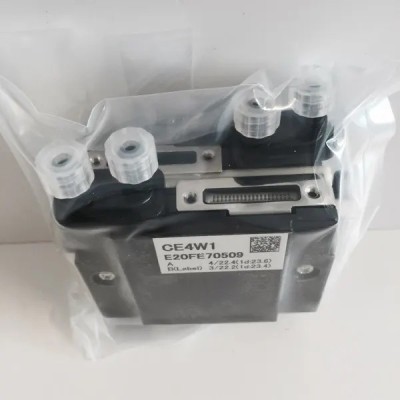

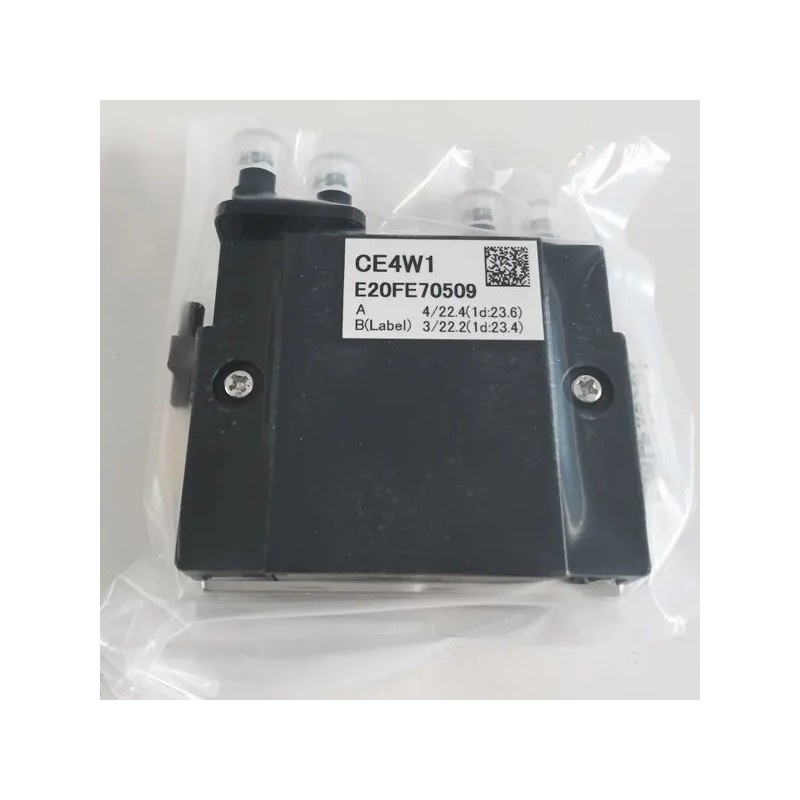

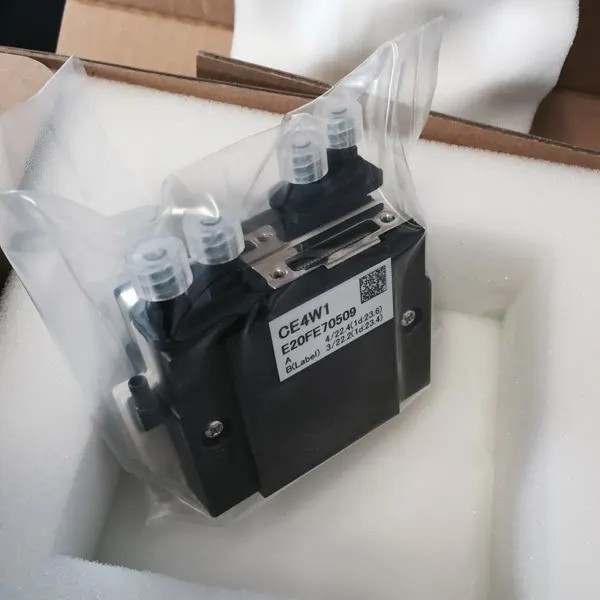

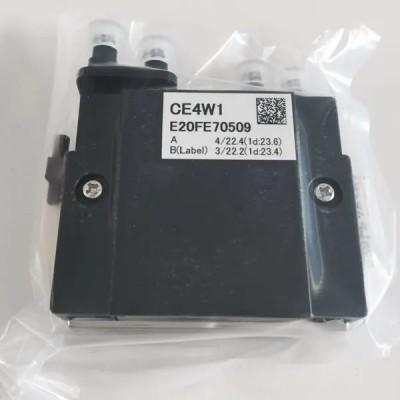

Toshiba TEC CE4W1 Original OEM Printhead Water-Cooled Multi-Drop
The Toshiba TEC CE4W1 is the original OEM water-cooled multi-drop greyscale industrial inkjet printhead from the CE4 family. It is designed for high-quality industrial printing applications that require stable thermal control and wide greyscale performance.
The printhead features 636 active nozzles across a 53.7 mm print swathe with a nozzle pitch of 84.5 μm. Multi-drop technology enables 16 levels of greyscale with a drop volume range of 6–90 pL. Typical firing frequency spans 2.8–28 kHz. The chassis incorporates a built-in water channel with complete sealing for uniform temperature distribution and stable jetting.
It is equipped with four ink inlet ports and is compatible with both oil-based pigment and UV-curable pigment inks. Genuine units are supplied with head ID, voltage and waveform information. The CE4W1 is widely used in industrial UV flatbed and hybrid systems and is often noted as compatible with the later CE4M in certain configurations.
Always verify the exact part marking on the existing printhead and the machine service documentation before ordering to ensure correct compatibility.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CE4W1 Original OEM Printhead Water-Cooled Multi-Drop |
| Manufacturer | Toshiba TEC |
| Exact Model | CE4W1 |
| Model Family | Toshiba TEC CE4 Series |
| OEM Part Number | CE4W1 |
| Known Related Variants | CE4, CE4M, CE4N, CE4W |
| Known Alias | Toshiba TEC CE4W1 Water-Channel Multi-Drop Printhead |
| Ink Type | Oil-based pigment ink and UV-curable pigment ink |
| Product Status | Available as genuine OEM / industrial supply |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | Industrial UV flatbed and hybrid systems requiring water-channel thermal control and 16-level multi-drop greyscale |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | Multi-drop grayscale micro-piezo |
| Active Nozzles | 636 |
| Print Swathe Width | 53.7 mm |
| Nozzle Pitch | 84.5 μm |
| Native Resolution | 150 dpi |
| Maximum Resolution | 300 dpi |
| Drop Volume | 6 – 90 pL |
| Grayscale Levels | 16 levels |
| Typical Firing Frequency | 2.8 – 28 kHz |
| Cooling / Thermal Control | Built-in water channel with complete sealing |
| Ink Inlets | 4 ports |
| Ink Compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Dimensions | 85 × 70 × 23 mm |
| Weight | 148 g |
Related CE4 Series Variants
| Model | Nozzles | Drop Volume | Thermal Control | Notes |
|---|---|---|---|---|
| CE4W1 (Current) | 636 | 6–90 pL | Water channel | Water-cooled multi-drop standard version |
| CE4M | 636 | 5–35 pL (typical) | Water channel | Often listed as compatible alternative |
| CE4 / CE4N | 636 or 318 | 6–90 pL | Varies | Standard or Mimaki-specific assemblies |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer manufacturer. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Water Channel: The CE4W1 includes a built-in water channel. Ensure the cooling circuit is correctly connected and operating within specification before jetting.
- Cable Recommendation: It is recommended to replace the printhead data cables when installing a new head to avoid intermittent connection issues.
- Ink Compatibility: Use only oil-based pigment or UV-curable pigment inks approved for the specific system. Non-approved fluids can damage the head.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Head ID & Waveform: Genuine CE4W1 units are supplied with head ID, voltage and waveform information. These must be correctly programmed into the printer controller.
Compatible Models & Systems
The Toshiba TEC CE4W1 is used in a range of industrial UV systems, including selected models from the following platforms:
- Galaxy UD series (UD-18C8AC, UD-32C8AB, UD-25C8AC, UD-32C8AC and related variants)
- HAE series (HAE-3020, HAE-2513UV, HAE-1610UV, HAE-6090UV)
- Selected Icontek and other OEM UV flatbed / hybrid systems
Recommendation: Always cross-check the part number or marking on the existing printhead and consult the machine service documentation before ordering. In some systems the CE4M is listed as a compatible alternative — confirm before substitution.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
CE4W1
342 Items
